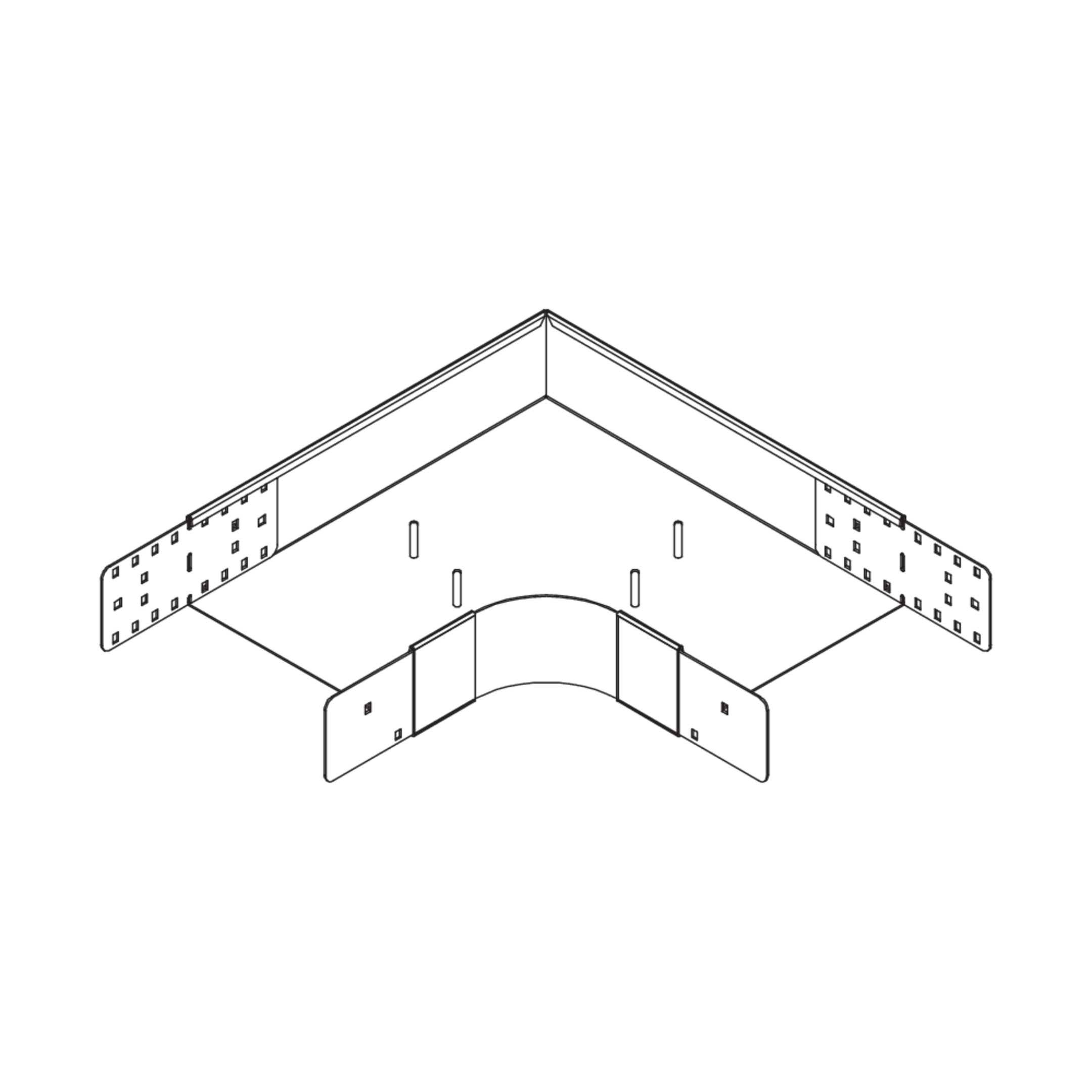

BKBR 100

Floor duct bend with radius, height = 100 mm

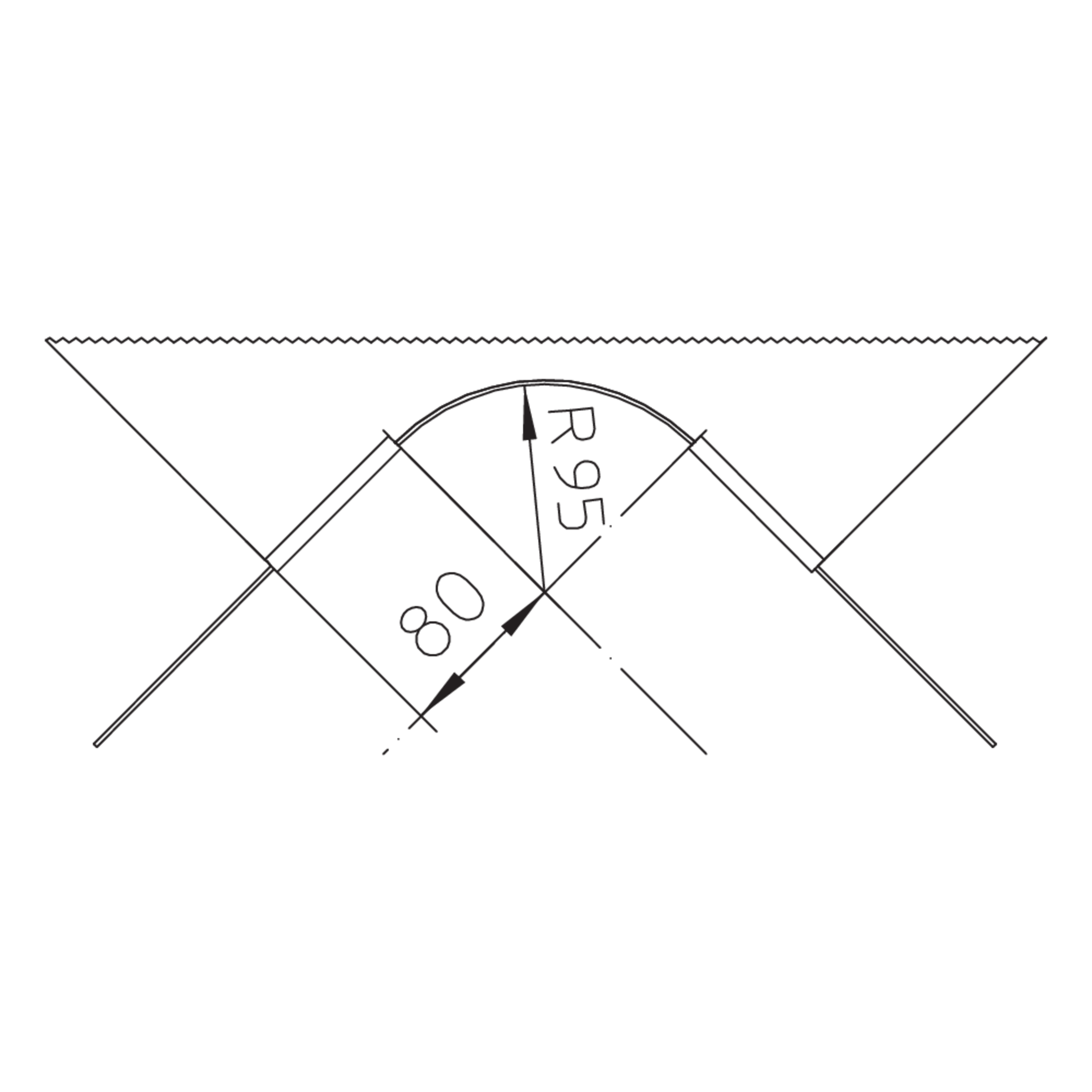

The floor duct bend BKBR 100 with integrated connectors and a radius of 95 mm allows the direction of cable routing to be changed horizontally by 90°. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The bend is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

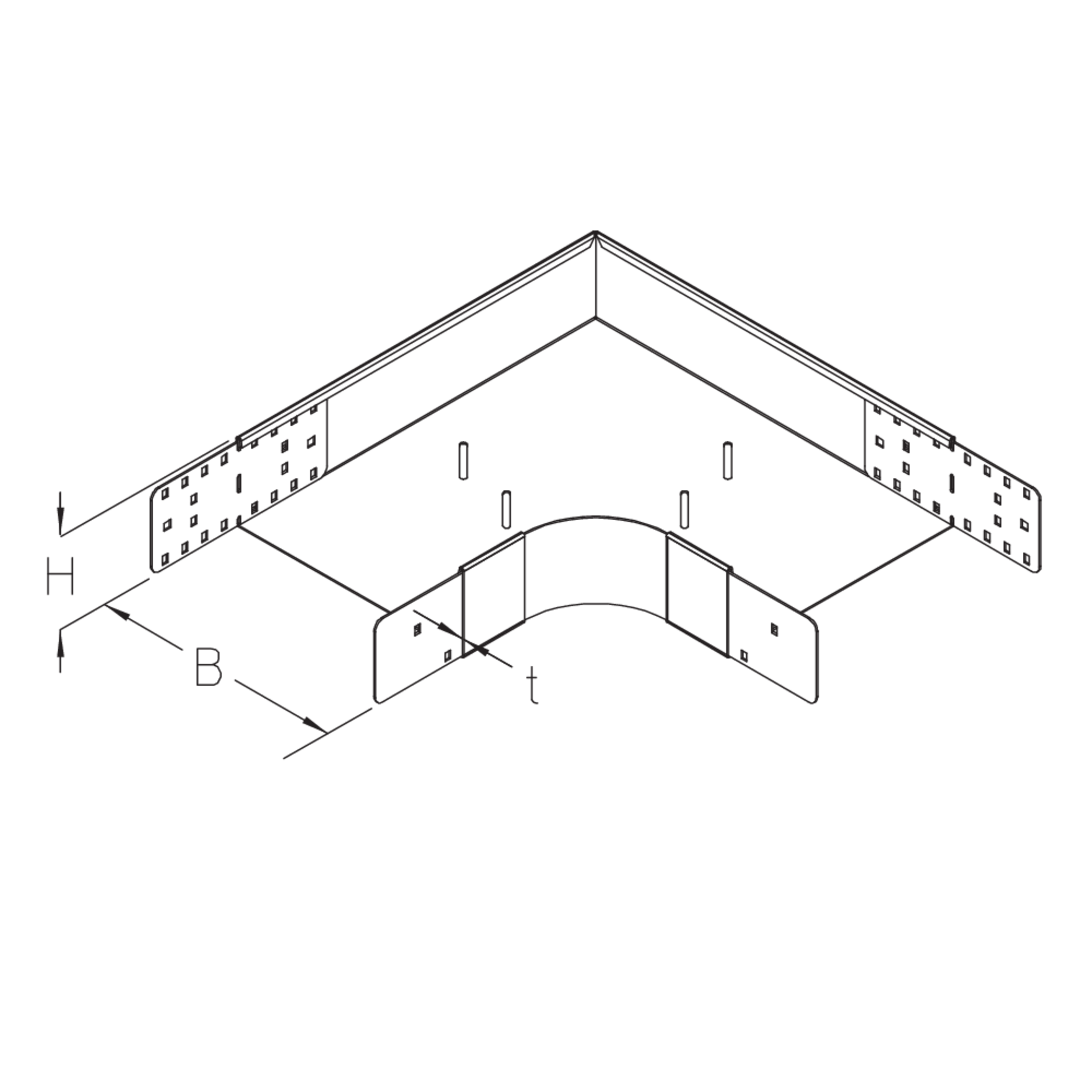

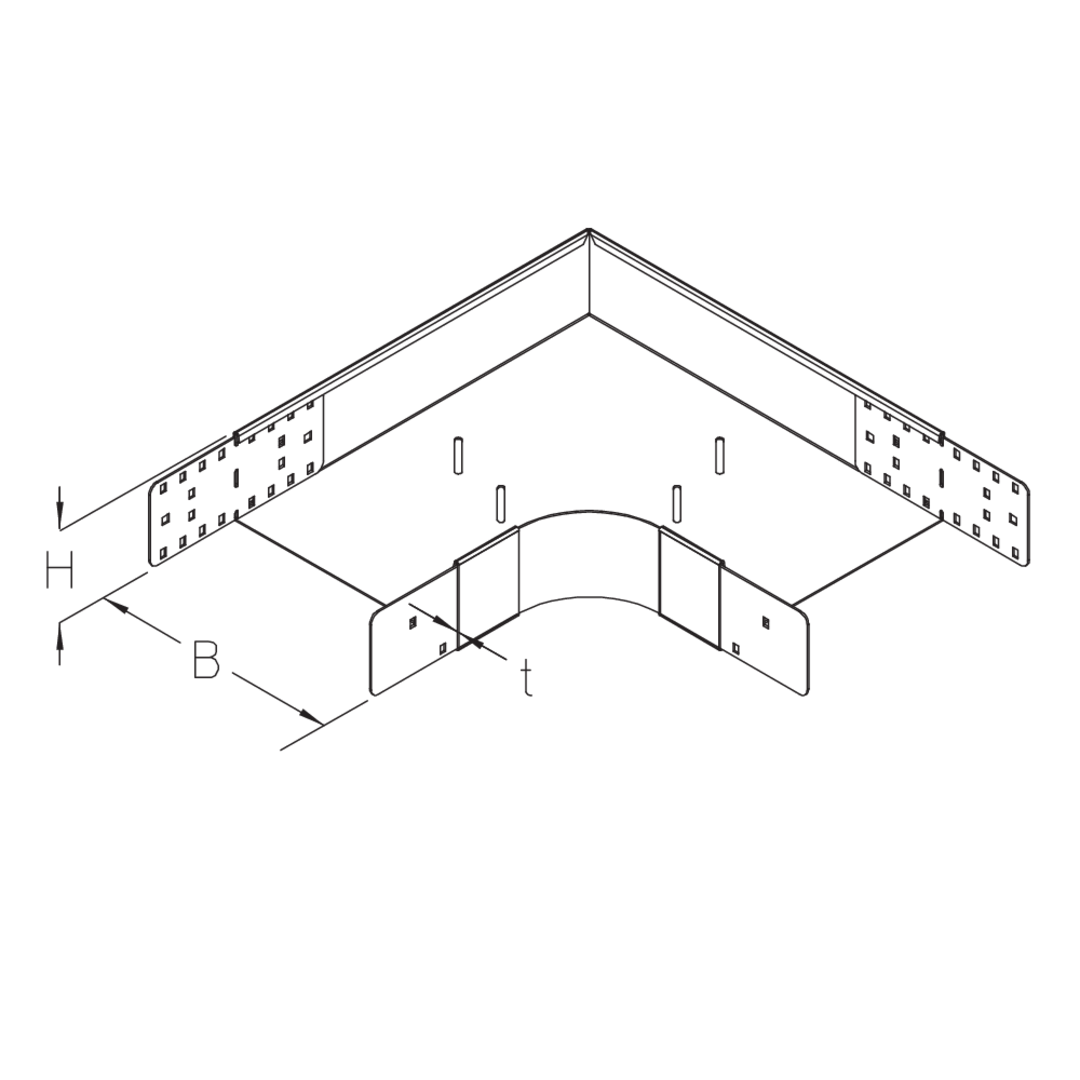

Article

H

B

t

R

direction

W

W

Included accessories

  • BKBR 100-10S
    90° floor duct bend with curve
    100 mm
    100 mm
    2.00 mm
    95 mm
    horizontal
    90°
    3.500 kg
    Included accessories
    More information
  • BKBR 100-15S
    90° floor duct bend with curve
    100 mm
    150 mm
    2.00 mm
    95 mm
    horizontal
    90°
    4.130 kg
    Included accessories
    More information
  • BKBR 100-20S
    90° floor duct bend with curve
    100 mm
    200 mm
    2.00 mm
    95 mm
    horizontal
    90°
    4.870 kg
    Included accessories
    More information
  • BKBR 100-30S
    90° floor duct bend with curve
    100 mm
    300 mm
    2.00 mm
    95 mm
    horizontal
    90°
    6.530 kg
    Included accessories
    More information
  • BKBR 100-40S
    90° floor duct bend with curve
    100 mm
    400 mm
    2.00 mm
    95 mm
    horizontal
    90°
    8.510 kg
    Included accessories
    More information
  • BKBR 100-50S
    90° floor duct bend with curve
    100 mm
    500 mm
    2.00 mm
    95 mm
    horizontal
    90°
    10.800 kg
    Included accessories
    More information
  • BKBR 100-60S
    90° floor duct bend with curve
    100 mm
    600 mm
    2.00 mm
    95 mm
    horizontal
    90°
    13.410 kg
    Included accessories
    More information

Details

    Advantages

    • Creates horizontal changes of the cable routing direction by 90°.
    • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
