The PUK-STRUT mounting system consists of mounting channels, bracket supports, brackets and head plates. The mounting channels are perforated profiles C+ with slots 22 mm wide. The brackets can be mounted on the channels and continuously adjusted so they can be set at any height. The KA 30 arms are suitable for suspending mesh cable trays and cable trays up to 400 mm wide. The KA 41 brackets are also designed for cable ladders and trays up to 600 mm wide. The PUK-STRUT mounting system has versatile possible uses and is suitable for most areas of application..
PUK-STRUT Mounting System
-

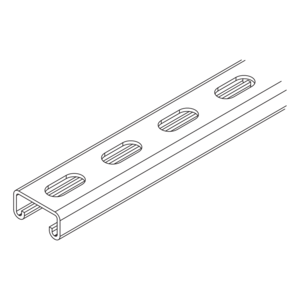

KHA 21
41x21 mm profile rail, perforated
-

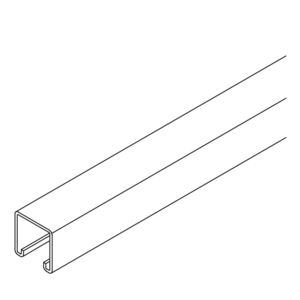

A 41
41x41 mm profile rail, unperforated
-
KHA 41
41x41 mm profile rail, perforated
-

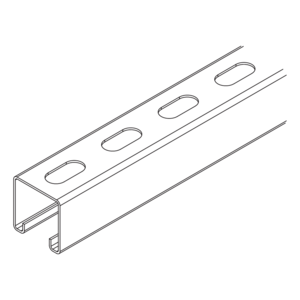

KHAL 41
41x41 mm profile rail, perforated
-

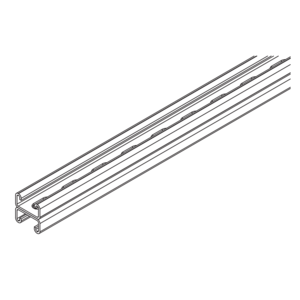

KHA 42
41x42 mm profile rail, perforated
-

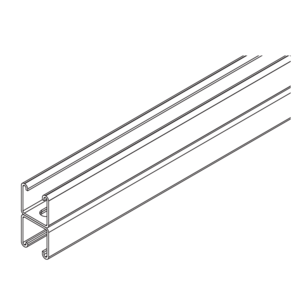

KHA 82
41x82 mm profile rail, perforated
-

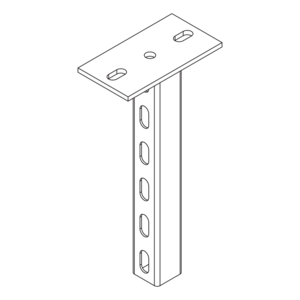

KDAG 41
Ceiling bracket support, 41x41 mm
-

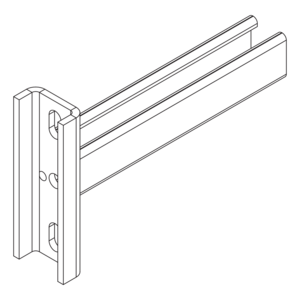

KA 41
Stem support, standard, KDAG 41, A/KHA 21/41/42/82
-

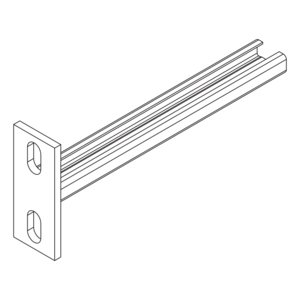

KA 30
Bracket, light
-

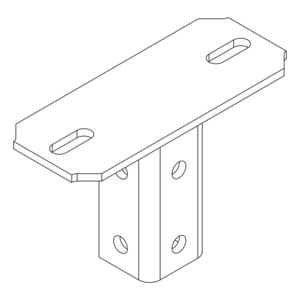

BGA 41
Screw-on head plate, KHA 41
-

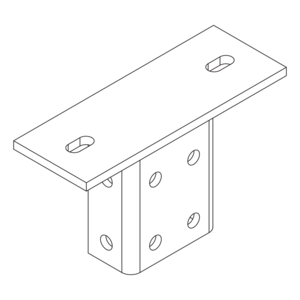

BGA 41/2
Screw-on head plate, KHA 41/82
-

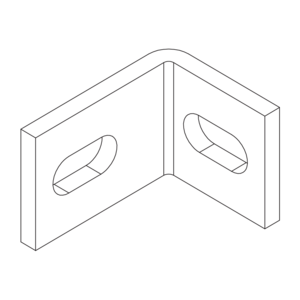

BL 5
Mounting bracket
-

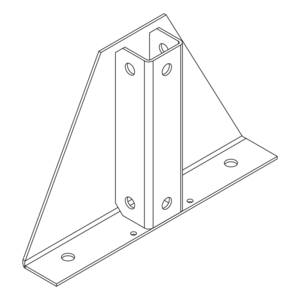

BGF 41
Screw-on head plate, KHA 41
-

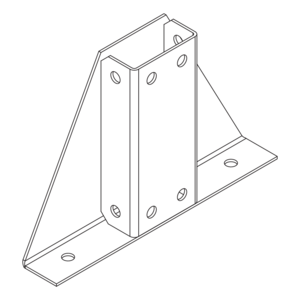

BGF 82
Screw-on head plate, KHA 82
-

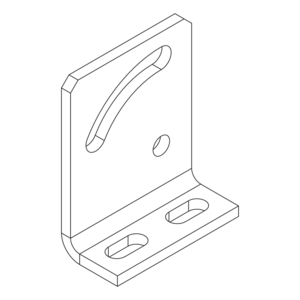

BLD
Diagonal adaptor
-

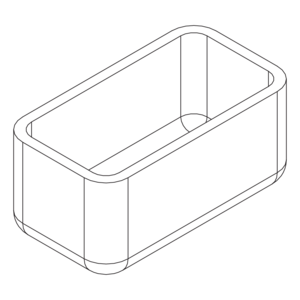

SA 1
Protection cap, cadmium yellow RAL 1021
-

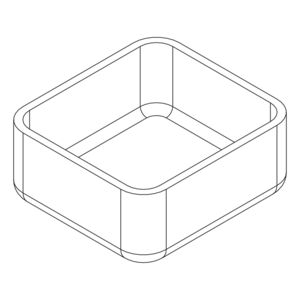

SA 2
Protection cap, cadmium yellow RAL 1021
-

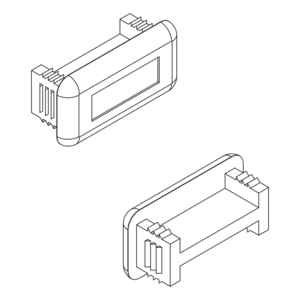

SAI 21
Protection cap, white/black
-

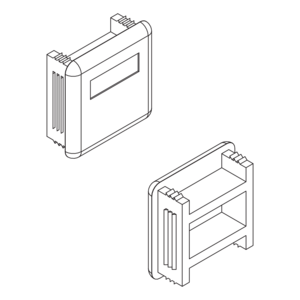

SAI 41
Protection cap, white/black
-

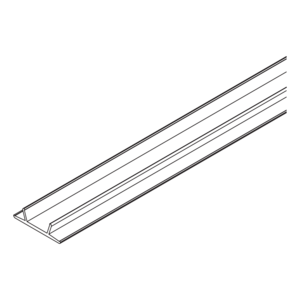

KHAD 22
Cover strip for mounting channel
-

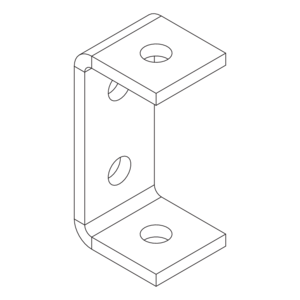

AKL 41
Rail clamp
-
AMK 22
Channel nut with plastic bracket
-
AV 41
Connector, A/KHA 21/41/42/82
-

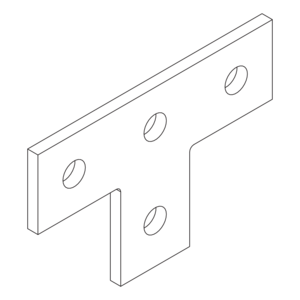

AVA
Rail connector, branch
-
AVAW
Rail connector bracket
-
AVB
Rail connector bracket
-

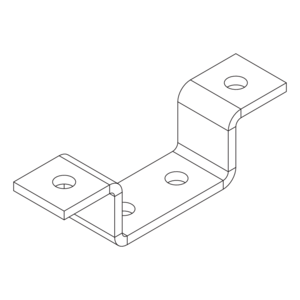

AVBD
Double channel connector bracket
-

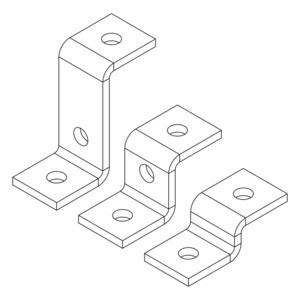

AVBL
Channel support bracket
-
AVBLA
Channel joint connector
-
AVE
Rail connector, corner
-

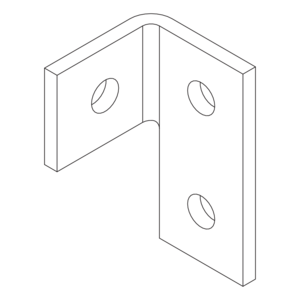

AVE-L
Left-hand channel joint connector
-

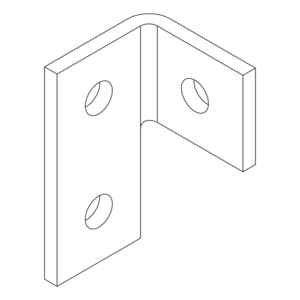

AVE-R
Right-hand channel joint connector
-
AVL
Rail connector
-

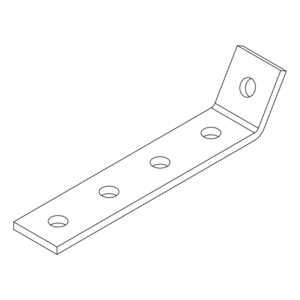

AVL 60
Channel connector, 60°
-

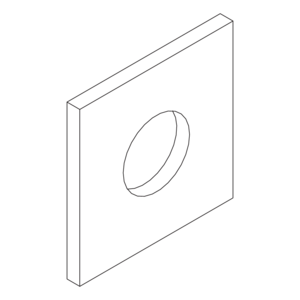

AVLI
Internal channel connector
-

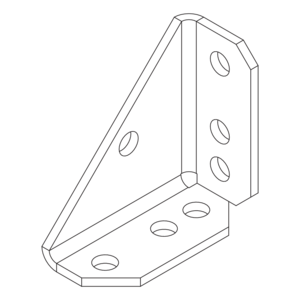

AVLK
Channel joint connector
-
AVLW
Channel connector, 90°
-

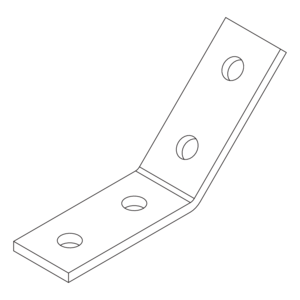

AVLW 45
Channel connector, 45°
-

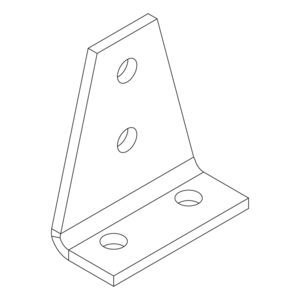

AVLWB
Channel connector
-

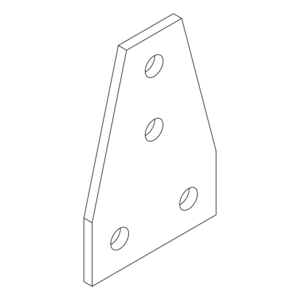

AVLWBF
Channel joint connector
-
AVLWBL
Channel joint connector
-
AVRS
Pipe clamp for mounting channels
-
AVSK
Beam clamp for mounting channels
-

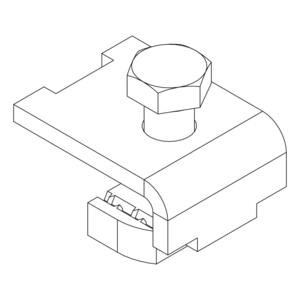

AVSKA
Beam clamp for mounting channels
-

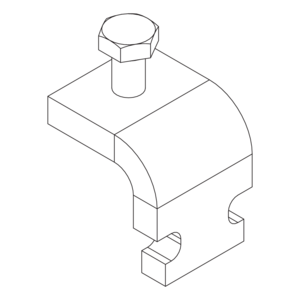

AVSKH
Beam clamp for mounting channels
-

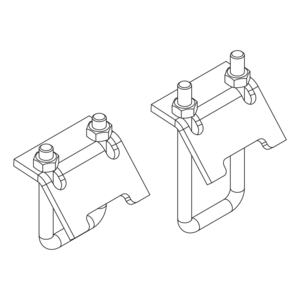

AVSKGB
Beam clamp for mounting channel
-

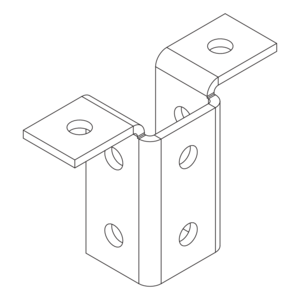

AVT
Channel joint connector
-
KZS
Cold zinc spray
-
KZF
Cold zinc paint
