In addition to the covers, optional accessories in various materials and coatings are also available to supplement the PUK cable support system, e.g. rail supports, wide-span connectors, separating strips or exit plates.
Wide-Span Cable Tray Accessories
-

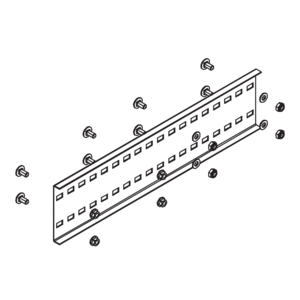

WPV 100
Wide-span cable tray connector, height = 95 mm
-
WPV 120
Wide-span cable tray connector, height = 115 mm
-
WPV 150
Wide-span cable tray connector, height = 145 mm
-

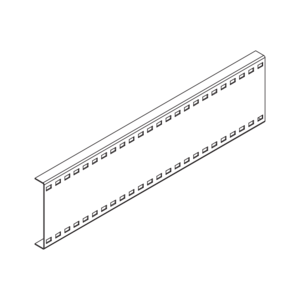

WLV 200
Wide-span cable ladder connector, height = 200 mm
-

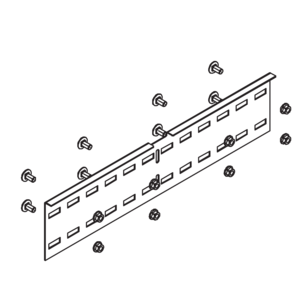

WPVH 100
Wide-span cable tray connector, horizontal, height = 85 mm
-
WPVH 120
Wide-span cable tray connector, horizontal, height = 105 mm
-
WPVH 150
Wide-span cable tray connector, horizontal, height = 135 mm
-

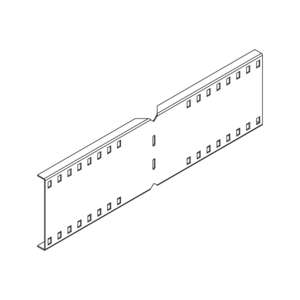

WLVH 200
Wide-span cable ladder connector, horizontal, height = 200 mm
-

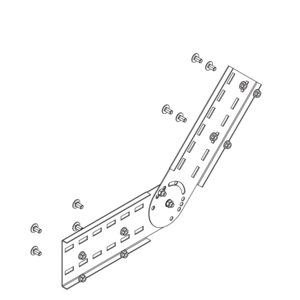

WPVV 100
Wide-span cable tray connector, vertical, height = 100 mm
-

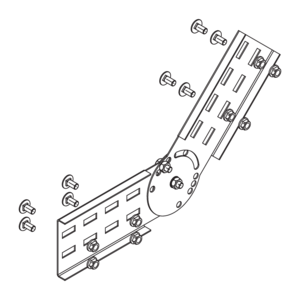

WPVV 120
Wide-span cable tray connector, vertical, height = 120 mm
-

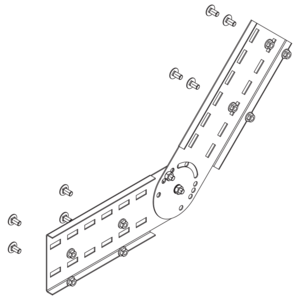

WPVV 150
Wide-span cable tray connector, vertical, height = 150 mm
-

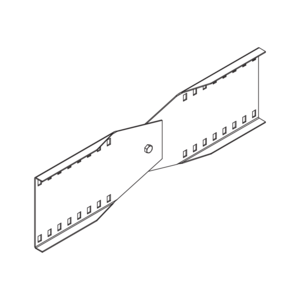

WLVV 200
Wide-span cable ladder connector, vertical, height = 200 mm
-
VB
Bottom plate
-
EBW
Corner support
-

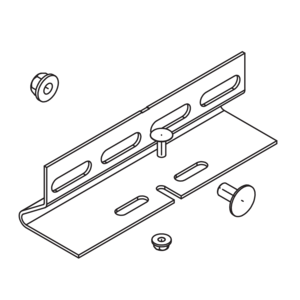

WPHS-K
Wide-span rail support (bracket)
-

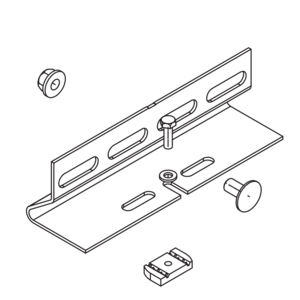

WPHS-A
Wide-span rail support (profile rail)
-

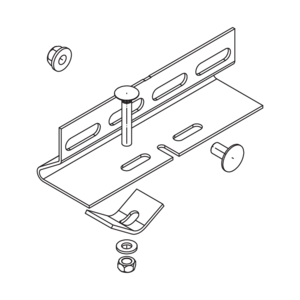

WPHS-P
Wide-span rail support (profile)
-

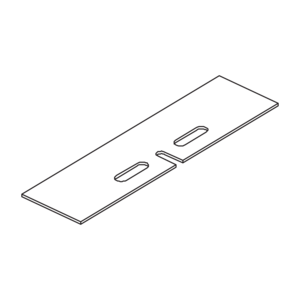

WPHS-IS
Isolation strip
-

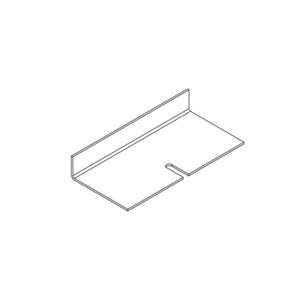

WLHS
Wide-span cable ladder rail support
-

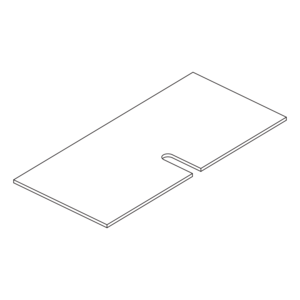

WLHS-IS
Insulation strip
-

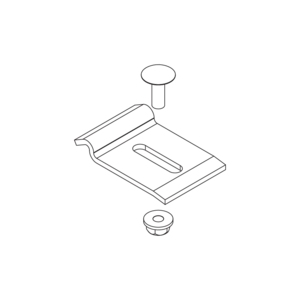

WLKL
Wide-span cable ladder hold-down clamp
-

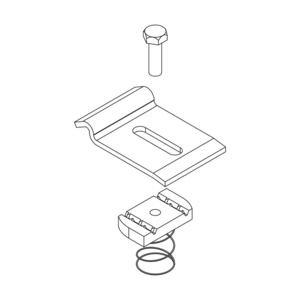

WLKLA
Wide-span cable ladder hold-down clamp
-

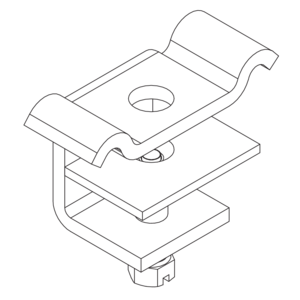

WLKLT
Wide-span cable ladder clamp
-

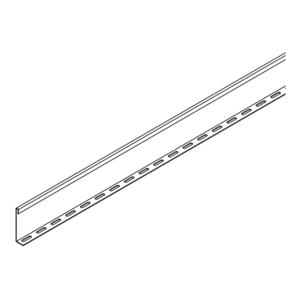

WPTR 100
Wide-span divider, height = 50 mm
-
WPTR 120
Wide-span divider, height = 80 mm
-
WPTR 150
Wide-span divider, height = 100 mm
-
WTR 200
Wide-span cable tray divider, height = 100 mm
-
WPTRV 100
Wide-span cable tray divider, flexible, height = 50 mm
-
WPTRV 120
Wide-span cable tray divider, flexible, height = 80 mm
-
WPTRV 150
Wide-span cable tray divider, flexible, height = 100 mm
-
WTRV 200
Wide-span cable tray divider, flexible, height = 100 mm
-
WLRKAB
Wide-span cable tray drop-out plate
-
WLKAB
Wide span cable ladder drop-out plate
-
WPVTO
Wide-span cable tray connector, T-joint, top
-
WPLKAB
Wide-span cable ladder drop-out plate
-
WPRKAB
Wide-span cable tray drop-out plate
-
KATB
T-joint connector plate
-
KATBS
T-joint connector plate, sideways
-

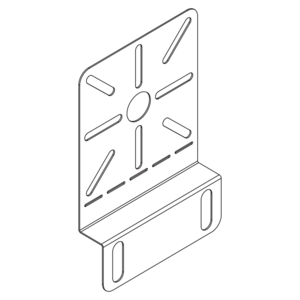

MP-W
Mounting plate
-

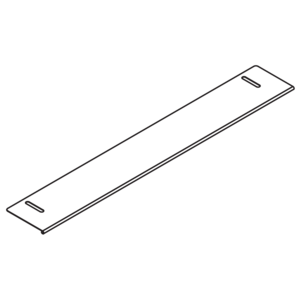

WPREB
Wide-span cable tray end plate
-

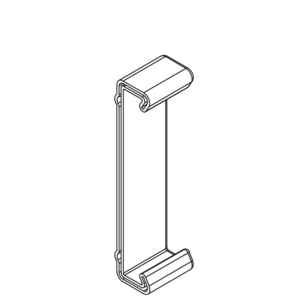

SWP 100
Protective cap, height = 100 mm
-
SWP 120
Protective cap, height = 120 mm
-
SWP 150
Protective cap, height = 150 mm
-
KZF
Cold zinc paint
-
KZS
Cold zinc spray
