The U profile system is a standard system and consists of bracket holders, strut brackets and head plates. The struts are three-sided perforated U construction profiles. KDU bracket supports have integrated head plates while separate BGU head plates can be bolted onto KHU profiles. Brackets KWF, KW, KWMS or KWS can be easily attached (see section Brackets) thanks to the continuous perforation. The U strut system has versatile possible uses and is suitable for most areas of application.
U-Handle System
-
KDU 40
Bracket support, 40x30 mm
-
KDU 57
Bracket support, 57x30 mm
-
KDU 60
Bracket support, heavy duty, 60x40 mm
-
KHU 40
Bracket support, 40x30 mm
-

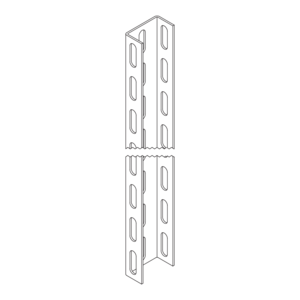

KHU 57
Bracket support, 57x30 mm
-

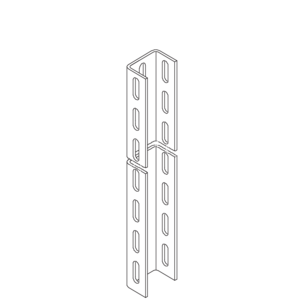

KHU 60
Bracket support, heavy duty, 60x40 mm
-

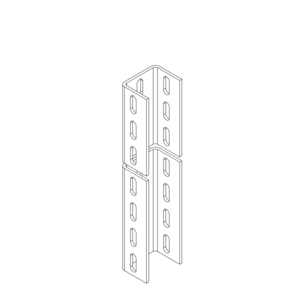

KHU 80
Bracket support, heavy, 80x60 mm
-

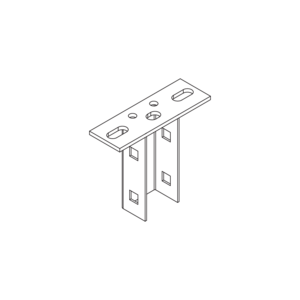

BGU 40
Screw-on head plate, KHU 40
-

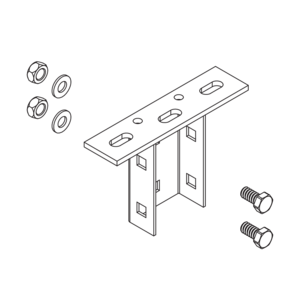

BGU 57
Screw-on head plate, KHU 57
-
BGU 60
Bolted head plate, KHU 60
-

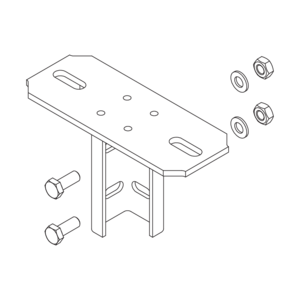

BGU 80
Screw-on head plate, KHU 80
-

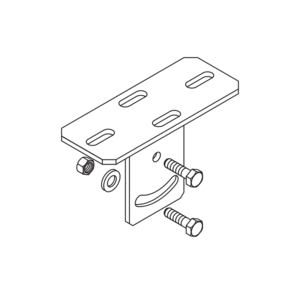

BGUD
Screw-on head plate, ±30°, KHU 40/57/60
-

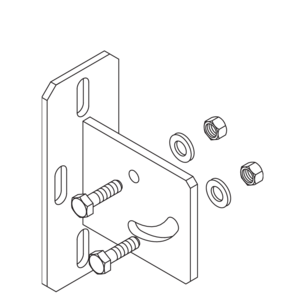

BGUDW
Screw-on head plate, 30°-90°, KHU 40/57/60
-

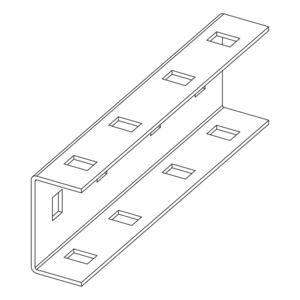

KHUV 40
Connector, KHU 40
-

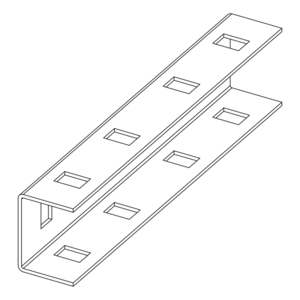

KHUV 57
Connector, KHU 57
-

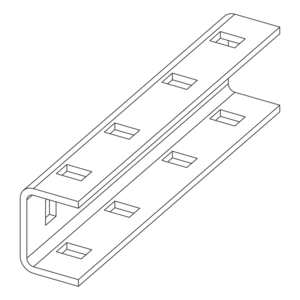

KHUV 60
Connector, KHU 60
-

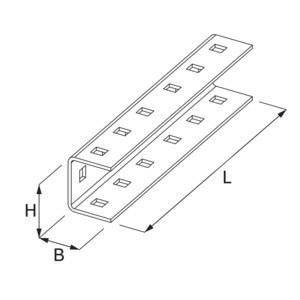

KHUV 80
Connector, KHU 80
-

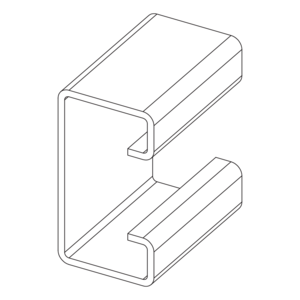

KHUSS 40
Support piece, KHU 40
-

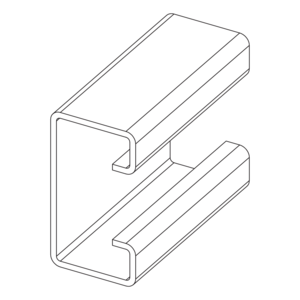

KHUSS 57
Support piece, KHU 57
-

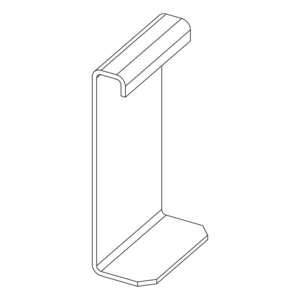

KHUSS 60
Support piece, KHU 60
-

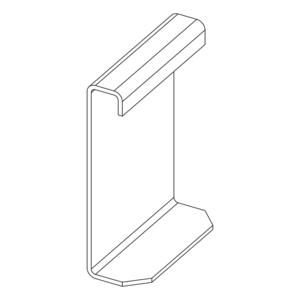

KHUSS 80
Support piece, KHU 80
-
BL 4
Mounting bracket
-
BLD
Diagonal adaptor
-

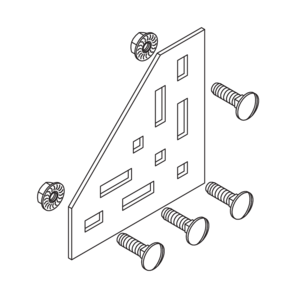

KB
Junction plate
-
SU 40
Protection cap, KHU 40
-
SU 57
Protection cap, KHU 57
-
SU 60
Protection cap, KHU 60
-

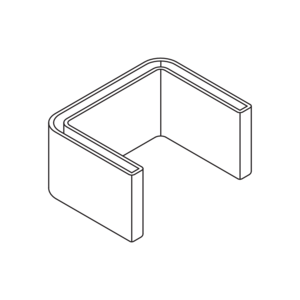

SU 80
Protection cap, KHU 80
-
KZS
Cold zinc spray
-
KZF
Cold zinc paint
