PUK WPR wide-span cable trays easily conduct cables even over large intervals of up to eight metres between fixtures. The weight-optimised wide-span cable trays have high load-bearing capacities due to their rail supports. The side rail is continuously perforated and folded outwards to reinforce the component and protect the cables. In addition, the transverse rigidity is increased by welded-in and crimped insert panels. Our wide-span cable trays are available in heights of 100, 120 and 150 mm, and in widths of 200, 300, 400, 500 and 600 mm and come in a standard length of 6000 mm. Special sizes can also be produced on request.
WPR Wide-span Cable Tray
-

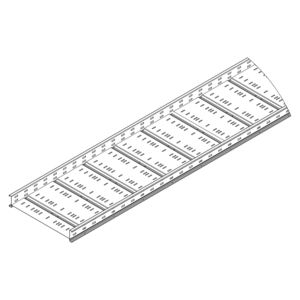

WPR 100
Wide-span cable tray, height = 100 mm
-

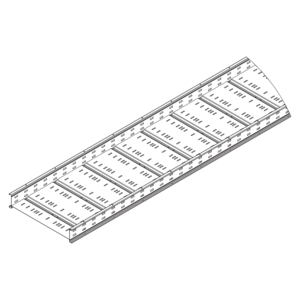

WPR 120
Wide-span cable tray, height = 120 mm
-

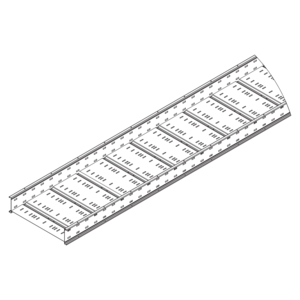

WPR 150
Wide-span cable tray, height = 150 mm

Our finishing services
Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.
