Art.-Nr. UGWIS-W2FILS6A-300

device cup pre-assembled

Mounting box pre-assembled with RCCB switch, 6 A, Wieland

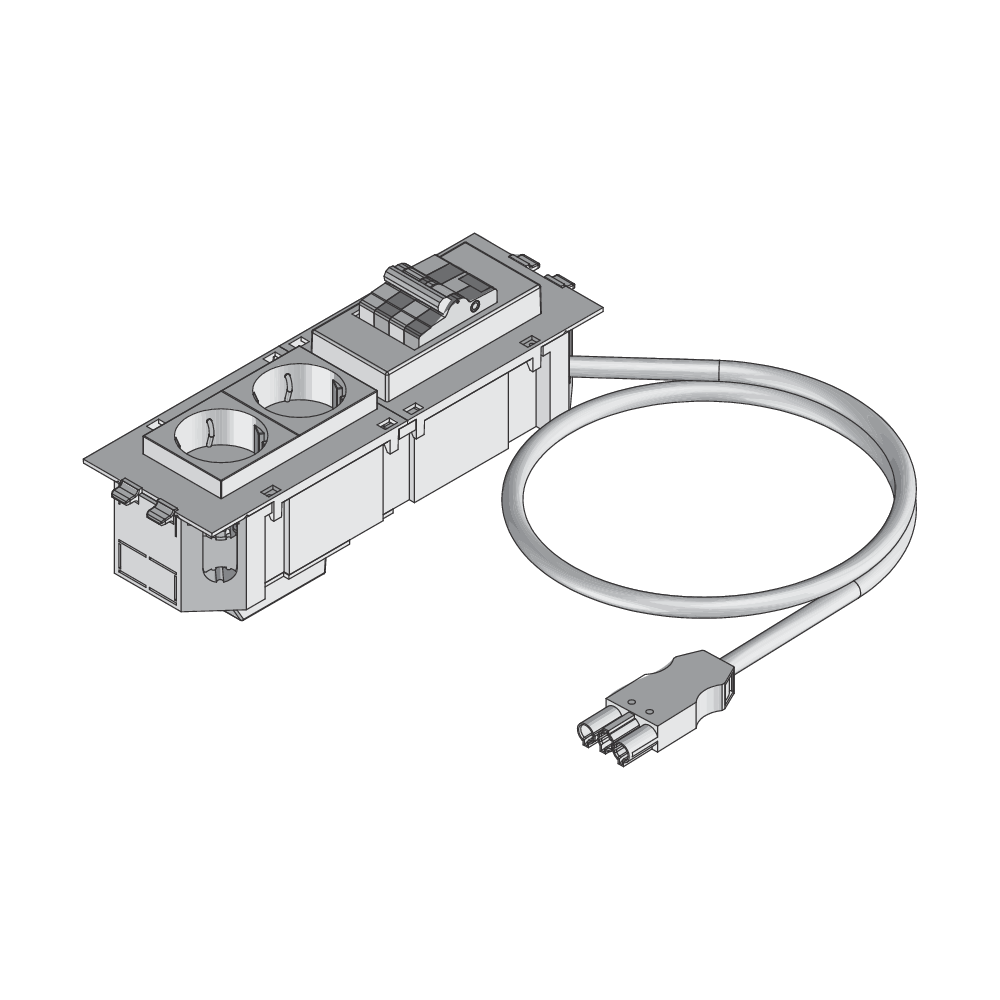

UGWIS-FILS6A components are pre-assembled mounting boxes with a type 6 KA, 1 p + N, 6 A/30 mA residual current circuit breaker (RCCB). The mounting boxes are connected with a 2000 to 3000 mm long connecting cable with a 2.5 mm² cable cross-section and a 3-pin Wieland plug. They are completed by the addition of a 3-pin Wieland device socket under the mounting box and a 2-way socket. They are made of ABS copolymer.

Art.-Nr.
UGWIS-W2FILS6A-300
height
46 mm
width
74 mm
length
225 mm
connection cable
3000 mm
Colour of Snap-in
black
Cable cross-section
2.5 mm2
Weight per storage unit
0.981 kg
Get in touch Download datasheet

Variants

Article

H

height

B

width

L

length

connection cable

Colour of Snap-in

KQ

Cable cross-section

G

Weight per storage unit
  • UGWIS-O2FILS6A-200
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    2000 mm
    Colour of Snap-in
    white
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.831 kg
    More information
  • UGWIS-O2FILS6A-300
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    3000 mm
    Colour of Snap-in
    white
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.981 kg
    More information
  • UGWIS-W2FILS6A-200
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    2000 mm
    Colour of Snap-in
    black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.831 kg
    More information
  • UGWIS-W2FILS6A-300
    device cup pre-assembled
    height
    46 mm
    width
    74 mm
    length
    225 mm
    connection cable
    3000 mm
    Colour of Snap-in
    black
    Cable cross-section
    2.5 mm2
    Weight per storage unit
    0.981 kg
    More information
