UGE3 VDDE

Mounting box insert, 3x, for stainless steel units, angular

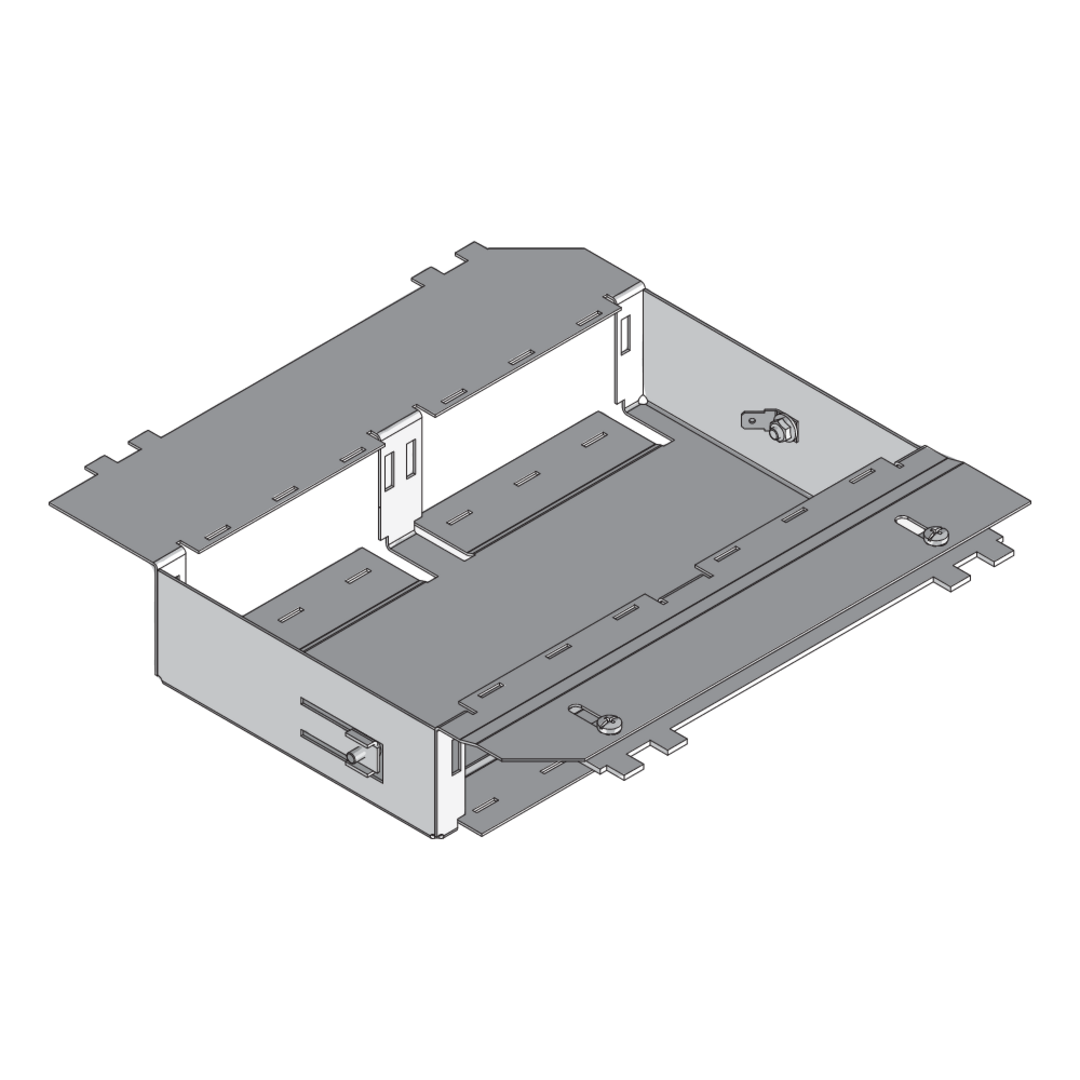

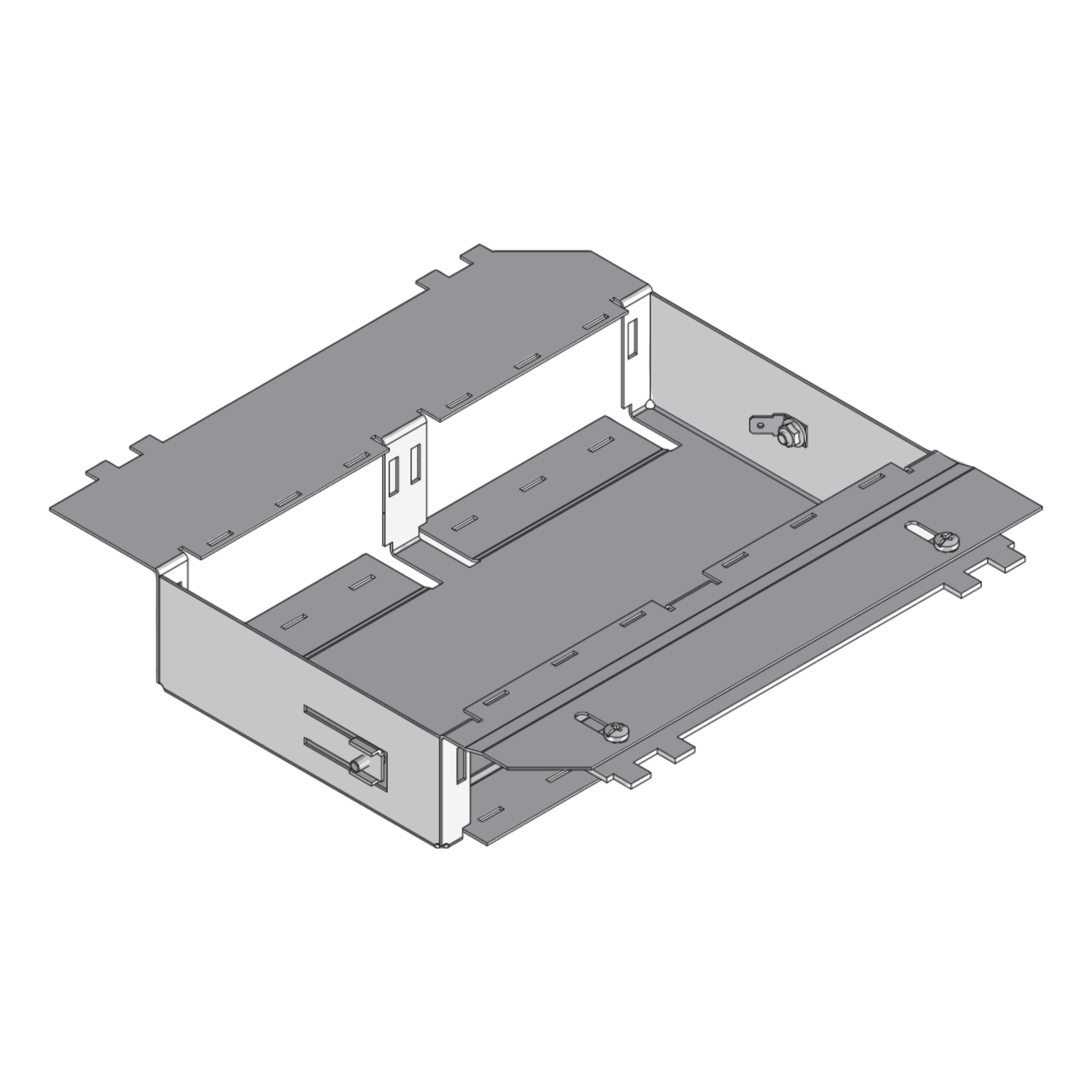

The UGE3 VDDE components are service outlets with side panels that can be bolted into square stainless steel installation units suitable for up to three mounting boxes. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Article

H

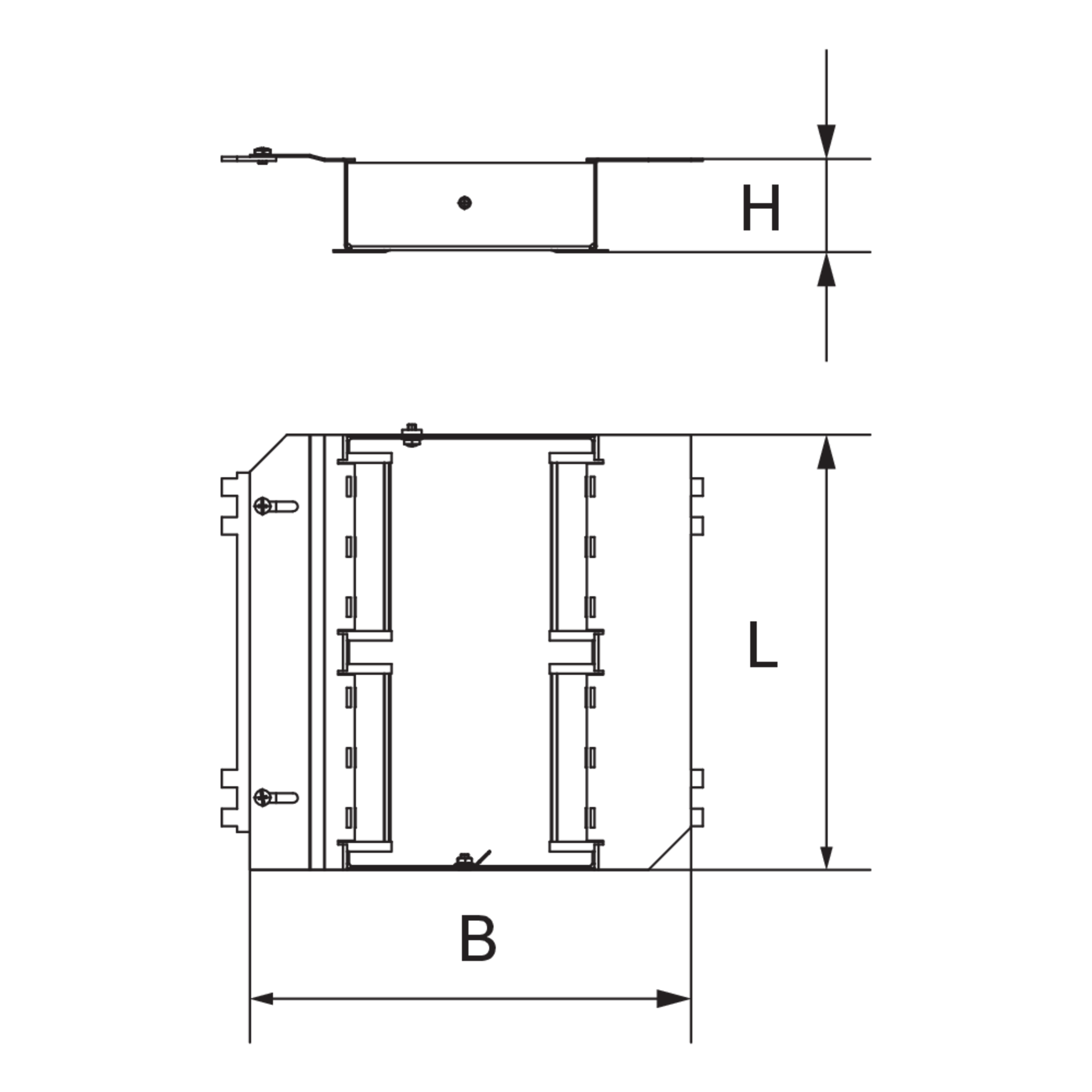

Hmin

B

L

data jacks

E1

E2

installation units/outlet socket

W

  • UGE3-VDDE 4
    device insert,
    47 mm
    76 mm
    227 mm
    224 mm
    6
    90 mm
    46 mm
    4x 45x45 mm
    0.594 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
