UGE3 RDDE

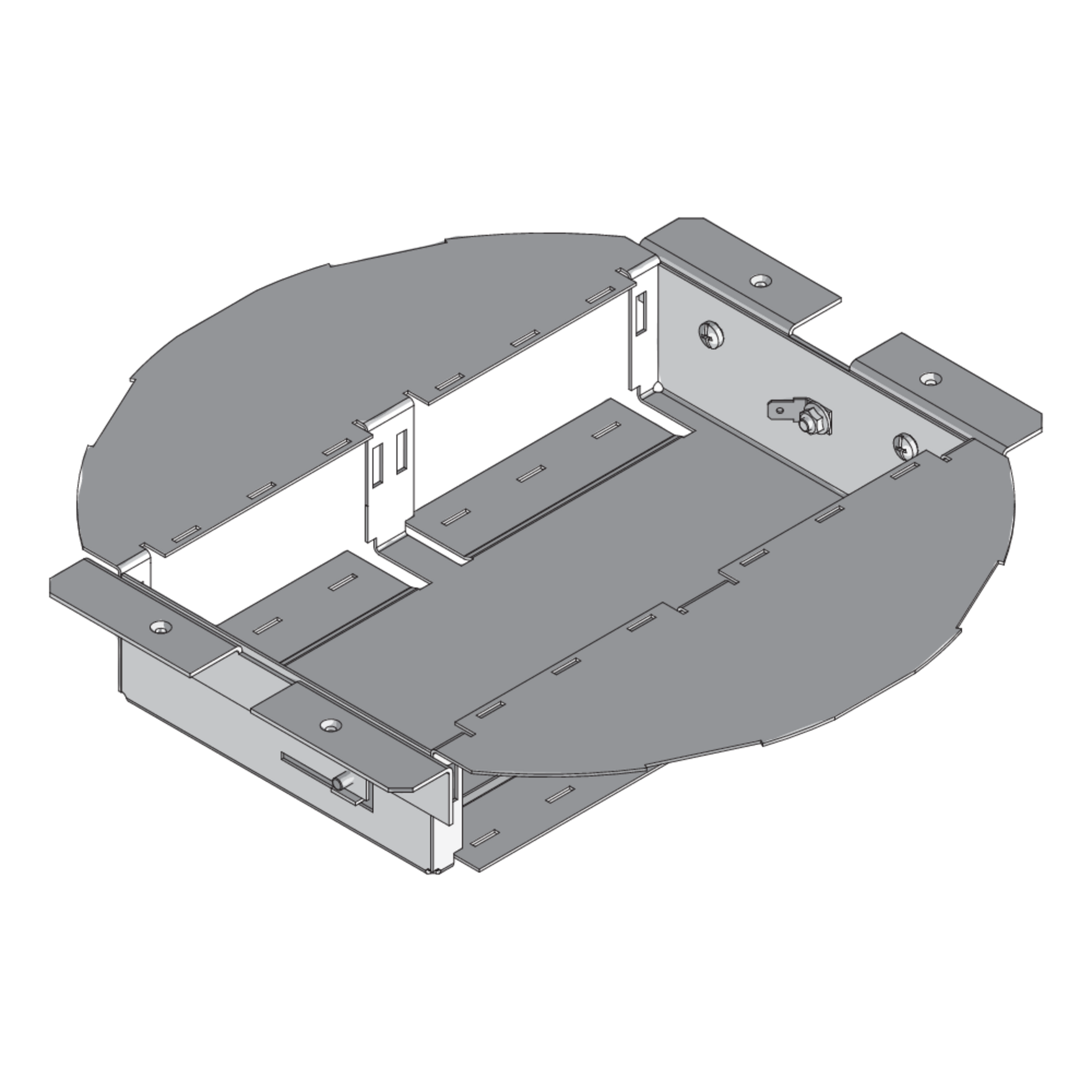

Mounting box insert, 3x, for stainless steel units, round

The UGE3 RDDE components are service outlets with side panels that can be bolted into round stainless steel installation units suitable for a maximum of three mounting boxes. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

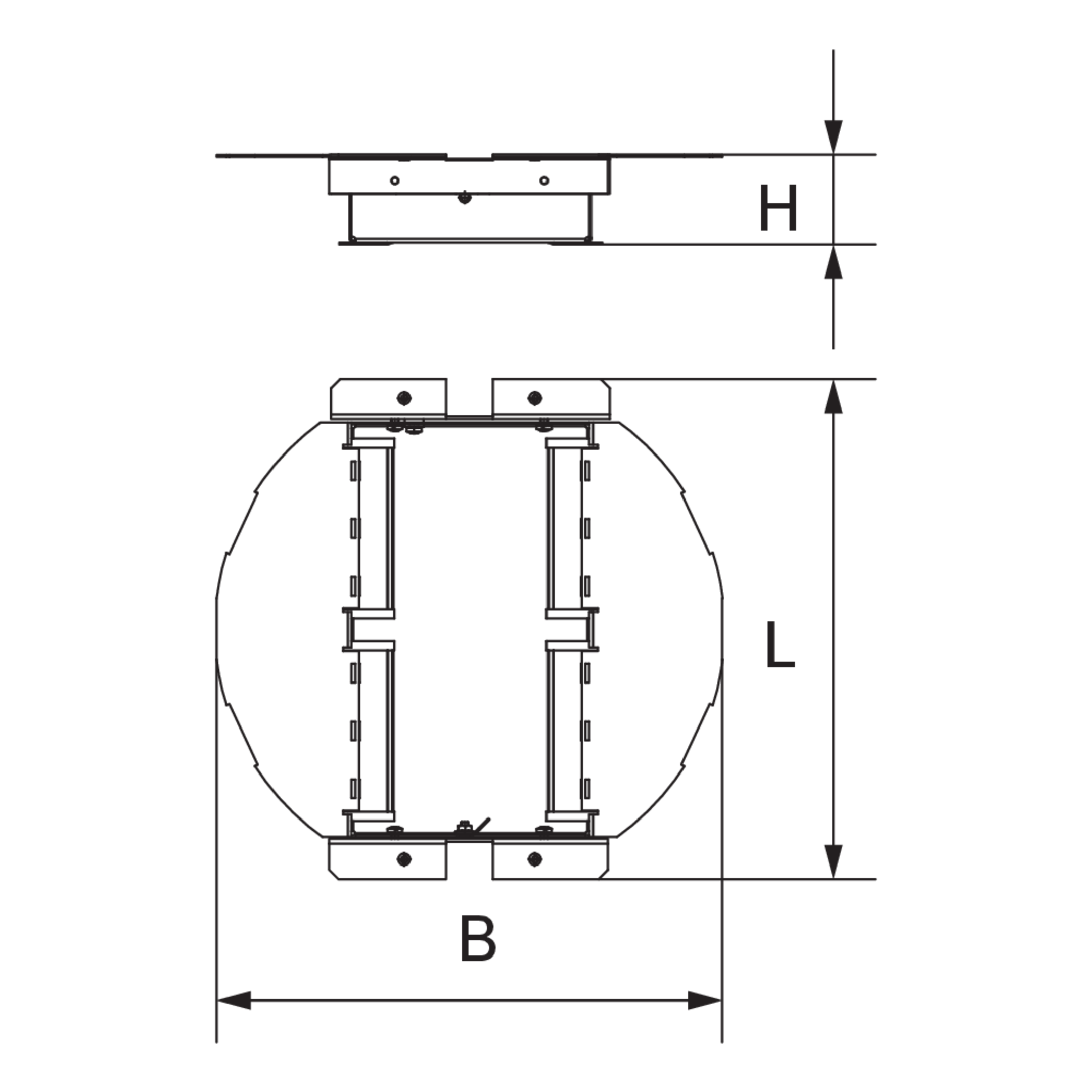

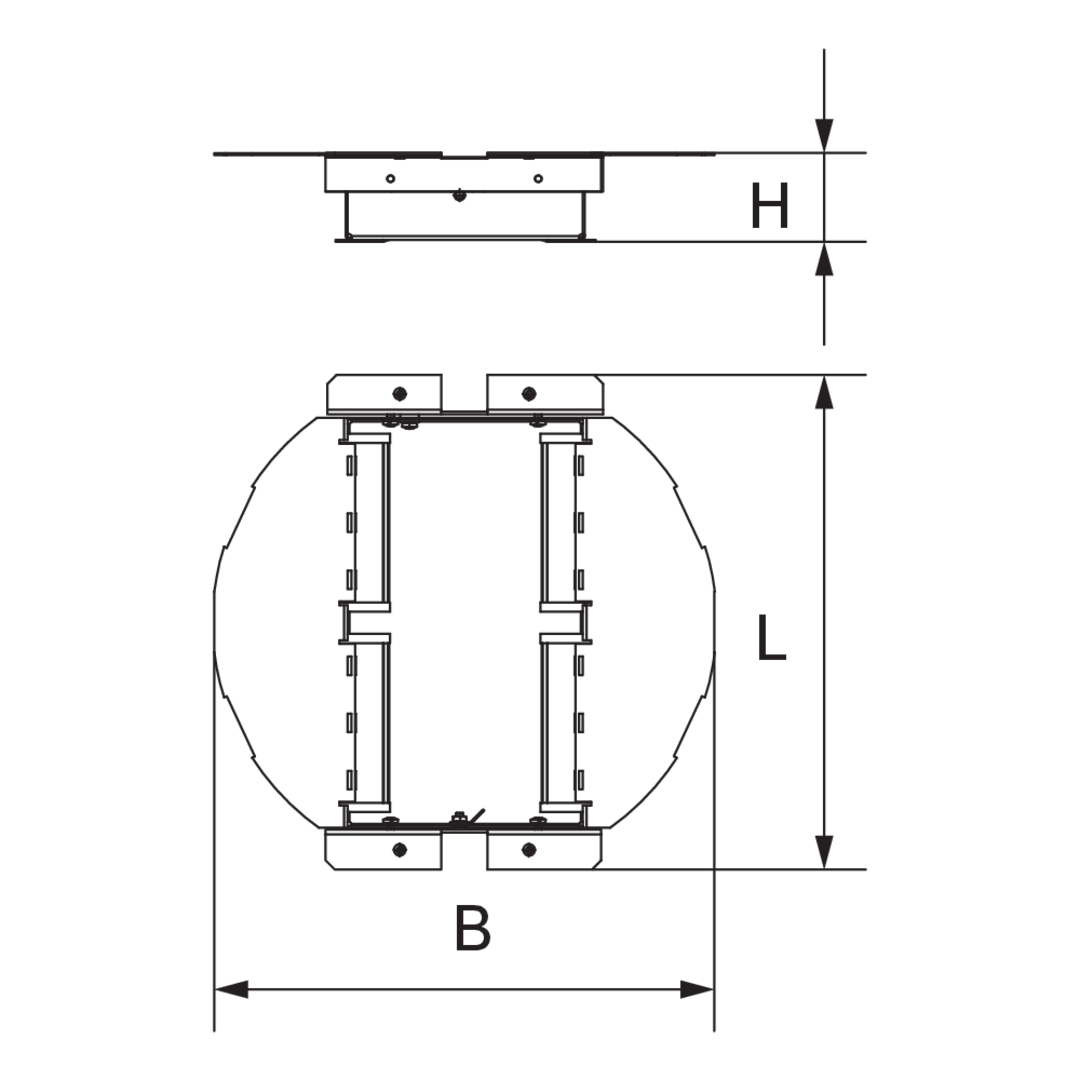

H

height

Hmin

minimum installation height

B

width

L

length

data jacks

Max. number of installable data jacks

E1

fitting dimension E1

E2

fitting dimension E2

G

Weight per storage unit

Installation devices

Max. number of installation devices

  • UGE3-RDDE 4
    device insert UGE3-VE 8, for triple
    height
    48 mm
    minimum installation height
    76 mm
    width
    271 mm
    length
    268 mm
    Max. number of installable data jacks
    6
    fitting dimension E1
    90 mm
    fitting dimension E2
    46 mm
    Weight per storage unit
    0.680 kg
    Max. number of installation devices
    4x 45x45 mm
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
