UEBDS R E

Stainless steel heavy-duty dummy cover unit, 3x, round

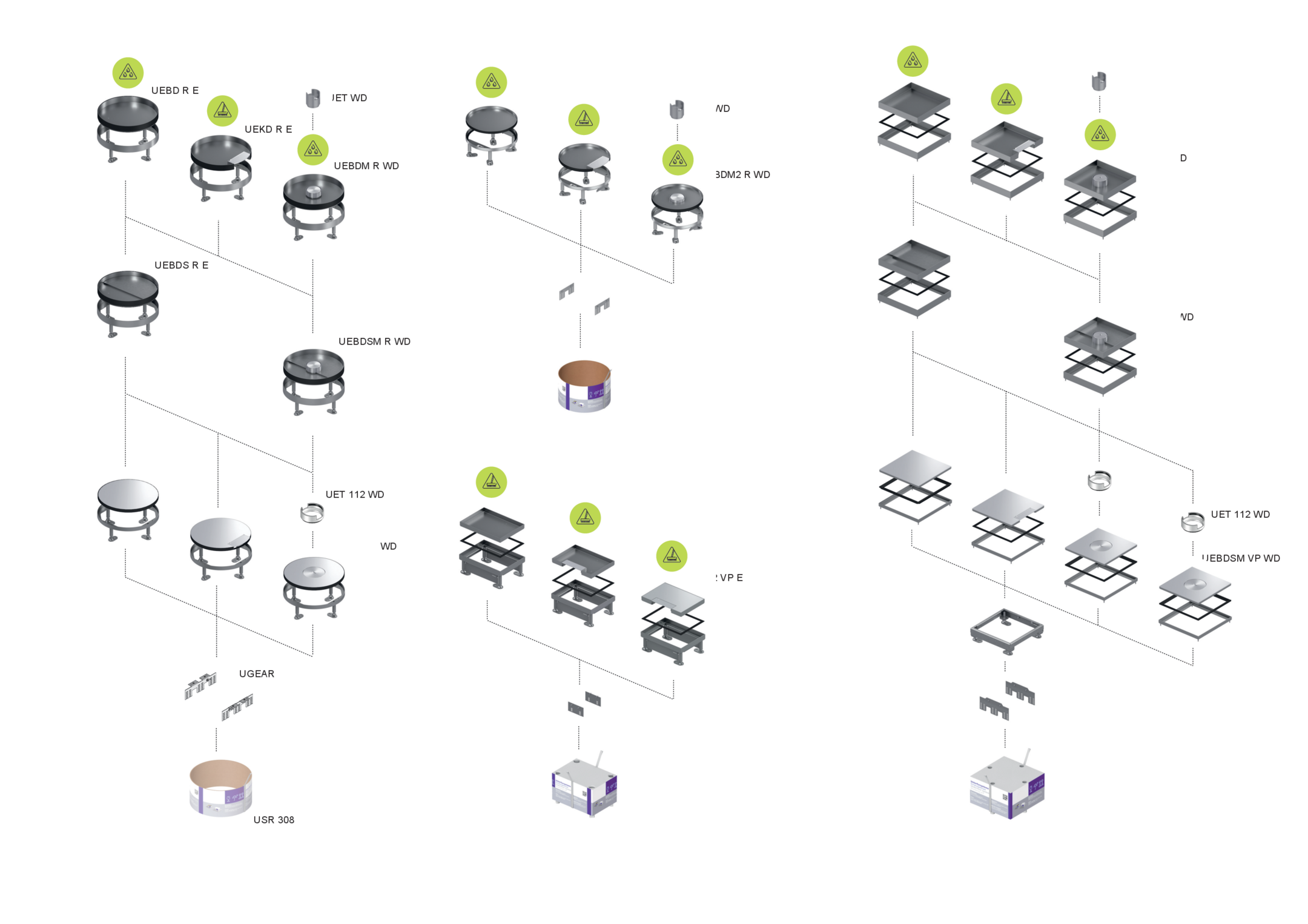

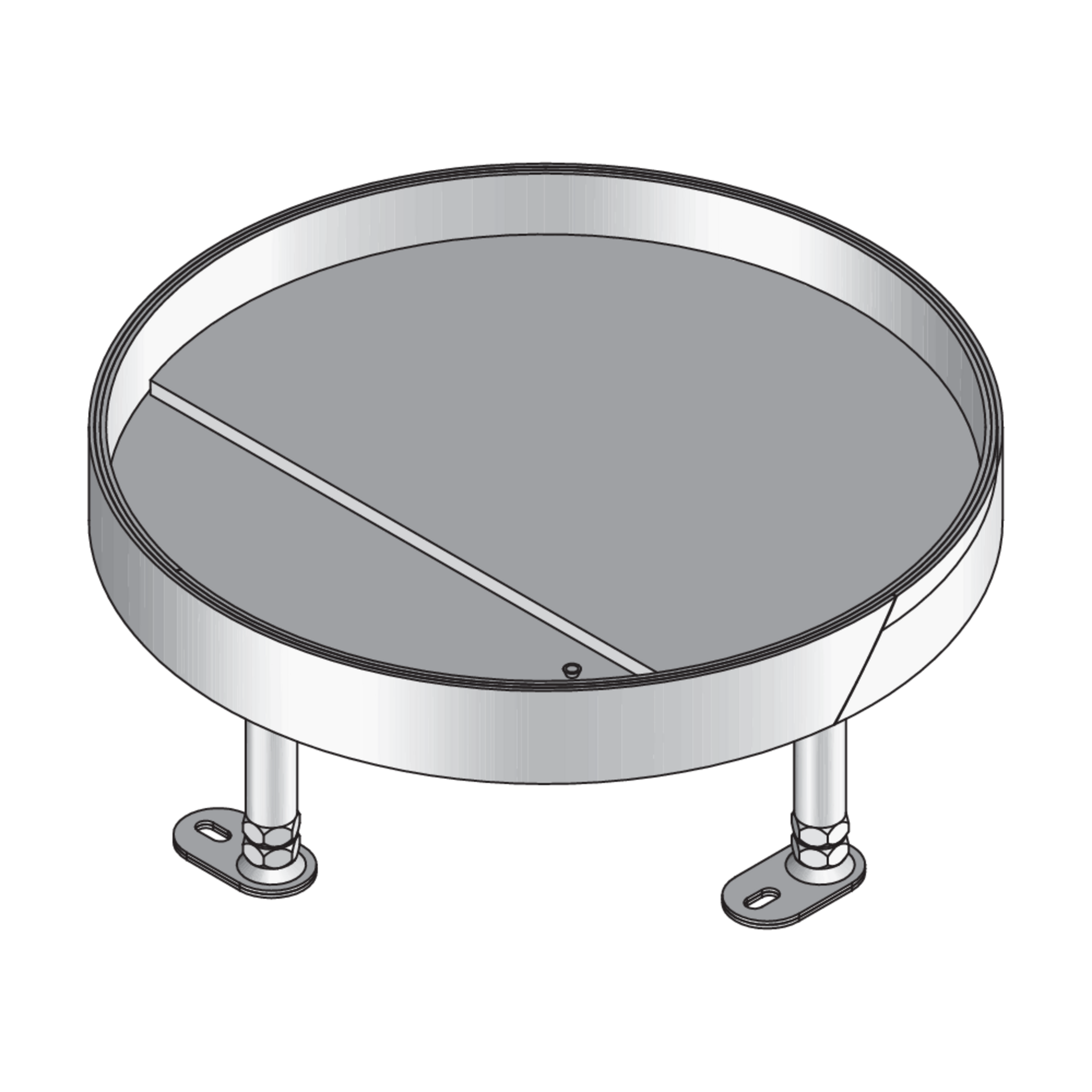

UEBDS R E installation units are round dummy cover units with abutting edges. They can accommodate a maximum of three mounting boxes. They consist of height-adjustable mounting frames with a dummy heavy-duty cartridge, a rubber seal and the UGEAR-ELS earthing bracket. The components are suitable for use in wet-cleaned rooms with high traffic loads and are installed in assembly covers, UBDHB floor sockets and raised or false floor openings. They are made of stainless steel V2A. They have an IP protection level of IP 54 in an unused condition, a max. load capacity of 20 kN, an adjustment range of 55 mm, a min. installation height of 117 mm and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

Hmin

minimum installation height

N

levelling range

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit
  • UEBDS 35-R6 E
    heavy duty cartridge unit,
    height
    38 mm
    minimum installation height
    117 mm
    levelling range
    55 mm
    maximum load
    20.00 kN
    Installation diameter
    305 mm
    fitting dimension
    307 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    24 mm
    Weight per storage unit
    7.161 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • VDE Certificate 40035723 Stainless Steel Units

    Zertifikat

    PDF, 316 KB

    de en

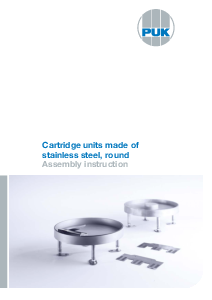

  • Installation Instructions UEKD-R E
