UBST R WD

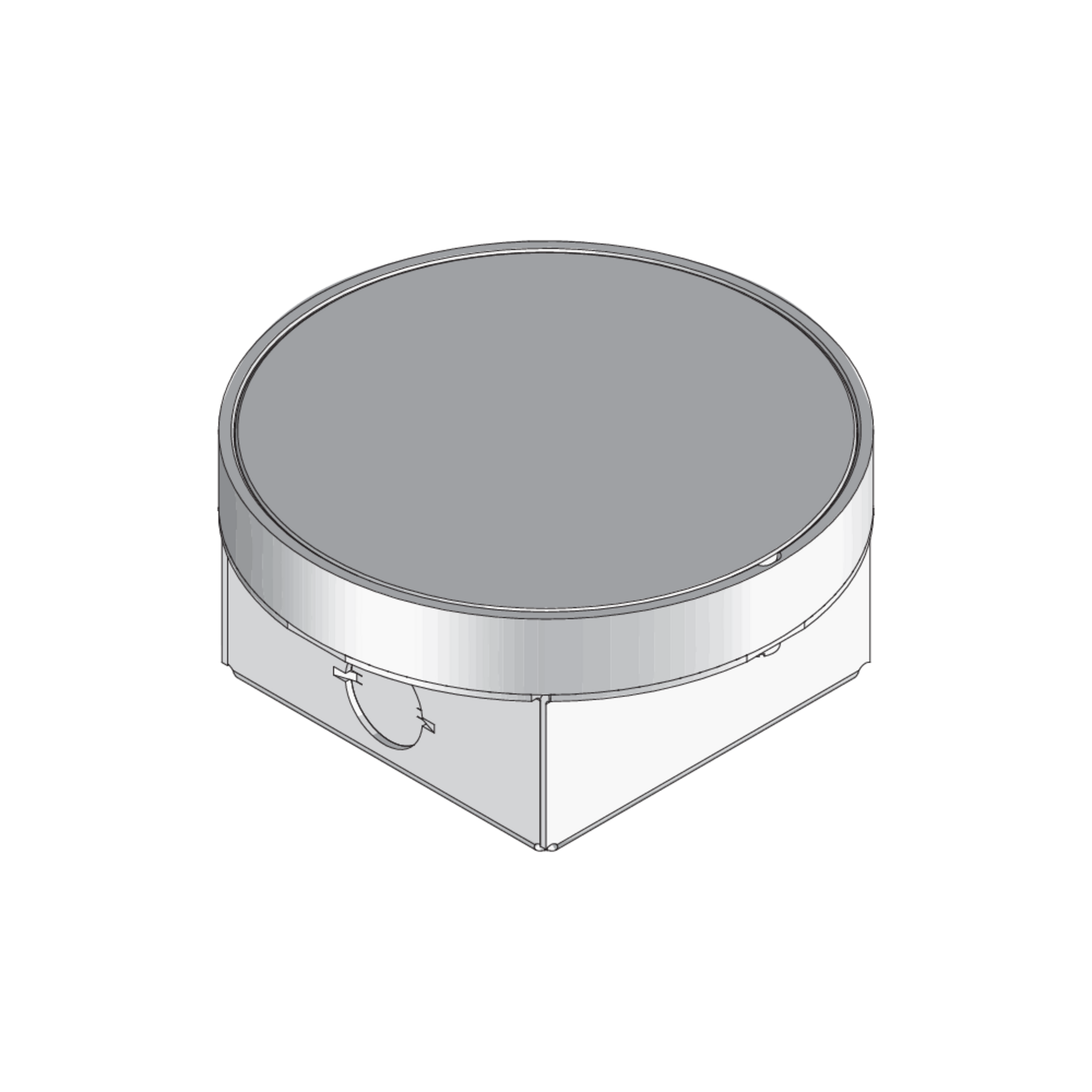

Cleaning socket, single, round, levelable

Round cleaning socket made of high-grade steel sheet with a hem. Incl. white single isolated ground receptacle. As levellable unit with tube cover, retainer box made of sheet steel. For direct installation in screed floors. Suitable for rooms with low floor build-up and wet-cleaned floor coverings. Designed for office traffic loads.

Get in touch Download datasheet

Variants

aluminium

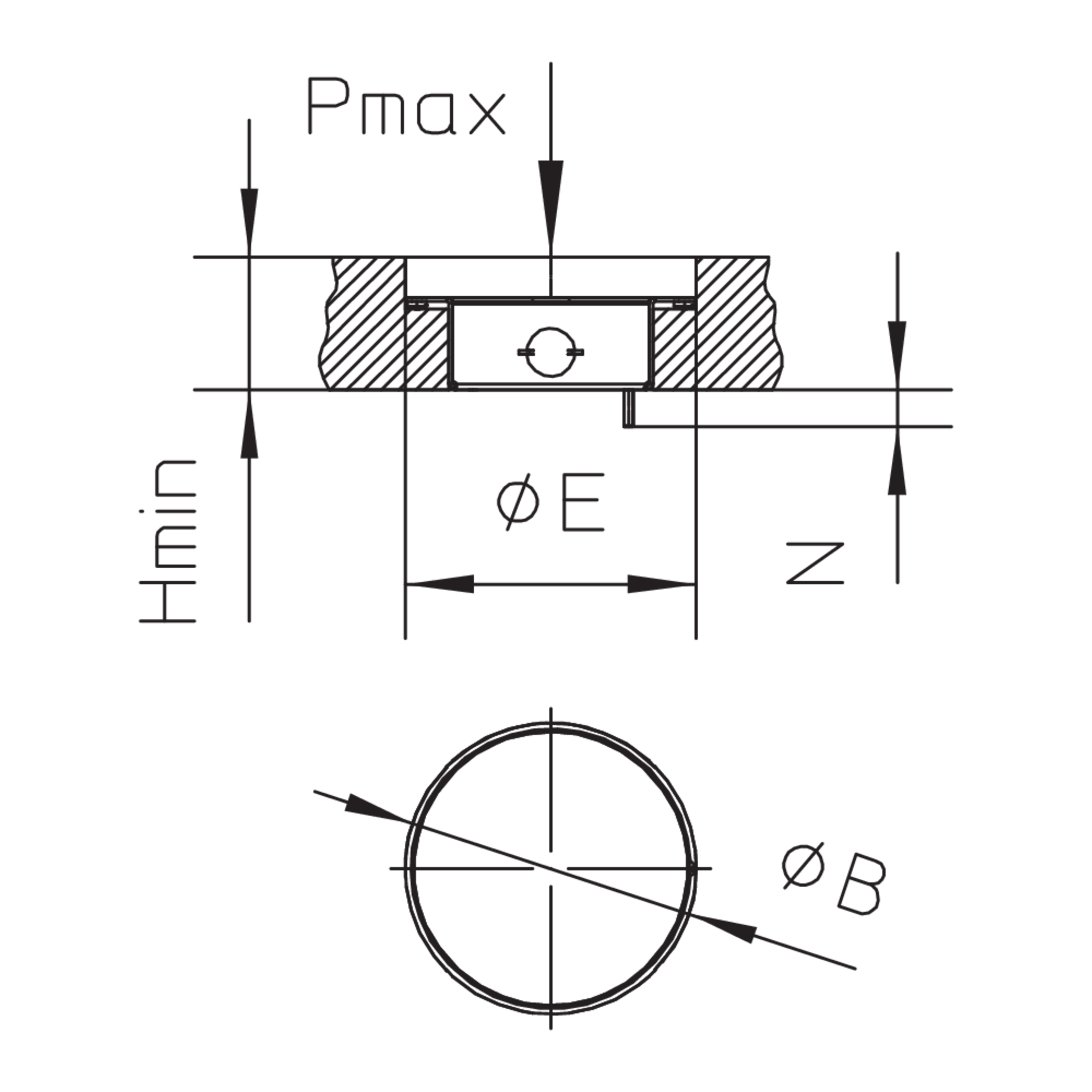

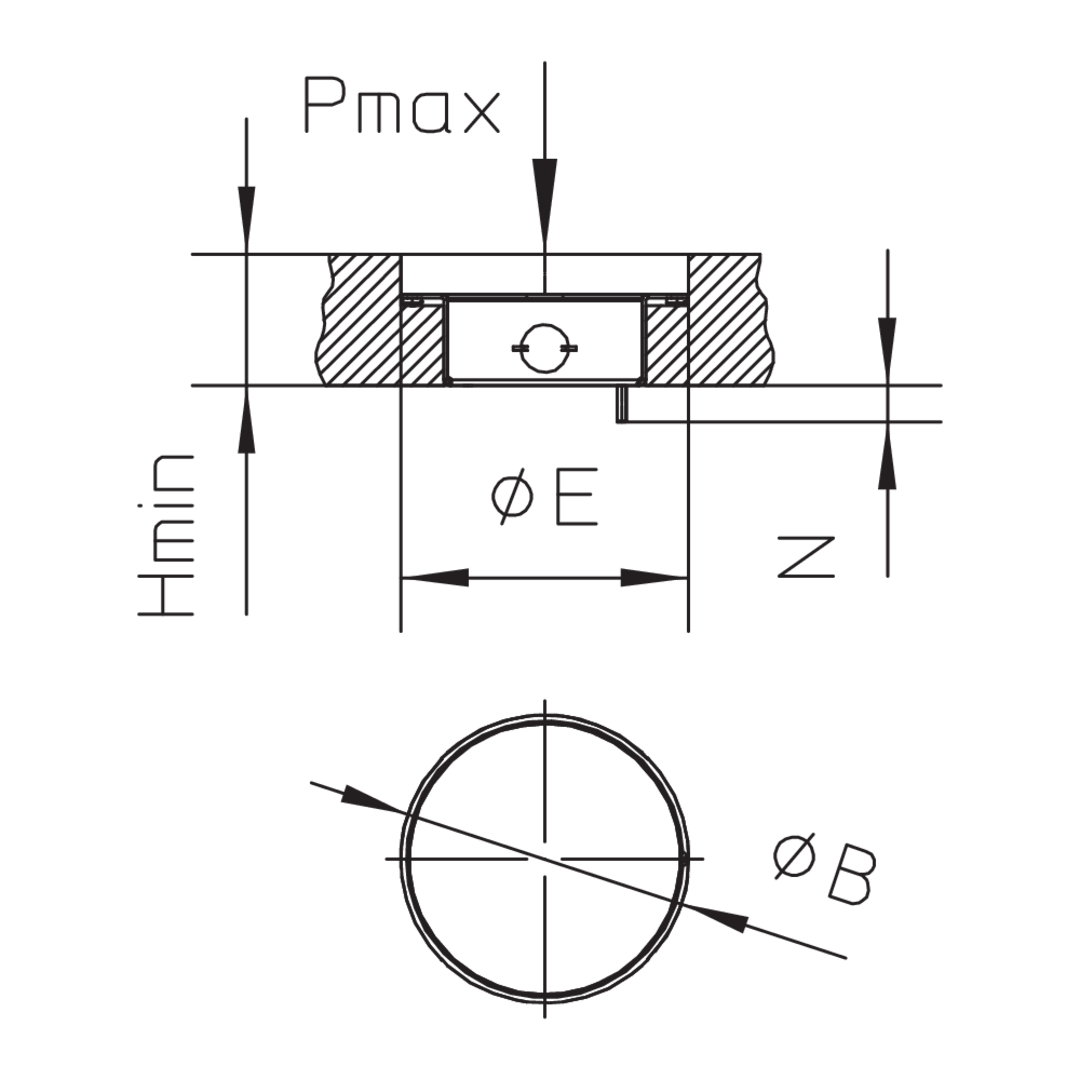

Article

Hmin

B

N

Pmax

E

IPg

IPn

W

  • UBST-R W1-WD
    Floor socket,
    55 mm
    119 mm
    15 mm
    2.00 kN
    125 mm
    IP 43
    IP 66
    0.654 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Brandschutz von elektrischen Leitungsanlagen und Kabelanlagen

    Erklärung

    PDF, 106 KB

    de
    Download

  • DGNB Product Declaration PENTAFLEX®

    Erklärung

    PDF, 59 KB

    de en

  • Units for screed and hollow floors - Technical information

    Technische Information

    PDF, 14 MB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Notice for types of protection and floor maintenance

    Notice for installation units

    PDF, 328 KB

    de en

  • Installation Instructions Cleaning Sockets

    Montageanleitung

    PDF, 335 KB

    en
    Download

  • Eckanbaustück für Weitspannsysteme, Montageanleitung

    Montageanleitung

    PDF, 355 KB

    de
    Download

BIM- and CAD-Data

  • BIM Data Elevator Insulation JAI (RFA)

    BIM Data Elevator Insulation JAI (RFA)

    ZIP, 13 MB

    de en

Included accessories
