Cover plate for data technology

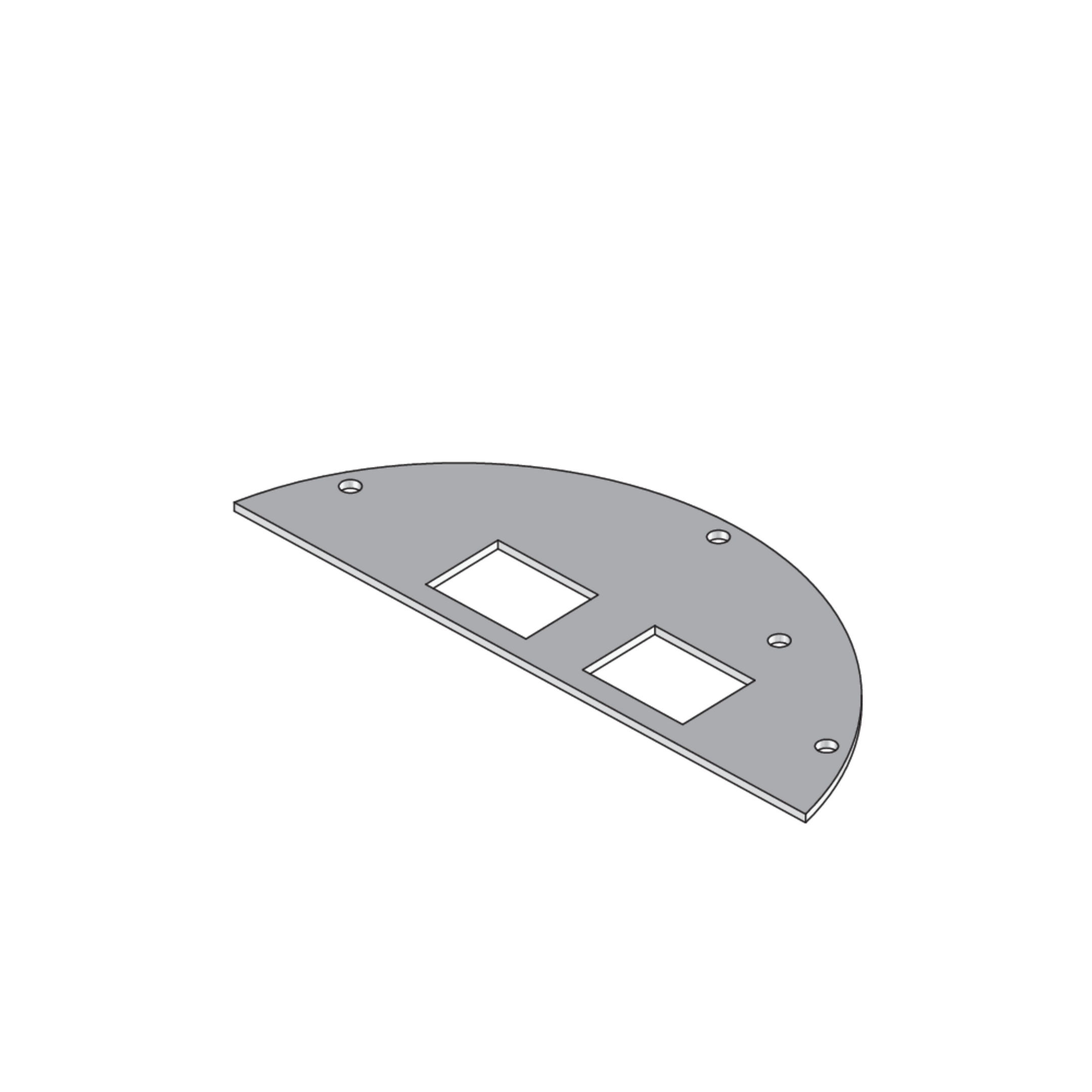

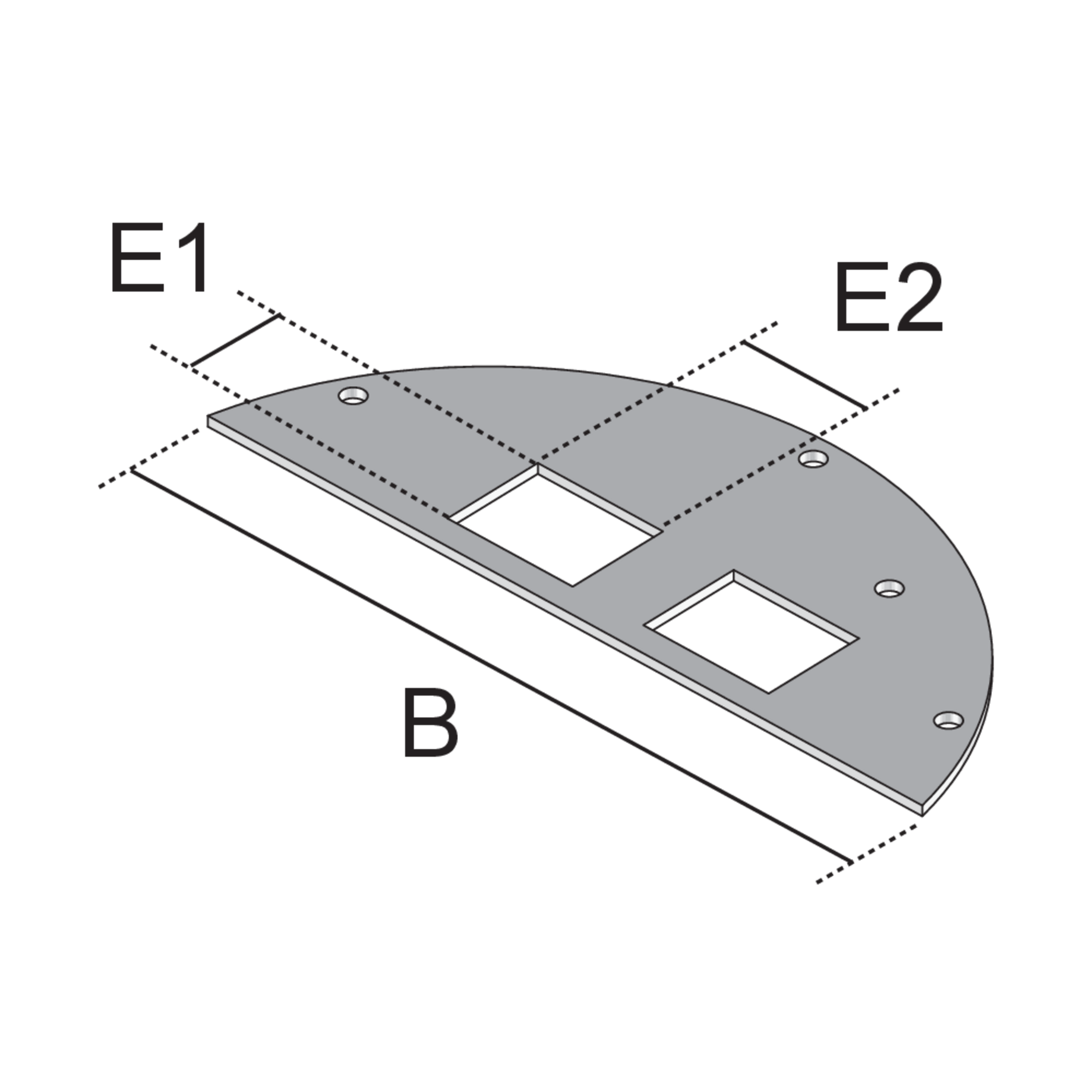

UBE KS components from the underfloor systems range are semicircular cover plates with two rectangular openings. The installation boards for data technology, equipped with two keystone modules, can be bolted into BODO mounting boxes. The cover plates are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. The installation dimension E1 is 14.9 mm and the installation dimension E2 is 19.5 mm.
H
height
B
width
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
