UBE AMPSL TV

Cover plate for data technology

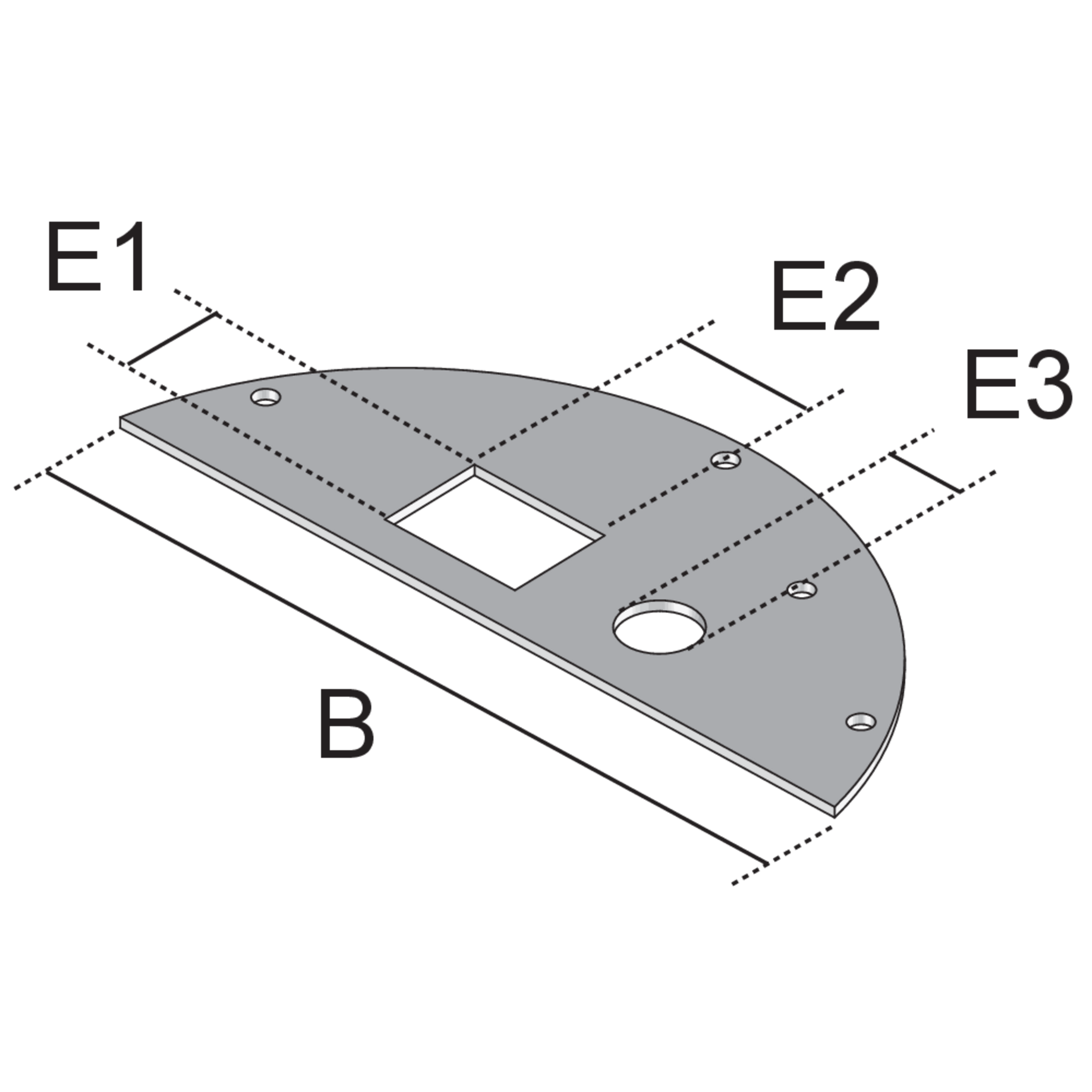

UBE AMPSL TV components from the underfloor systems range are semicircular cover plates with one square and one round opening. The installation boards for data technology, equipped with an AMPSL data module and a TV connection socket, can be bolted into the BODO mounting boxes. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. For the AMPSL data modules, the installation dimension E1 is 20.25 mm, E2 is 14.78 mm and the installation dimension for the TV connection socket E3 is 10.5 mm.

Get in touch Download datasheet

Variants

Article

H

height

B

width

E1

fitting dimension E1

E2

fitting dimension E2

E3

Einbaumaß E3

colour

color

G

Weight per storage unit
  • UBE-AMPSL-TV
    adapter board
    46 mm
    75 mm
    20.25 mm
    14.78 mm
    10.5 mm
    Stahl
    0.013 kg
