STIS

Rung

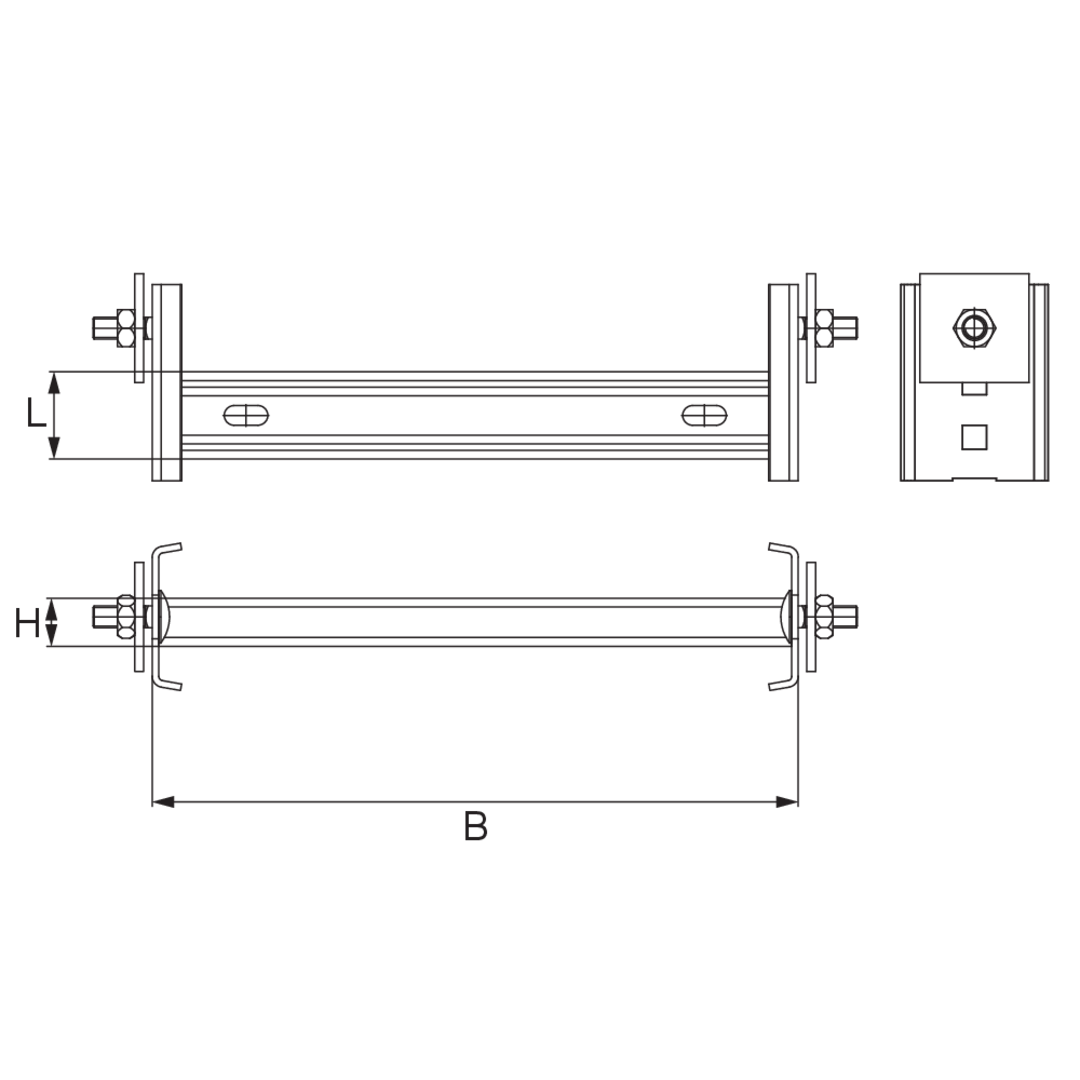

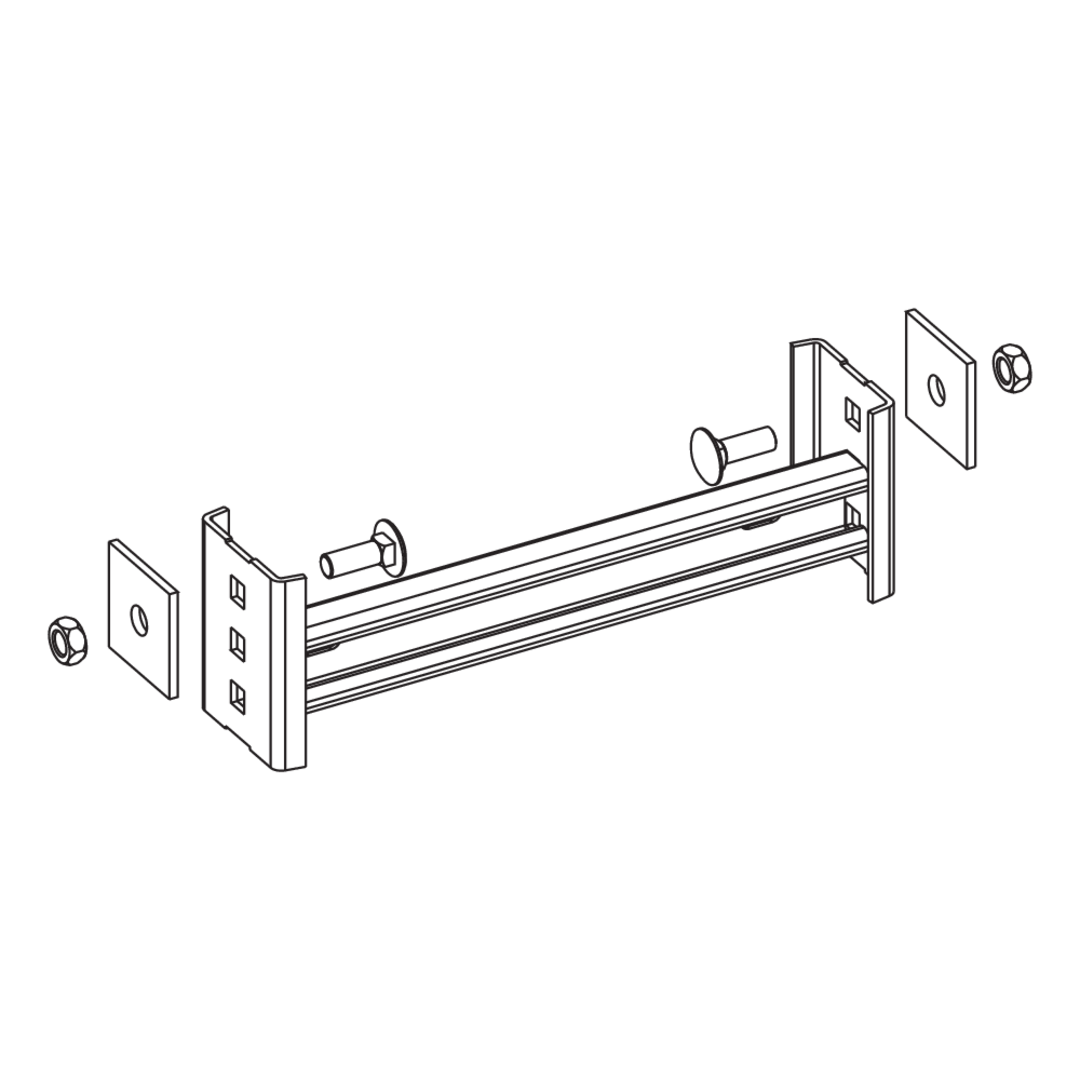

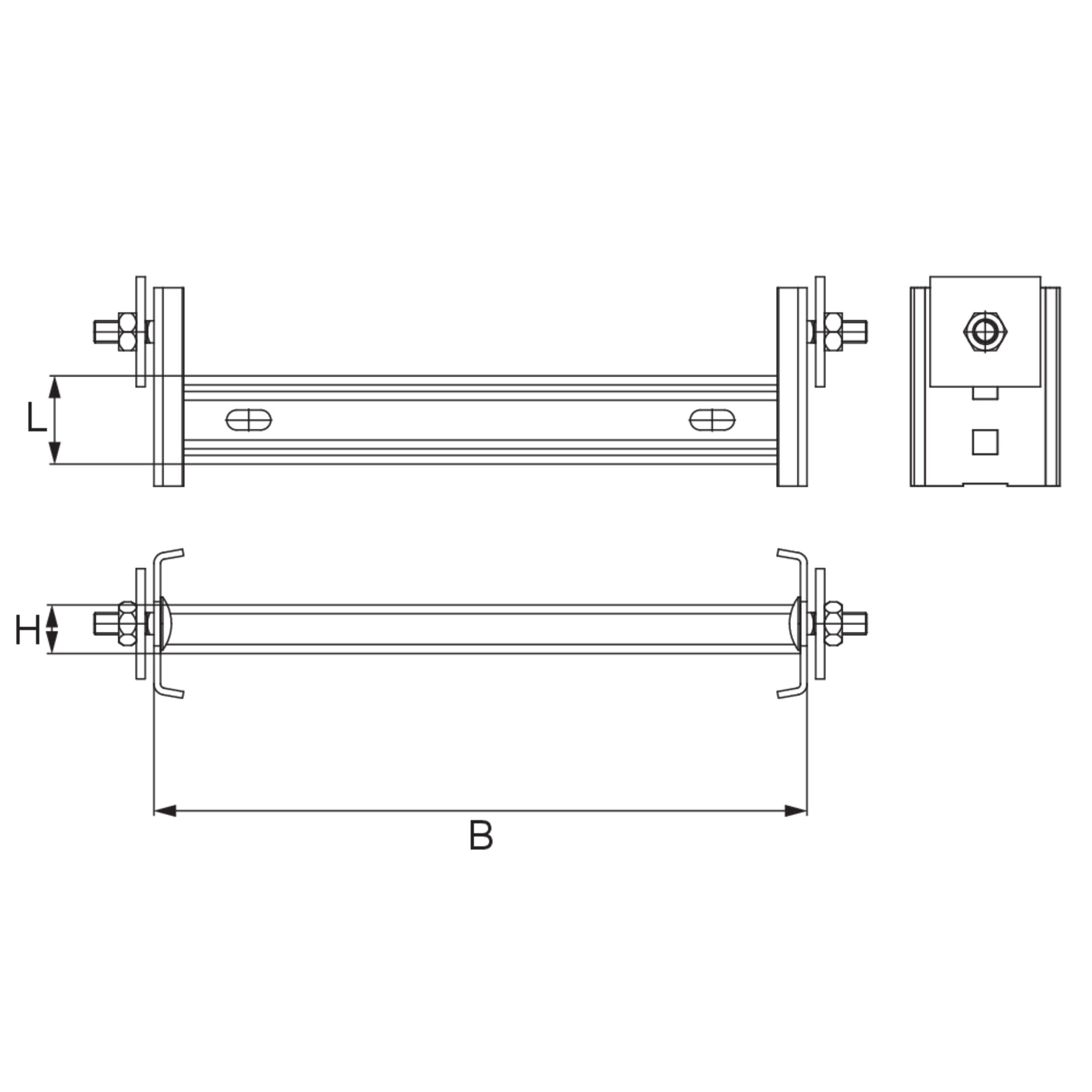

The rungs STIS are installed while fitting the vertical ladder and bolted to the side rail. They are suitable for ST 81 vertical ladders. The rungs are 200 to 1200 wide mm corresponding to the vertical ladder width and are made of hot-dip galvanised steel.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

B

Breite

L

Länge

G

Gewicht je Lagermengeneinheit
  • STIS 02F
    Sprosse 81
    Höhe
    22 mm
    Breite
    200 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    0.887 kg
    Included accessories
    More information
  • STIS 03F
    Sprosse 81
    Höhe
    22 mm
    Breite
    300 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.052 kg
    Included accessories
    More information
  • STIS 04F
    Sprosse 81
    Höhe
    22 mm
    Breite
    400 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.217 kg
    Included accessories
    More information
  • STIS 05F
    Sprosse 81
    Höhe
    22 mm
    Breite
    500 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.382 kg
    Included accessories
    More information
  • STIS 06F
    Sprosse 81
    Höhe
    22 mm
    Breite
    600 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.547 kg
    Included accessories
    More information
  • STIS 07F
    Sprosse 81
    Höhe
    22 mm
    Breite
    700 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.711 kg
    Included accessories
    More information
  • STIS 08F
    Sprosse 81
    Höhe
    22 mm
    Breite
    800 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    1.876 kg
    Included accessories
    More information
  • STIS 09F
    Sprosse 81
    Höhe
    22 mm
    Breite
    900 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    2.041 kg
    Included accessories
    More information
  • STIS 10F
    Sprosse 81
    Höhe
    22 mm
    Breite
    1000 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    2.206 kg
    Included accessories
    More information
  • STIS 11F
    Sprosse 81
    Höhe
    22 mm
    Breite
    1100 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    2.371 kg
    Included accessories
    More information
  • STIS 12F
    Sprosse 81
    Höhe
    22 mm
    Breite
    1200 mm
    Länge
    40 mm
    Gewicht je Lagermengeneinheit
    2.535 kg
    Included accessories
    More information
