SINTON® Z

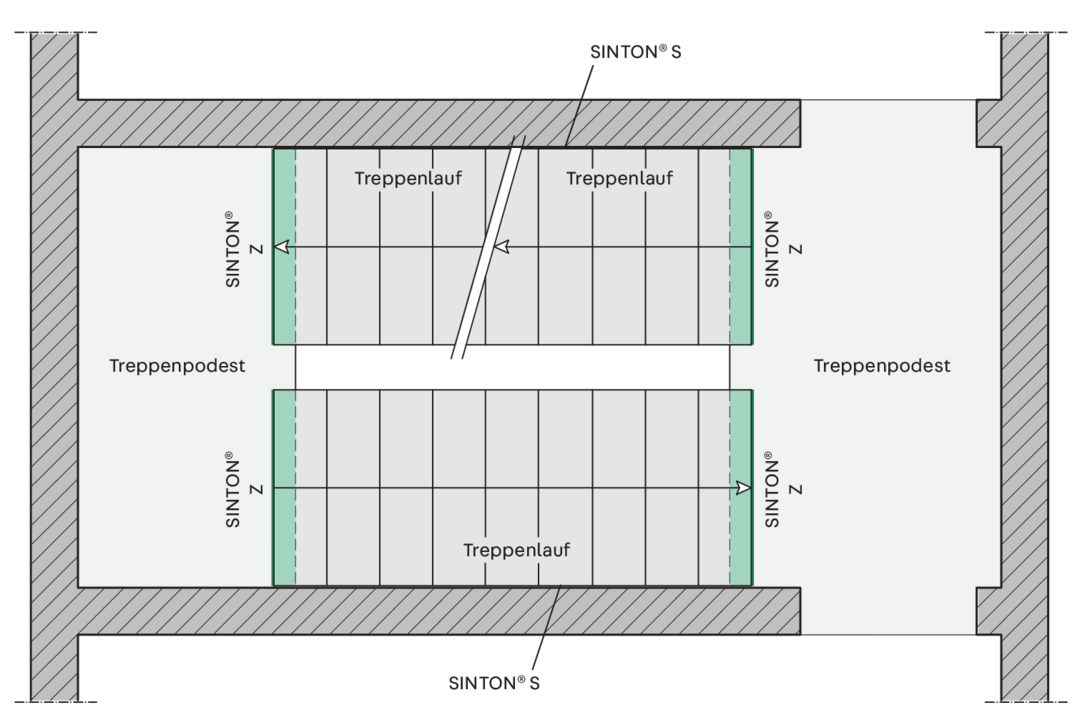

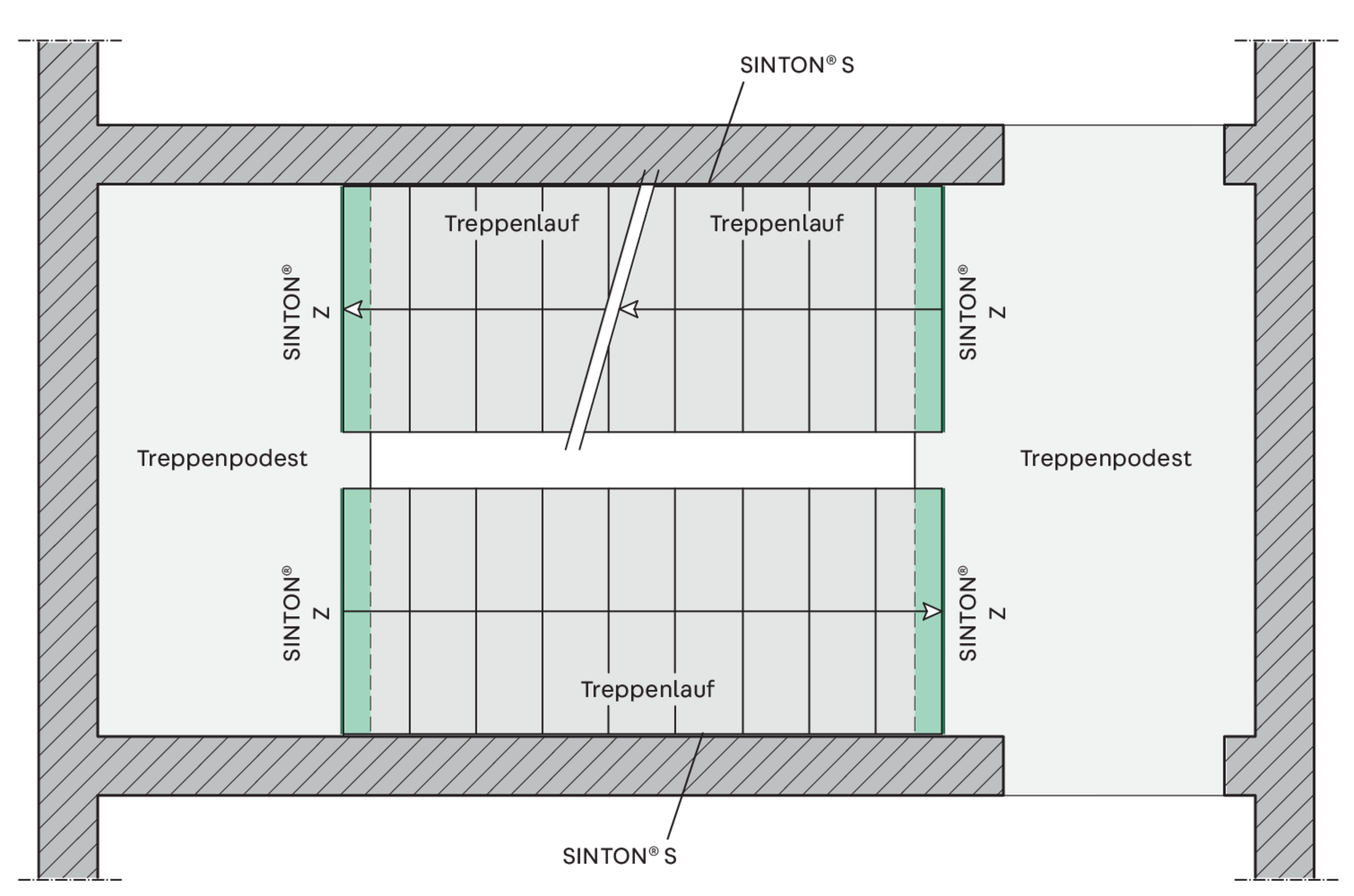

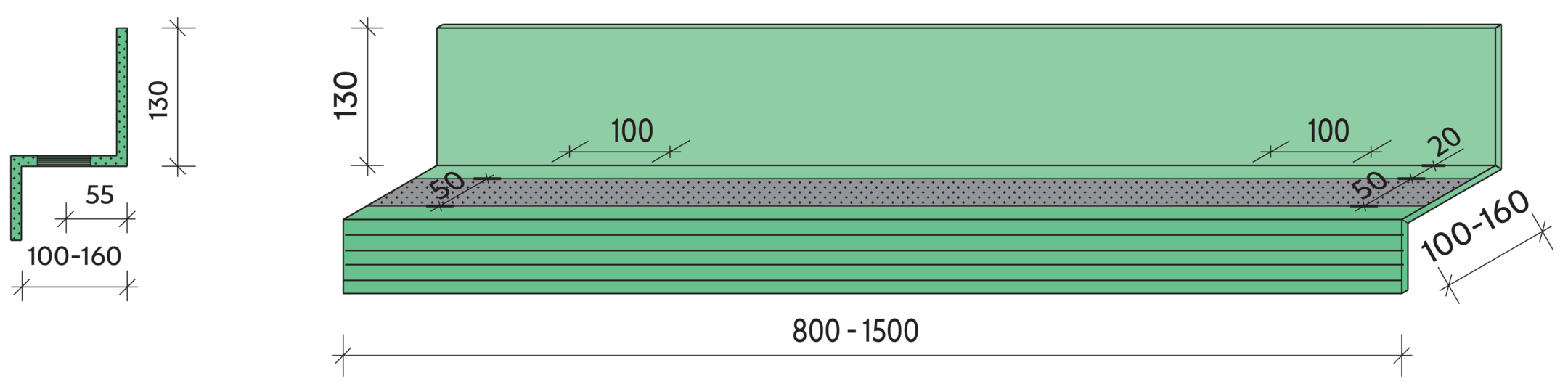

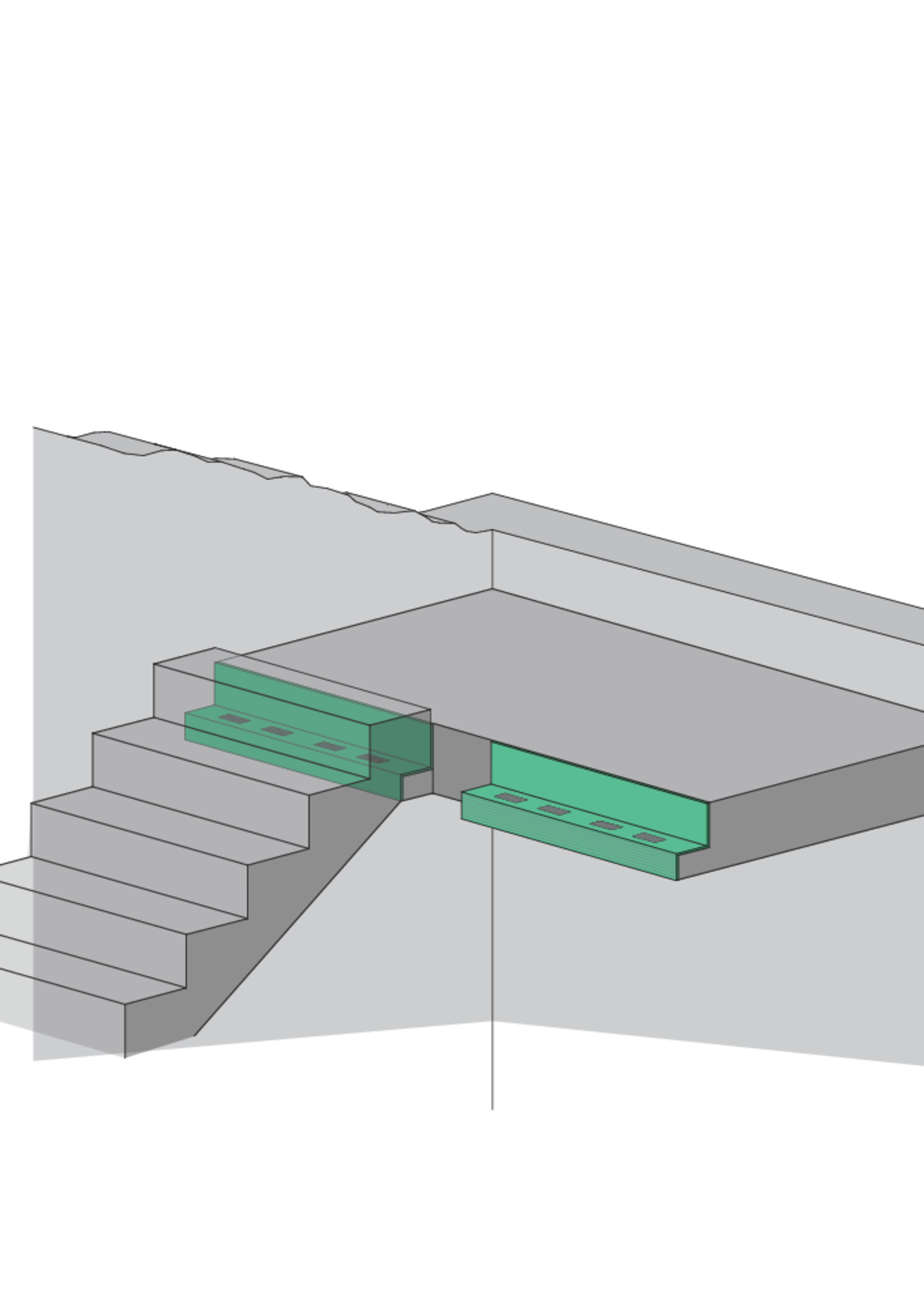

The impact sound insulation element SINTON® Z decouples prefabricated stairs from precast or in-situ concrete landings. A bracket must be constructed to support the stairs on the landing. The sound insulation element consists of a 10 mm thick insulation panel with integrated sound insulation bearings for transmitting positive shear forces. SINTON® Z is available for staircases from 800 to 1500 mm wide.

Get in touchDownload datasheet

Variants

Article

G

Weight per storage unit

Details

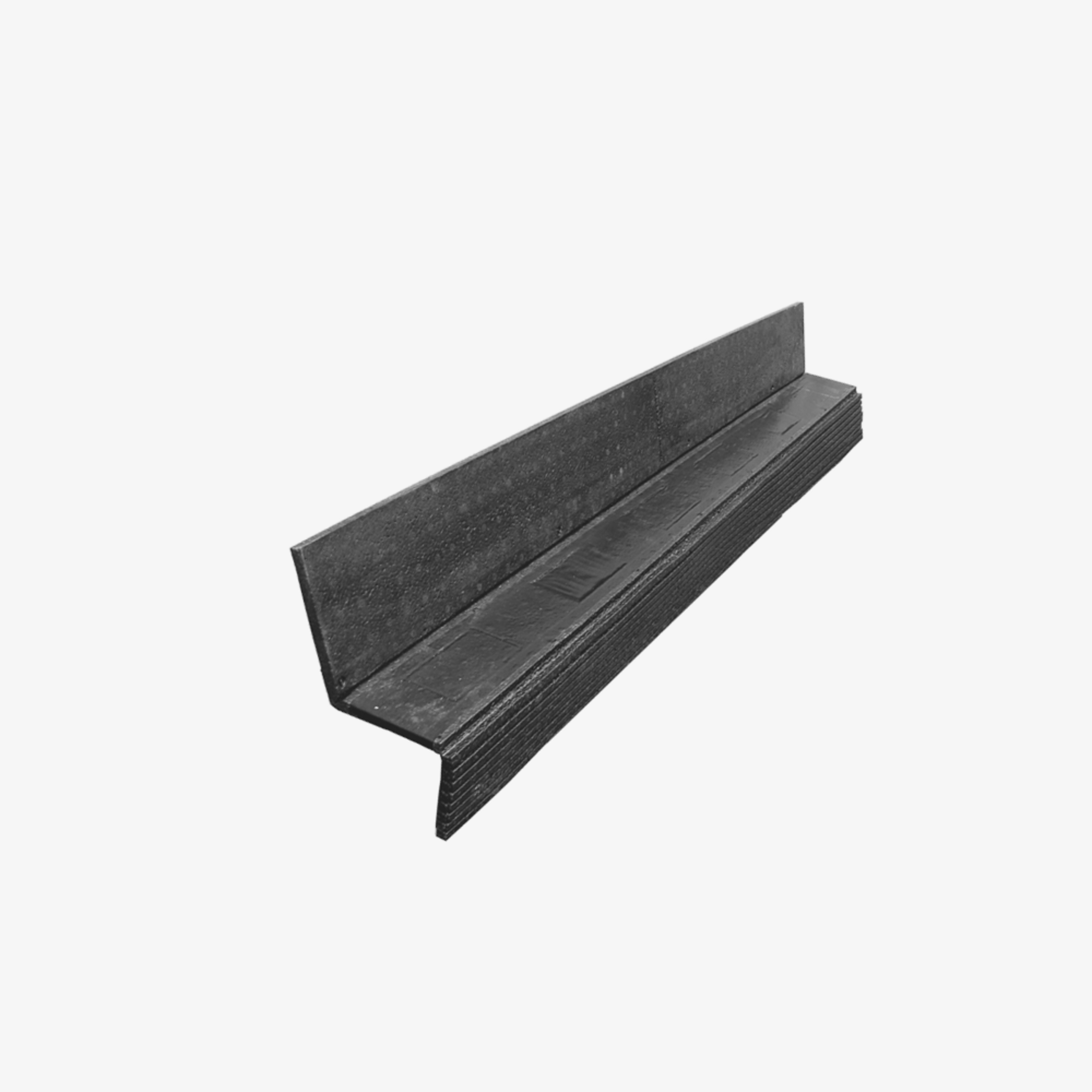

  • Impact sound insulation element consisting of an insulating body made of polypropylene foam with integrated SD ribbed bearings
  • Easy to assemble
  • Easy to adapt to component dimensions
  • High load-bearing capacity
  • Reliable sound insulation

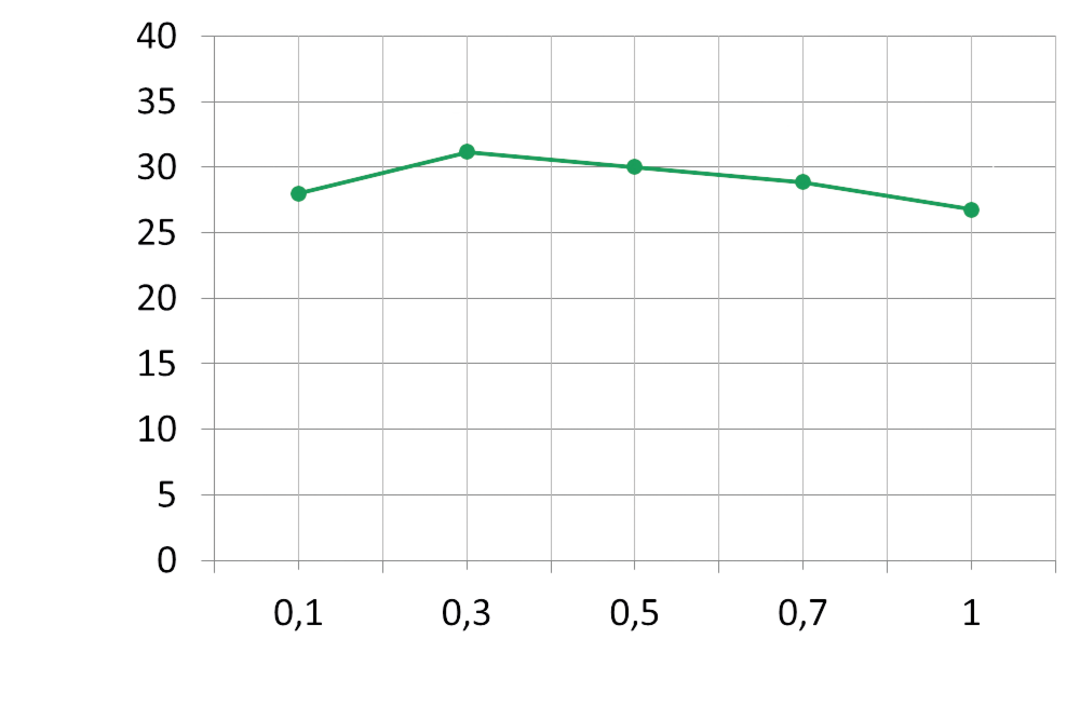

  • Impact sound insulation ∆L*w ≥ 27 dB
  • Meets requirements for increased sound insulation according to DIN 4109-5

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025, updated version from 27/09/2025.

    • de

    • en

    Technical Information SINTON®

    Technical Information

    • de

    • en
