RAPIDOBAT® Cretcon HD

Formwork tube for pore-free concrete surfaces

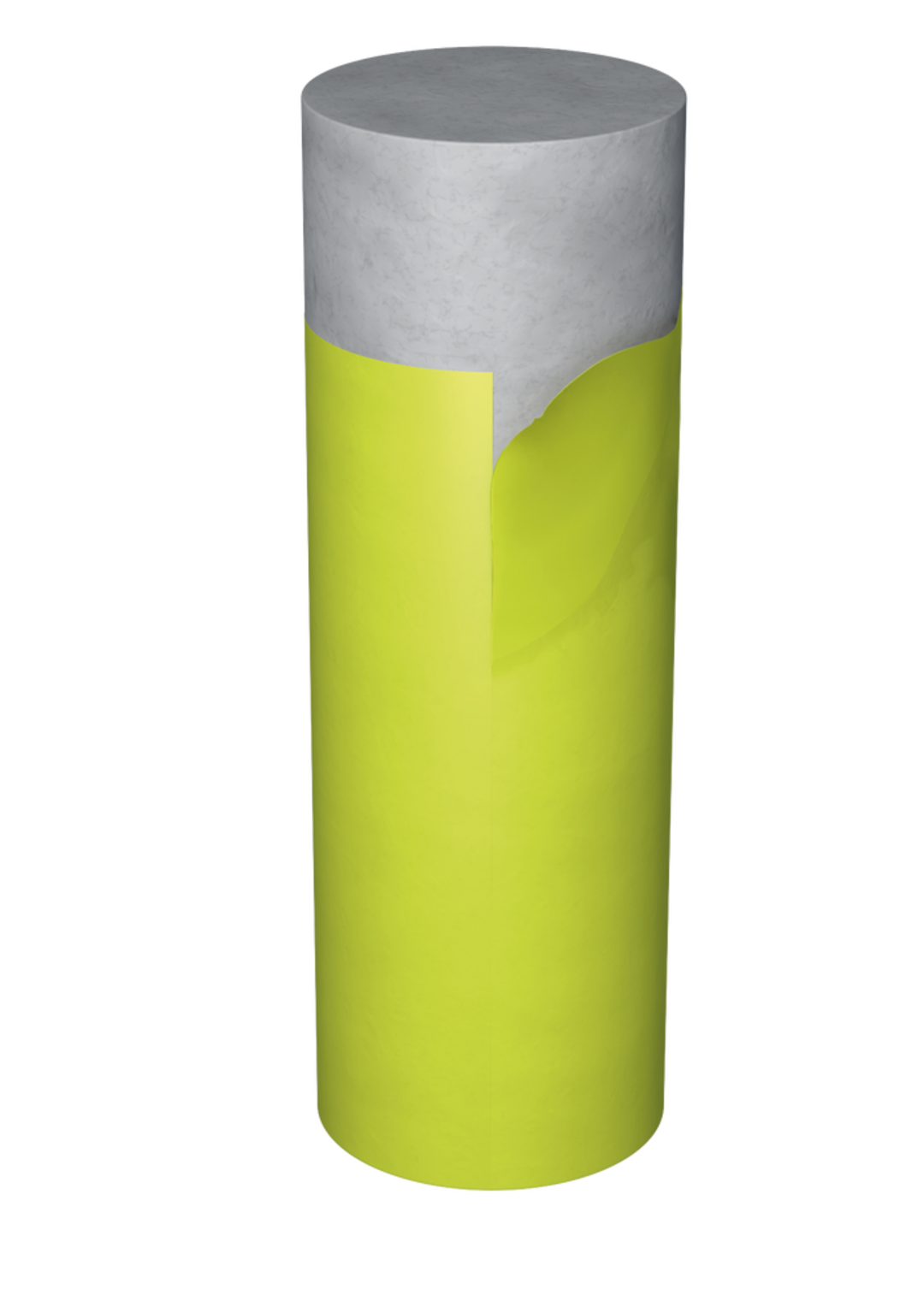

RAPIDOBAT® Cretcon HD is a round formwork tube that produces particularly high-quality concrete columns with the help of an activatable hydrogel formlining skin. The concrete surface achieves the highest exposed concrete class SB 4, the highest porosity class P 4 and the highest colour uniformity class FT 3, among other things. The formwork tubes consist of multi-layered paper and cardboard sheets that retain their shape even in driving rain. They have an integrated ripcord for easy stripping of the formwork. We provide this component with inner diameters from 200 to 800 mm and a stock length of up to 7000 mm. Other diameters and lengths are available on request.

Variants

Article

HF

Formwork height

Ø ext

Outer diameter

Ø

inner diameter

G

Weight per storage unit

  • 310300001830
    RAC 200-m
    Formwork height
    7000 mm
    Outer diameter
    207 mm
    inner diameter
    200 mm
    Weight per storage unit
    2.094 kg
  • 310300001832
    RAC 240-m
    Formwork height
    7000 mm
    Outer diameter
    247 mm
    inner diameter
    240 mm
    Weight per storage unit
    2.905 kg
  • 310300001833
    RAC 250-m
    Formwork height
    7000 mm
    Outer diameter
    257 mm
    inner diameter
    250 mm
    Weight per storage unit
    3.025 kg
  • 310300001835
    RAC 300-m
    Formwork height
    7000 mm
    Outer diameter
    309 mm
    inner diameter
    300 mm
    Weight per storage unit
    3.985 kg
  • 310300001837
    RAC 350-m
    Formwork height
    7000 mm
    Outer diameter
    359 mm
    inner diameter
    350 mm
    Weight per storage unit
    5.016 kg
  • 310300001838
    RAC 360-m
    Formwork height
    7000 mm
    Outer diameter
    369 mm
    inner diameter
    360 mm
    Weight per storage unit
    5.362 kg
  • 310300001839
    RAC 400-m
    Formwork height
    7000 mm
    Outer diameter
    409 mm
    inner diameter
    400 mm
    Weight per storage unit
    6.168 kg
  • 310300001840
    RAC 435-m
    Formwork height
    7000 mm
    Outer diameter
    444 mm
    inner diameter
    435 mm
    Weight per storage unit
    6.688 kg
  • 310300001841
    RAC 450-m
    Formwork height
    7000 mm
    Outer diameter
    461 mm
    inner diameter
    450 mm
    Weight per storage unit
    7.923 kg
  • 310300001842
    RAC 500-m
    Formwork height
    7000 mm
    Outer diameter
    513 mm
    inner diameter
    500 mm
    Weight per storage unit
    9.620 kg
  • 310300013184
    RAC 550-m
    Formwork height
    7000 mm
    Outer diameter
    563 mm
    inner diameter
    550 mm
    Weight per storage unit
    10.590 kg
  • 310300001843
    RAC 560-m
    Formwork height
    7000 mm
    Outer diameter
    573 mm
    inner diameter
    560 mm
    Weight per storage unit
    10.775 kg
  • 310300001844
    RAC 600-m
    Formwork height
    7000 mm
    Outer diameter
    613 mm
    inner diameter
    600 mm
    Weight per storage unit
    11.554 kg
  • 310300001845
    RAC 650-m
    Formwork height
    7000 mm
    Outer diameter
    665 mm
    inner diameter
    650 mm
    Weight per storage unit
    13.948 kg
  • 310300001846
    RAC 700-m
    Formwork height
    7000 mm
    Outer diameter
    715 mm
    inner diameter
    700 mm
    Weight per storage unit
    15.040 kg
  • 310300001847
    RAC 750-m
    Formwork height
    7000 mm
    Outer diameter
    767 mm
    inner diameter
    750 mm
    Weight per storage unit
    17.762 kg
  • 310300001848
    RAC 800-m
    Formwork height
    7000 mm
    Outer diameter
    817 mm
    inner diameter
    800 mm
    Weight per storage unit
    20.746 kg

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link


Downloads

  • Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    PDF, 18 MB

    de en
  • RAPIDOBAT® formwork tubes - Technical information

    Technical information

    PDF, 2 MB

    de en
  • DGNB Product Declaration RAPIDOBAT® Formwork Tubes (NBV09)

    Erklärung

    PDF, 177 KB

  • DGNB Product Declaration RAPIDOBAT® Formwork Tubes (NBV12)

    Erklärung

    PDF, 367 KB


Included accessories

Services: From planning to utilisation

We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

Consulting, planning, design

Customised solutions
