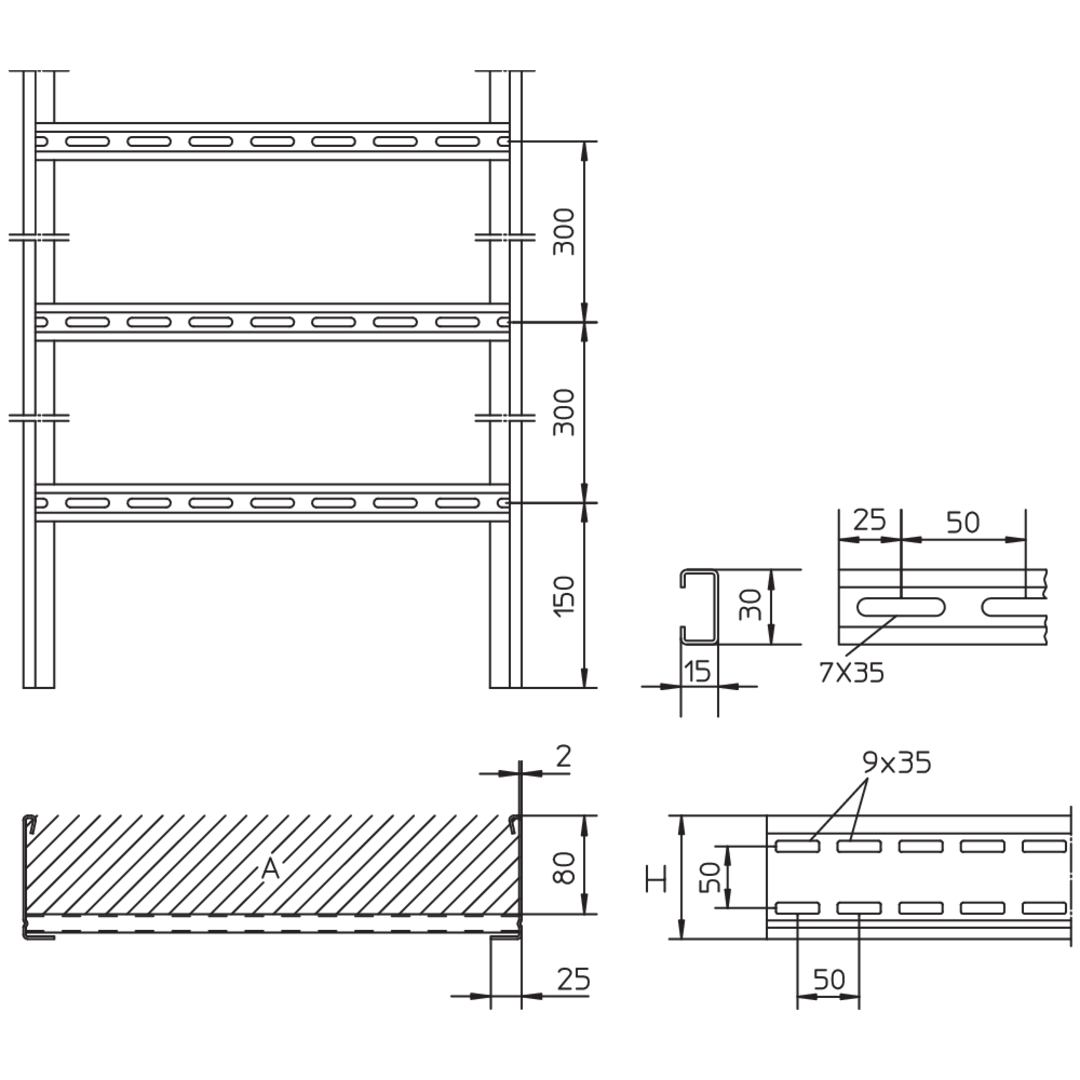

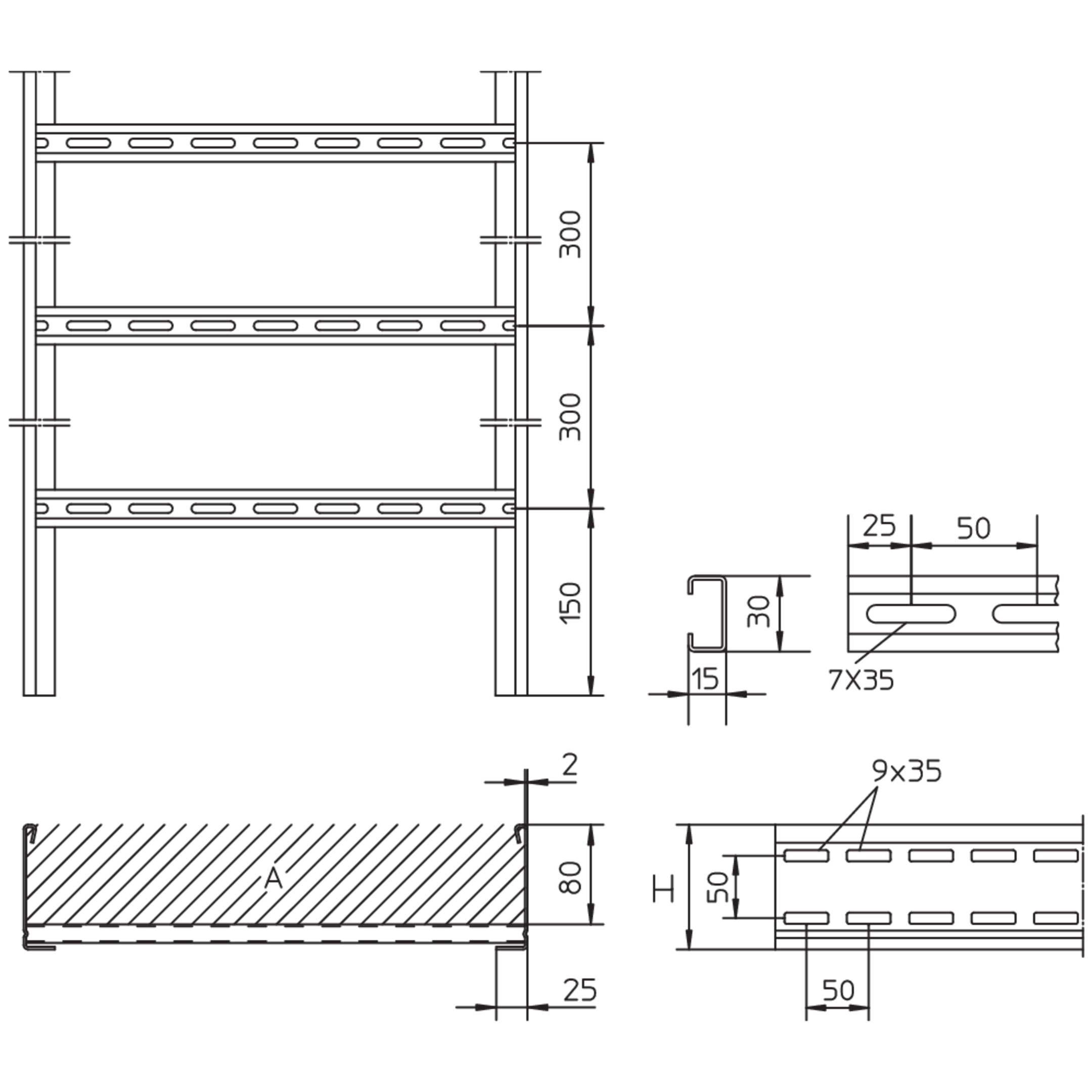

LGGS 100

Cable ladder, L profile, heavy, height = 100 mm

The perforated and welded cable ladders LGGS 100 have rails 100 mm high and are available in ladder widths of 200 to 600 mm and in lengths of 3000 and 6000 mm. The rungs consist of profile rails (30 x 15 mm). We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Betreten verboten
Get in touch Download datasheet

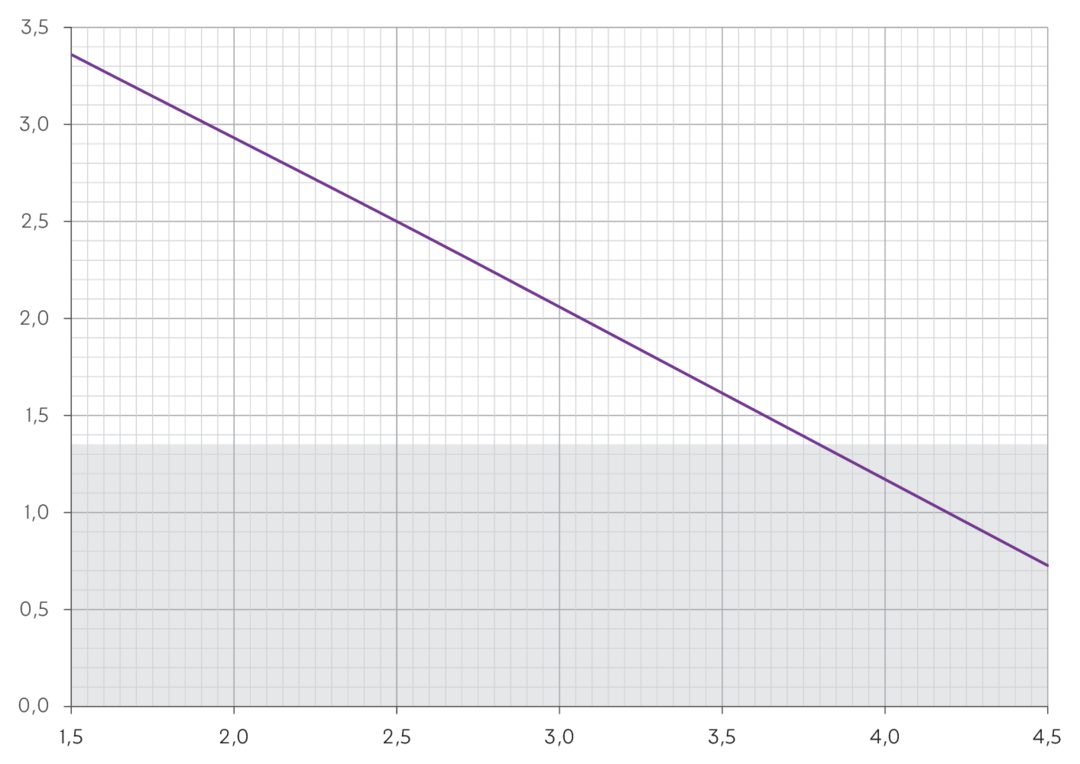

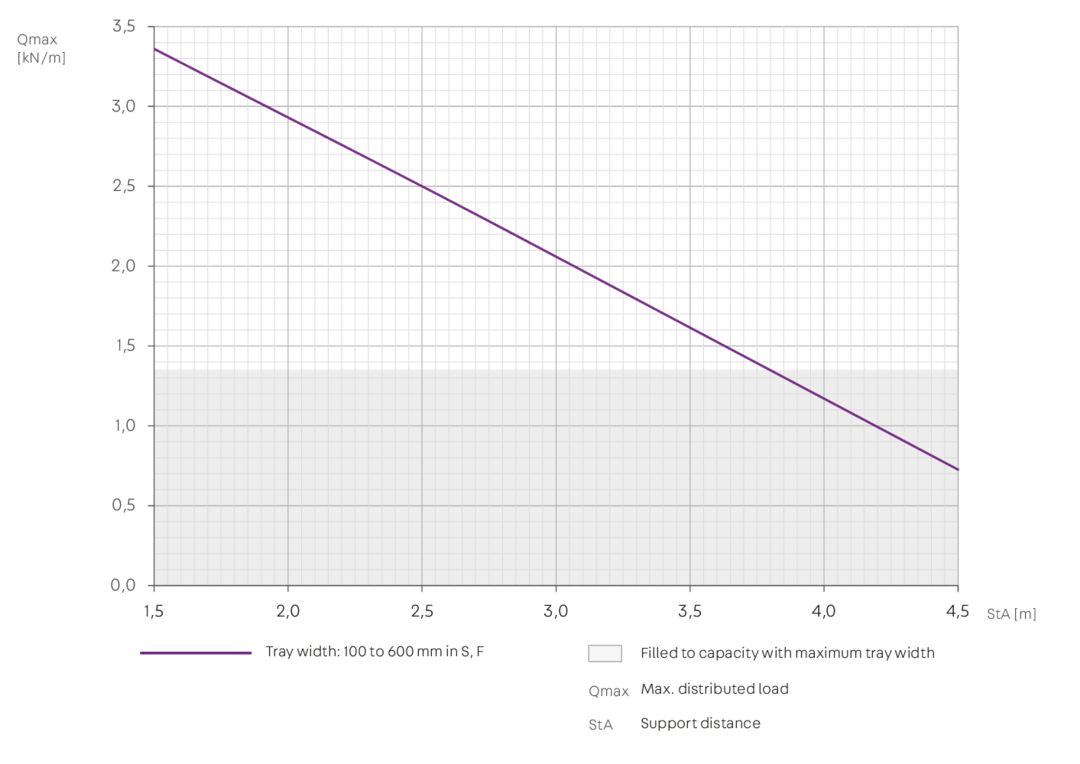

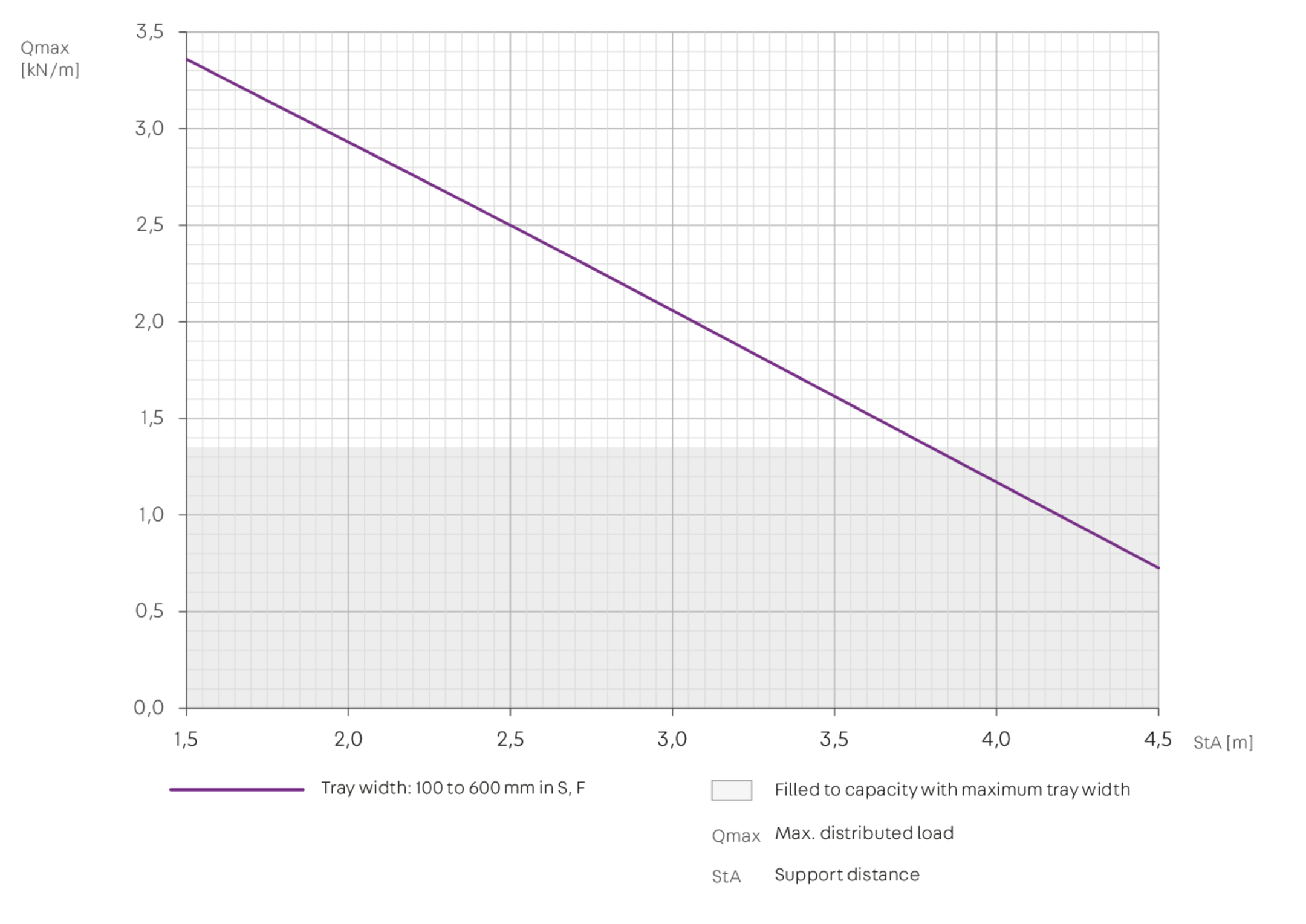

Variants

Article

steel, continously hot galvanized/Sendzimir process

Article

H

HH

B

L

QLK

A

W

  • LGGS 100-20-3S
    cable ladder LGGS 100-20-3S
    100 mm
    100 mm
    200 mm
    3000 mm
    0.45 kN/m
    161 cm2
    13.580 kg
    More information
  • LGGS 100-30-3S
    cable ladder LGGS 100-30-3S
    100 mm
    100 mm
    300 mm
    3000 mm
    0.68 kN/m
    242 cm2
    14.460 kg
    More information
  • LGGS 100-40-3S
    cable ladder LGGS 100-40-3S
    100 mm
    100 mm
    400 mm
    3000 mm
    0.9 kN/m
    322 cm2
    15.350 kg
    More information
  • LGGS 100-50-3S
    cable ladder LGGS 100-50-3S
    100 mm
    100 mm
    500 mm
    3000 mm
    1.13 kN/m
    403 cm2
    16.230 kg
    More information
  • LGGS 100-60-3S
    cable ladder LGGS 100-60-3S
    100 mm
    100 mm
    600 mm
    3000 mm
    1.35 kN/m
    483 cm2
    17.120 kg
    More information
  • LGGS 100-20S
    cable ladder LGGS 100-20S
    100 mm
    100 mm
    200 mm
    6000 mm
    0.45 kN/m
    161 cm2
    27.160 kg
    More information
  • LGGS 100-30S
    cable ladder LGGS 100-30S
    100 mm
    100 mm
    300 mm
    6000 mm
    0.68 kN/m
    242 cm2
    28.930 kg
    More information
  • LGGS 100-40S
    cable ladder LGGS 100-40S
    100 mm
    100 mm
    400 mm
    6000 mm
    0.9 kN/m
    322 cm2
    30.700 kg
    More information
  • LGGS 100-50S
    cable ladder LGGS 100-50S
    100 mm
    100 mm
    500 mm
    6000 mm
    1.13 kN/m
    403 cm2
    32.470 kg
    More information
  • LGGS 100-60S
    cable ladder LGGS 100-60S
    100 mm
    100 mm
    600 mm
    6000 mm
    1.35 kN/m
    483 cm2
    34.230 kg
    More information

steel, batch/hot-dip galvanized

Article

H

HH

B

L

QLK

A

W

  • LGGS 100-20-3F
    cable ladder LGGS 100-20-3F
    100 mm
    100 mm
    200 mm
    3000 mm
    0.45 kN/m
    161 cm2
    14.530 kg
    More information
  • LGGS 100-30-3F
    cable ladder LGGS 100-30-3F
    100 mm
    100 mm
    300 mm
    3000 mm
    0.68 kN/m
    242 cm2
    15.785 kg
    More information
  • LGGS 100-40-3F
    cable ladder LGGS 100-40-3F
    100 mm
    100 mm
    400 mm
    3000 mm
    0.9 kN/m
    322 cm2
    16.420 kg
    More information
  • LGGS 100-50-3F
    cable ladder LGGS 100-50-3F
    100 mm
    100 mm
    500 mm
    3000 mm
    1.13 kN/m
    403 cm2
    17.370 kg
    More information
  • LGGS 100-60-3F
    cable ladder LGGS 100-60-3F
    100 mm
    100 mm
    600 mm
    3000 mm
    1.35 kN/m
    483 cm2
    18.320 kg
    More information
  • LGGS 100-20F
    cable ladder LGGS 100-20F
    100 mm
    100 mm
    200 mm
    6000 mm
    0.45 kN/m
    161 cm2
    29.050 kg
    More information
  • LGGS 100-30F
    cable ladder LGGS 100-30F
    100 mm
    100 mm
    300 mm
    6000 mm
    0.68 kN/m
    242 cm2
    30.930 kg
    More information
  • LGGS 100-40F
    cable ladder LGGS 100-40F
    100 mm
    100 mm
    400 mm
    6000 mm
    0.9 kN/m
    322 cm2
    32.820 kg
    More information
  • LGGS 100-50F
    cable ladder LGGS 100-50F
    100 mm
    100 mm
    500 mm
    6000 mm
    1.13 kN/m
    403 cm2
    34.700 kg
    More information
  • LGGS 100-60F
    cable ladder LGGS 100-60F
    100 mm
    100 mm
    600 mm
    6000 mm
    1.35 kN/m
    483 cm2
    36.100 kg
    More information

Details

  • Betreten verboten

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Accessories

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

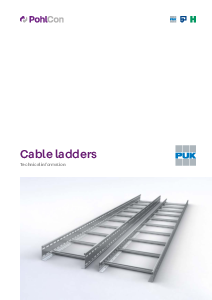

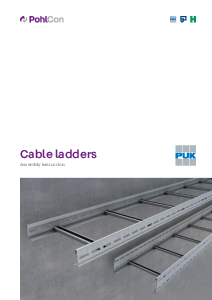

  • Cable ladders - Assembly instructions
