KB

Junction plate

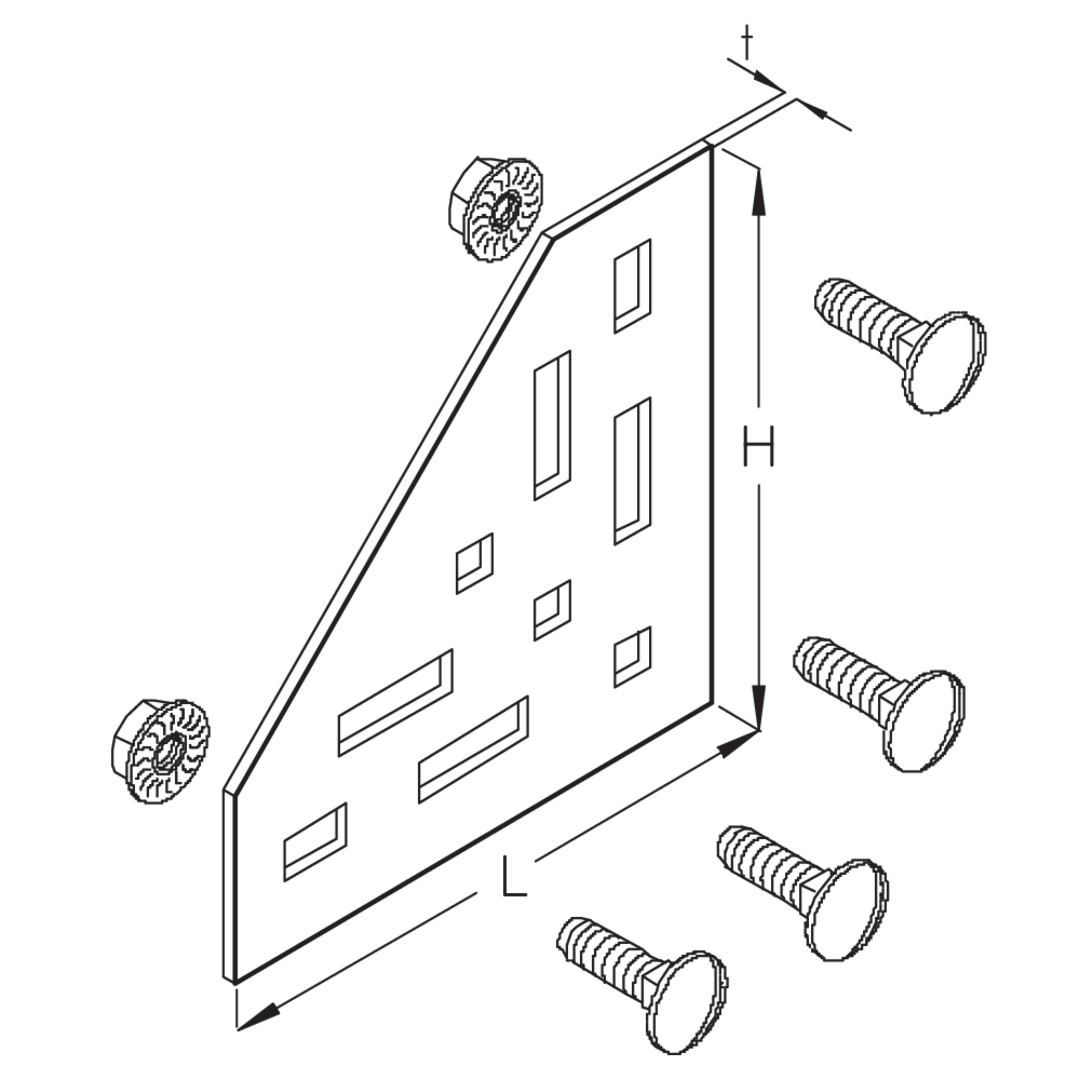

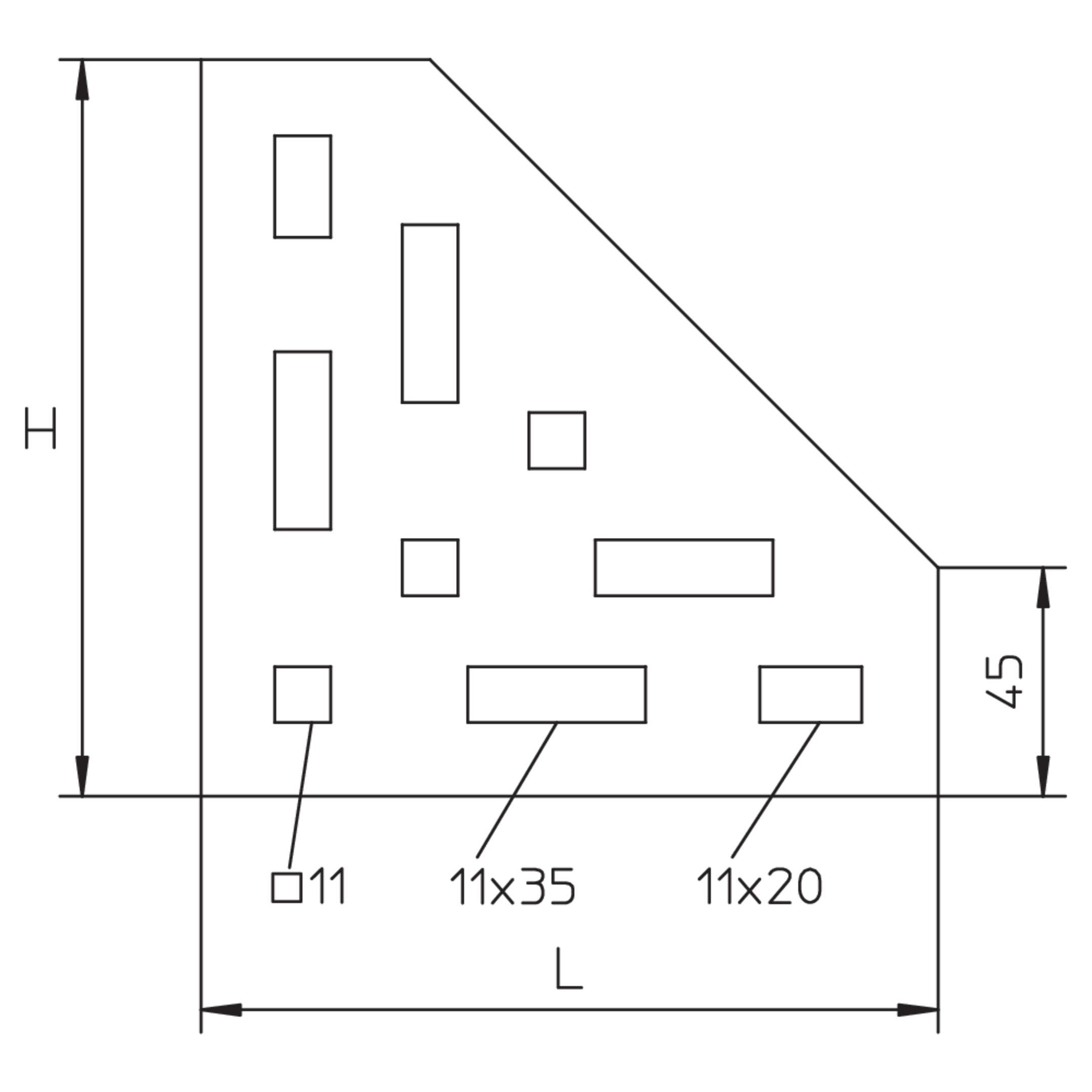

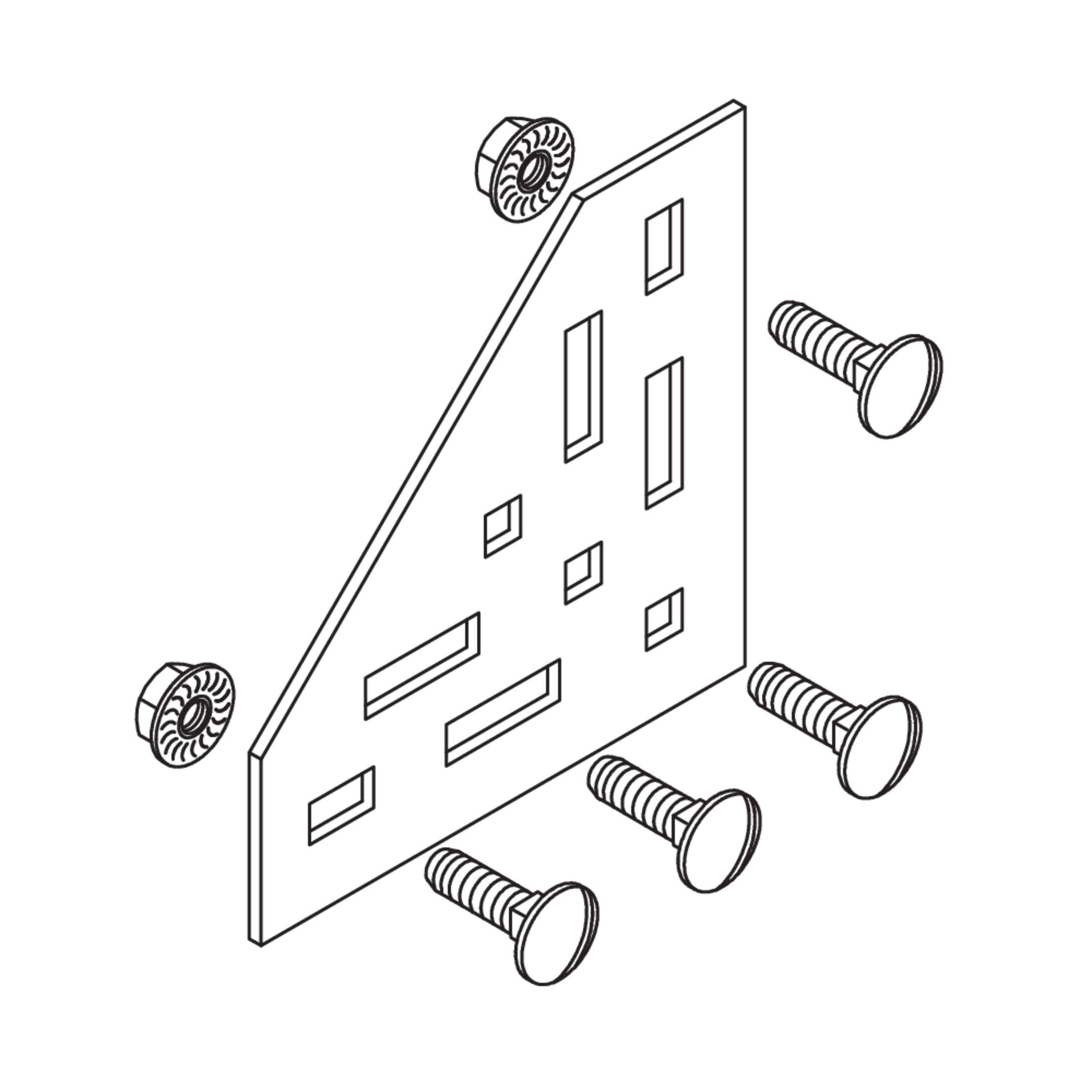

The junction plate KB is used to connect U profiles with corner bracing. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

Get in touch Download datasheet

Variants

Stahl, stück-/tauchfeuerverzinkt

Article

H

Höhe

L

Länge

t

Materialstärke

W

Winkel

G

Gewicht je Lagermengeneinheit
  • KB F
    Knotenblech
    Höhe
    150 mm
    Länge
    150 mm
    Materialstärke
    3.00 mm
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    0.484 kg
    Included accessories
    More information

Edelstahl, Werkstoff Nr. 1.4301 (V2A)

Article

H

Höhe

L

Länge

t

Materialstärke

W

Winkel

G

Gewicht je Lagermengeneinheit
  • KB E
    Knotenblech
    Höhe
    150 mm
    Länge
    150 mm
    Materialstärke
    2.00 mm
    Winkel
    90°
    Gewicht je Lagermengeneinheit
    0.464 kg
    Included accessories
    More information
