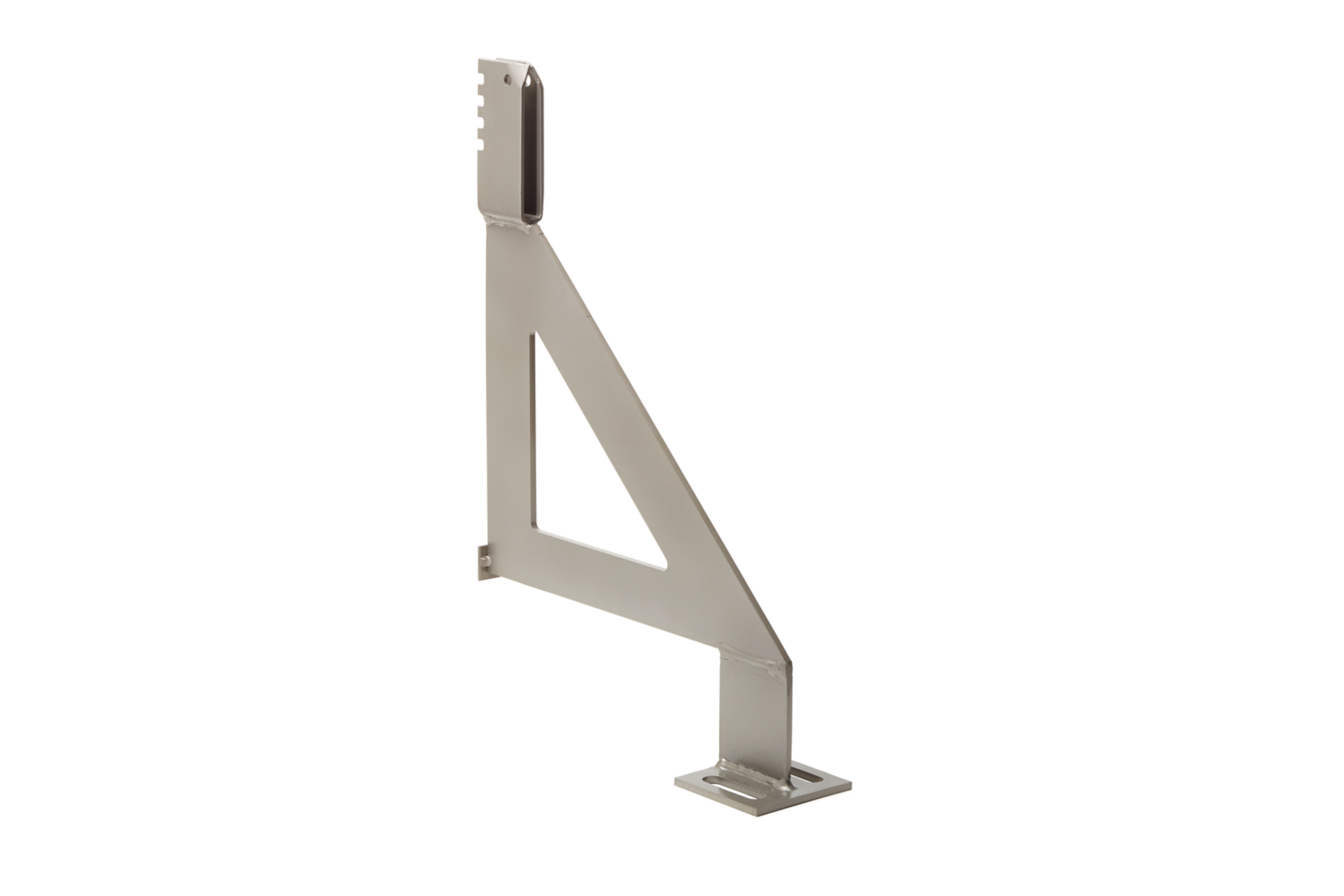

The brickwork support bracket JVAeco+ NAFT has general building authority approval and is available in the standard cantilever lengths of 130 or 150 to 390 mm and in several load levels. The JVAeco+ NAFT can be adjusted vertically by ±30 mm and perfectly aligned using the teeth in the bracket head and a slanted slit plate. The anchor channel can be horizontally adjusted. This allows structural tolerances to be perfectly compensated. The JVAeco+ NAFT is made of stainless steel Lean Duplex in corrosion resistance class III. This ensures maintenance-free use.
B
width
L
length
N
levelling range
G
Weight per storage unit
Price list 2025 Shell construction / facade
Valid from February 1, 2025
PDF, 18 MB
Technical information Systems for Facing Masonry
Brickwork support brackets, angled brackets, cavity wall anchors, parapet brick anchors and accessories
PDF, 35 MB
Type Approval JVAeco+
Test report no. TP-12-0009, bracket body of the JVA+ and JVAeco+ brickwork support bracket
PDF, 3 MB
EPD Environmental Product Declaration JVA eco+
Environmental product declaration for JVAeco+ brickwork support console
PDF, 2 MB
Installation Instruction JVAeco+
Installation Instructions for brickwork support bracket JVAeco+
PDF, 1 MB
EXPERT Software JVAeco+
for brickwork support bracket JVAeco+, version 2.6.1
ZIP, 6 MB
Library customer details
For brackets, framework anchors, angles
ZIP, 59 MB
CAD for brickwork support brackets
DWG format brickwork support brackets: JVAeco+N/NA/NU, JVAeco+NFT/NAFT, JVAeco+P/PAR, JVAeco+E/EA, JVAeco+F/FAR, JAW, JW, L-F, L-DF, L-DN, JFT, JGS, JRH
ZIP, 59 MB
Anzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
