JKW

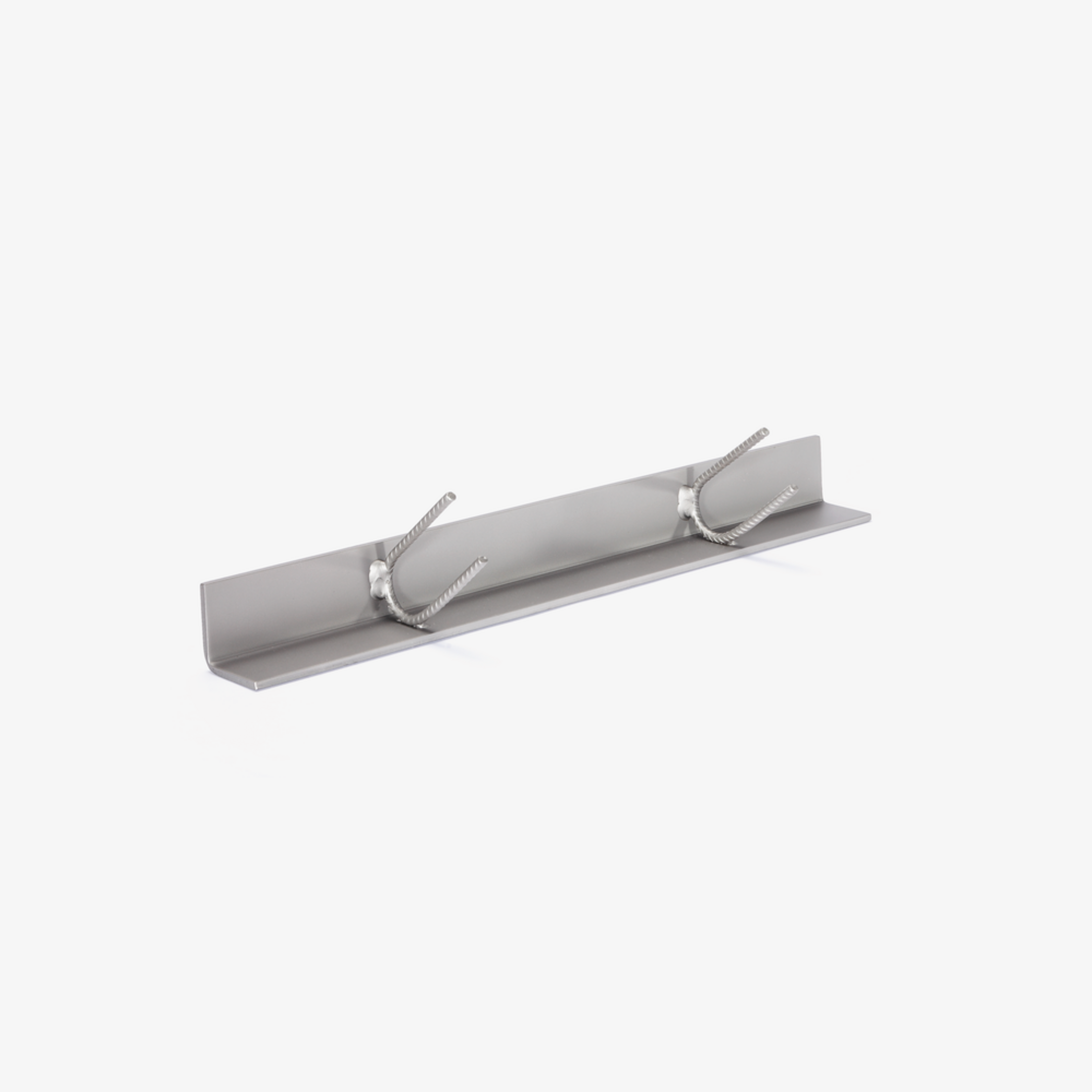

Edge protection angle to protect corners from damage

The edge protection angle JKW is made of hot-dip galvanised steel (fv) or stainless steel (A4). It is available in lengths of 500 to 2000 mm and with two to four associated anchors.

Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

G

Weight per storage unit

  • KW10061000
    JORDAHL edge protectors angle 100/6
    height
    180 mm
    width
    180 mm
    length
    1000 mm
    Weight per storage unit
    10.010 kg
    More information
  • KW10061500
    JORDAHL edge protectors angle 100/6
    height
    180 mm
    width
    180 mm
    length
    1500 mm
    Weight per storage unit
    14.960 kg
    More information
  • KW10062000
    JORDAHL edge protectors angle 100/6
    height
    180 mm
    width
    180 mm
    length
    2000 mm
    Weight per storage unit
    20.020 kg
    More information
  • KW1006500
    JORDAHL edge protectors angle 100/6
    height
    180 mm
    width
    180 mm
    length
    500 mm
    Weight per storage unit
    5.170 kg
    More information
  • KW1006750
    JORDAHL edge protectors angle 100/6
    height
    180 mm
    width
    180 mm
    length
    750 mm
    Weight per storage unit
    7.590 kg
    More information
  • KW10081000
    JORDAHL edge protectors angle 100/8
    height
    180 mm
    width
    180 mm
    length
    1000 mm
    Weight per storage unit
    13.090 kg
    More information
  • KW10081500
    JORDAHL edge protectors angle 100/8
    height
    180 mm
    width
    180 mm
    length
    1500 mm
    Weight per storage unit
    19.580 kg
    More information
  • KW10082000
    JORDAHL edge protectors angle 100/8
    height
    180 mm
    width
    180 mm
    length
    2000 mm
    Weight per storage unit
    26.070 kg
    More information
  • KW1008500
    JORDAHL edge protectors angle 100/8
    height
    180 mm
    width
    180 mm
    length
    500 mm
    Weight per storage unit
    6.710 kg
    More information
  • KW1008750
    JORDAHL edge protectors angle 100/8
    height
    180 mm
    width
    180 mm
    length
    750 mm
    Weight per storage unit
    9.900 kg
    More information
  • KW5051000
    JORDAHL edge protectors angle 50/5
    height
    120 mm
    width
    120 mm
    length
    1000 mm
    Weight per storage unit
    4.180 kg
    More information
  • KW5051500
    JORDAHL edge protectors angle 50/5
    height
    120 mm
    width
    120 mm
    length
    1500 mm
    Weight per storage unit
    6.160 kg
    More information
  • KW5052000
    JORDAHL edge protectors angle 50/5
    height
    120 mm
    width
    120 mm
    length
    2000 mm
    Weight per storage unit
    8.250 kg
    More information
  • KW505500
    JORDAHL edge protectors angle 50/5
    height
    120 mm
    width
    120 mm
    length
    500 mm
    Weight per storage unit
    2.200 kg
    More information
  • KW505750
    JORDAHL edge protectors angle 50/5
    height
    120 mm
    width
    120 mm
    length
    750 mm
    Weight per storage unit
    3.190 kg
    More information
  • KW8061000
    JORDAHL edge protectors angle 80/6
    height
    180 mm
    width
    180 mm
    length
    1000 mm
    Weight per storage unit
    7.920 kg
    More information
  • KW8061500
    JORDAHL edge protectors angle 80/6
    height
    180 mm
    width
    180 mm
    length
    1500 mm
    Weight per storage unit
    11.880 kg
    More information
  • KW8062000
    JORDAHL edge protectors angle 80/6
    height
    180 mm
    width
    180 mm
    length
    2000 mm
    Weight per storage unit
    15.840 kg
    More information
  • KW806500
    JORDAHL edge protectors angle 80/6
    height
    180 mm
    width
    180 mm
    length
    500 mm
    Weight per storage unit
    4.070 kg
    More information
  • KW806750
    JORDAHL edge protectors angle 80/6
    height
    180 mm
    width
    180 mm
    length
    750 mm
    Weight per storage unit
    6.050 kg
    More information
