JDA-Q Montagehilfe komplettGewicht je Lagermengeneinheit0.244 kg
JDA-Q

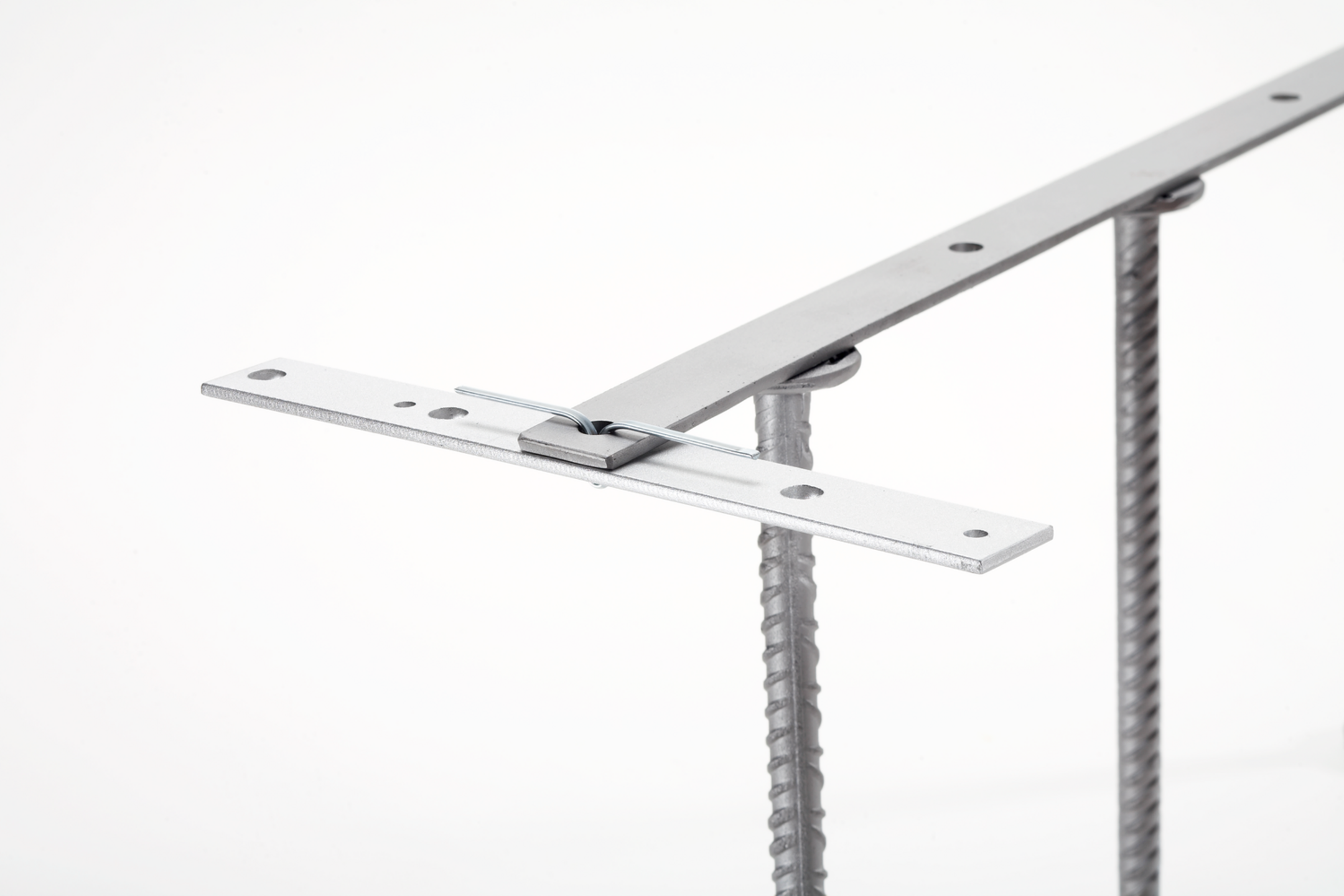

Assembly aid for installing JDA elements
We carry suitable installation aids JDA-Q for installing JDA elements in in-situ concrete. They simplify installation and speed up the application of punching shear and shear force reinforcements. The assembly aids are fastened with cotter pins. When installing from above, JDA-Q are inserted parallel to the upper reinforcement layer. When installing parallel to the lower reinforcement layer, they are positioned on the formwork using additional spacers. The mounting aids are made of steel and are available in a perforated version.
