DB

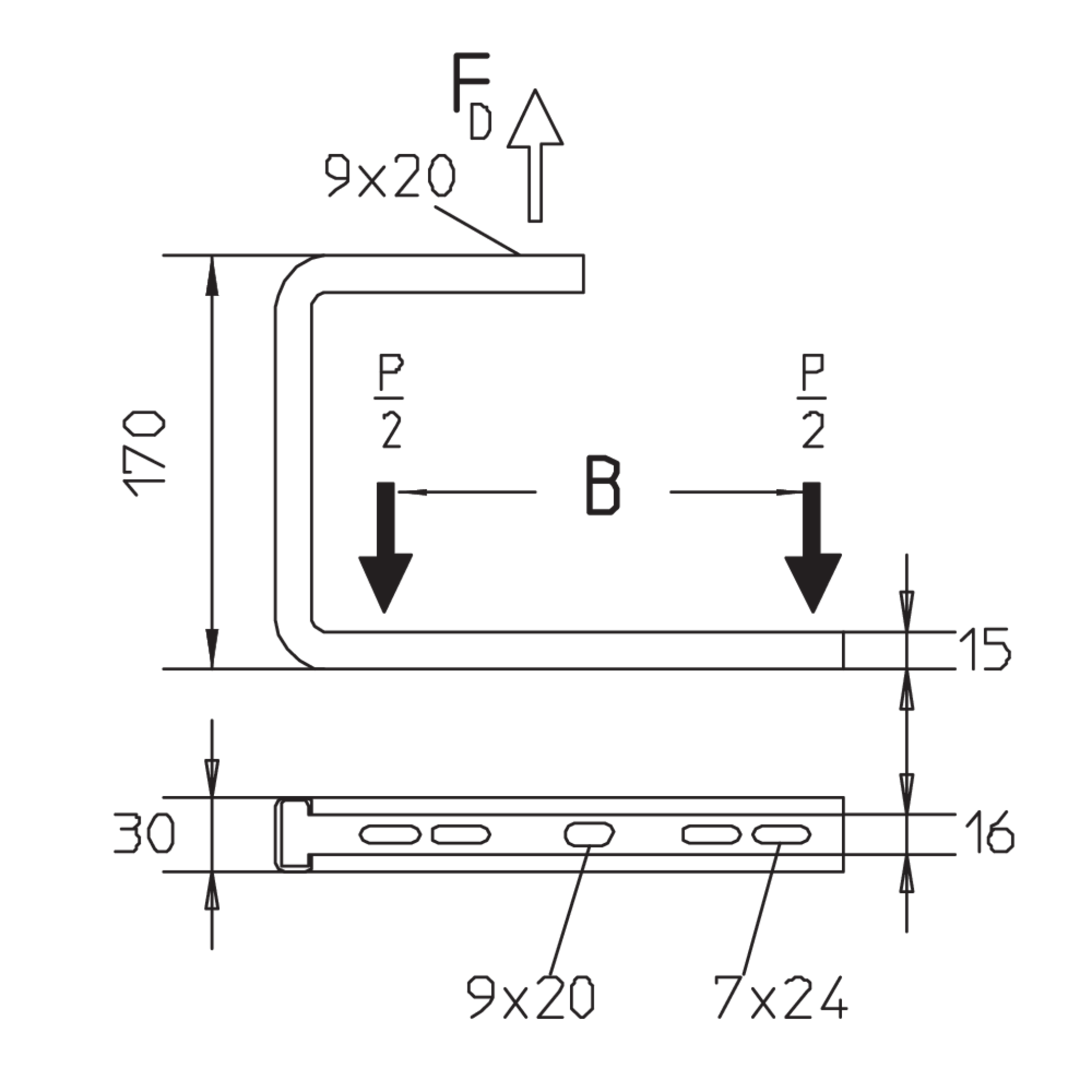

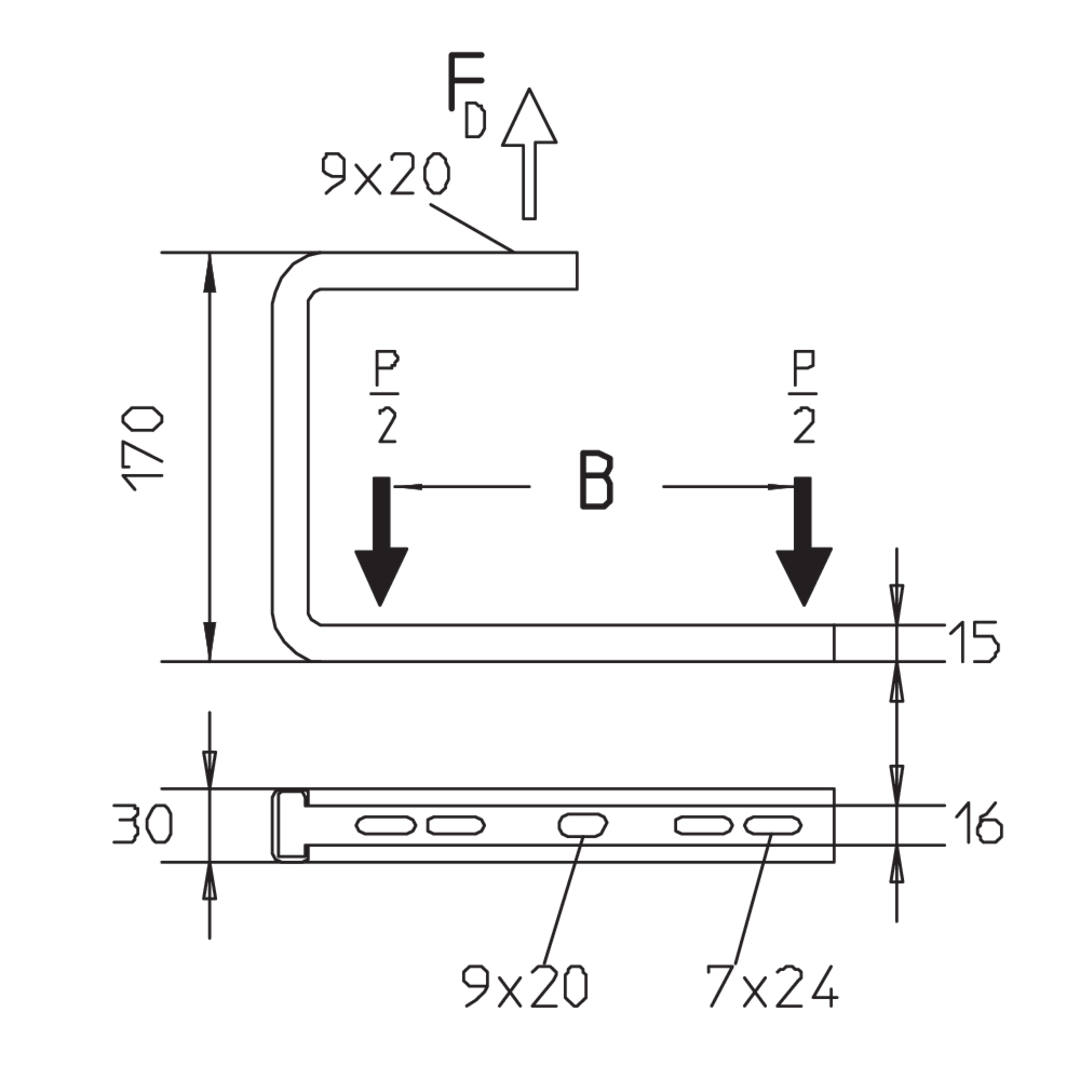

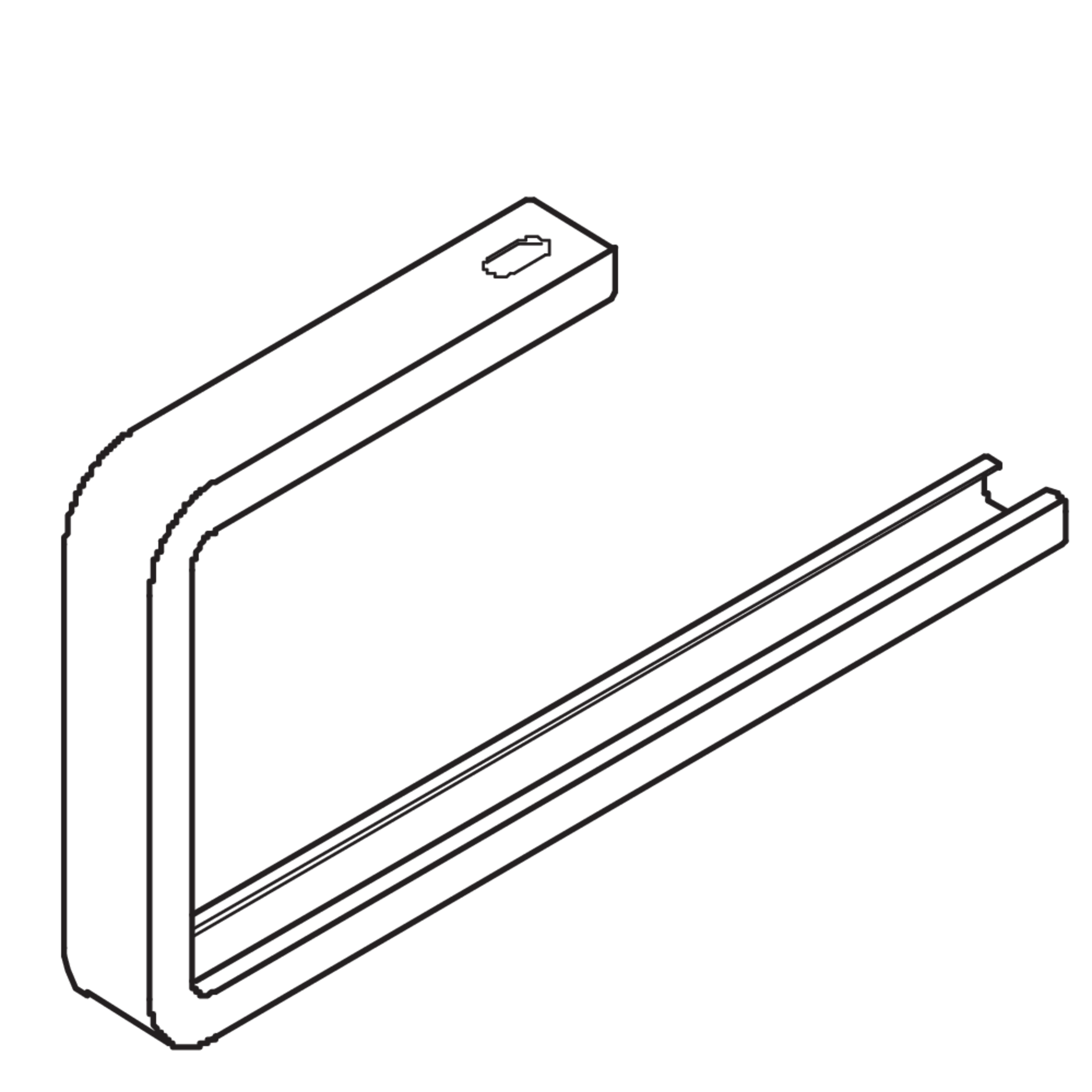

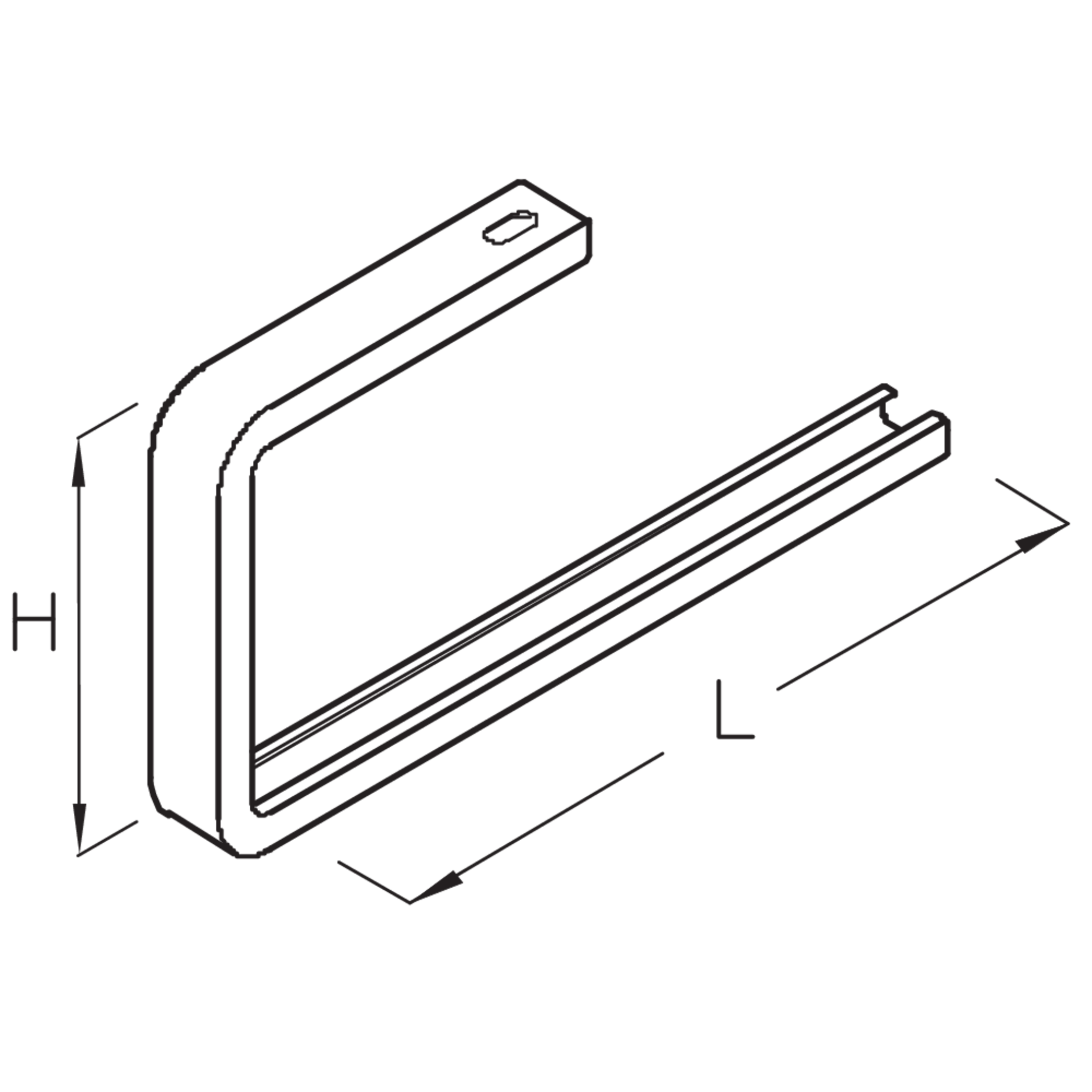

The ceiling bracket DB consists of a 30 x 15 mm profile rail and is intended for maximum loads of up to 0.6 kN. The system is ideal for suspending mesh cable trays and cable trays up to 300 mm wide. The cable tray is fastened with KLR 6x25, the mesh cable tray with KLU-L, FRS 6x25 and SEMS 6. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. FD/P: factor for calculating the dowel load FD with the actual bracket load P or the sum of the actual bracket loads. This article is made from stainless steel with material no. 1.4571/1.4404 (V4A).
