BKK 100

Floor duct crossing, height = 100 mm

The floor duct crossing BKK 100 with integrated connectors is a formed part for horizontally crossing floor ducts. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. To dissipate vertical live loads, one separating strip must be installed in the floor duct for widths ≥ 300 mm and two separating strips for widths ≥ 500 mm. The crossing is pushed into the floor ducts and then bolted in place.

Get in touch Download datasheet

Variants

Steel, pre-galvanised/Sendzimir process

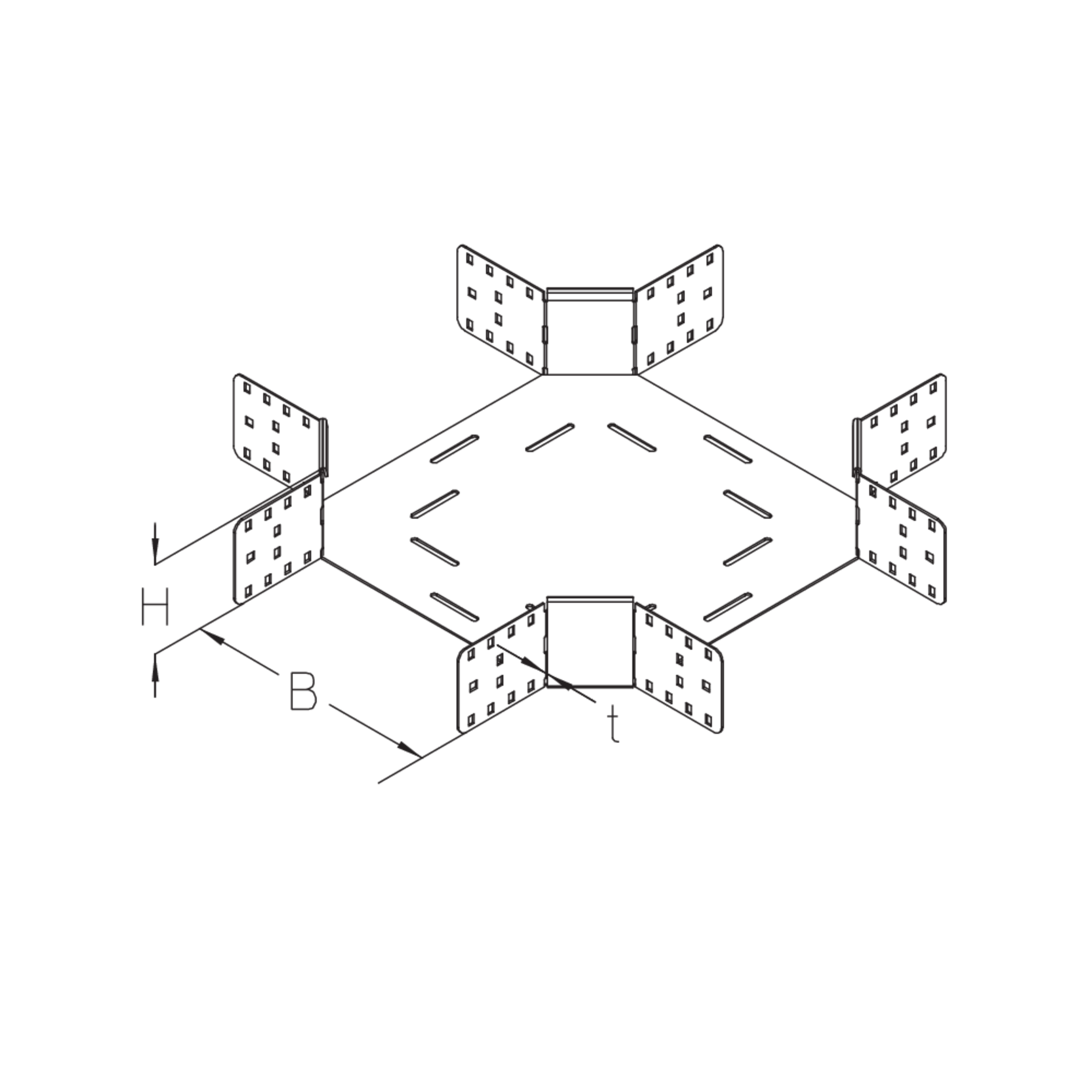

Article

H

height

B

width

t

material thickness

G

Weight per storage unit
  • BKK 100-10S
    Floor duct crossing
    height
    100 mm
    width
    100 mm
    material thickness
    2.00 mm
    Weight per storage unit
    3.202 kg
    Included accessories
    More information
  • BKK 100-15S
    Floor duct crossing
    height
    100 mm
    width
    150 mm
    material thickness
    2.00 mm
    Weight per storage unit
    3.582 kg
    Included accessories
    More information
  • BKK 100-20S
    Floor duct crossing
    height
    100 mm
    width
    200 mm
    material thickness
    2.00 mm
    Weight per storage unit
    4.042 kg
    Included accessories
    More information
  • BKK 100-30S
    Floor duct crossing
    height
    100 mm
    width
    300 mm
    material thickness
    2.00 mm
    Weight per storage unit
    5.112 kg
    Included accessories
    More information
  • BKK 100-40S
    Floor duct crossing
    height
    100 mm
    width
    400 mm
    material thickness
    2.00 mm
    Weight per storage unit
    6.572 kg
    Included accessories
    More information
  • BKK 100-50S
    Floor duct crossing
    height
    100 mm
    width
    500 mm
    material thickness
    2.00 mm
    Weight per storage unit
    8.332 kg
    Included accessories
    More information
  • BKK 100-60S
    Floor duct crossing
    height
    100 mm
    width
    600 mm
    material thickness
    2.00 mm
    Weight per storage unit
    10.422 kg
    Included accessories
    More information

Details

  • Creates horizontal change of cable routing in four directions
  • Cable-friendly guide

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en

BIM- and CAD-Data

  • BIM for BK floor ducts

    BIM for BK floor ducts

    BIM data

    ZIP, 6 MB

    de en
