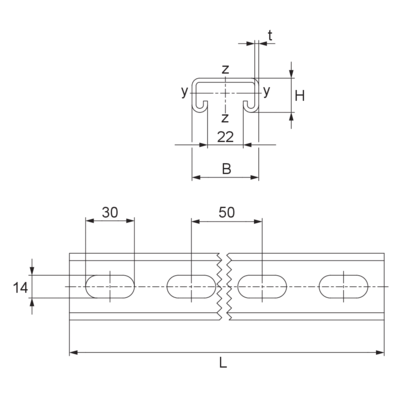

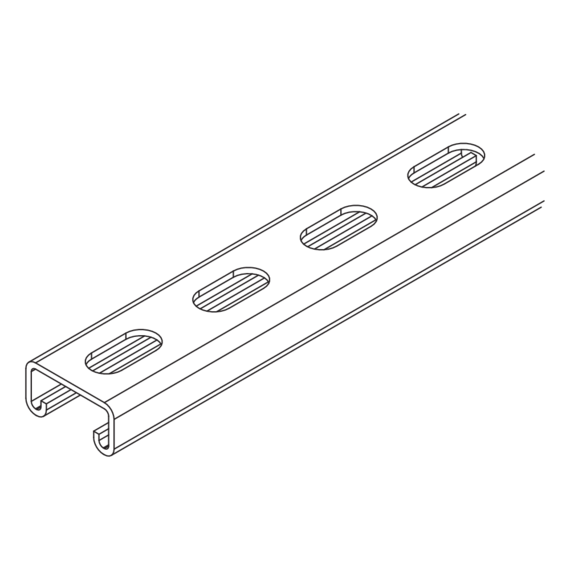

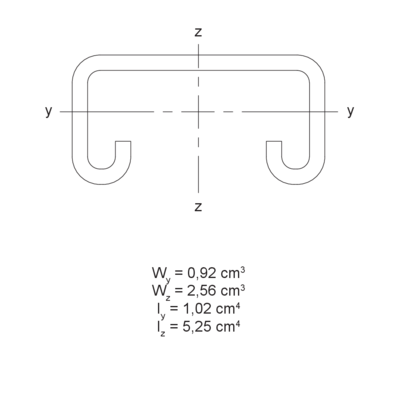

The mounting channel KHA 21 consists of a C+ profile 41 x 21 mm with continuous perforation and a slot width of 22 mm made from material 2.5 mm thick. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. It is available in lengths of up to 6000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

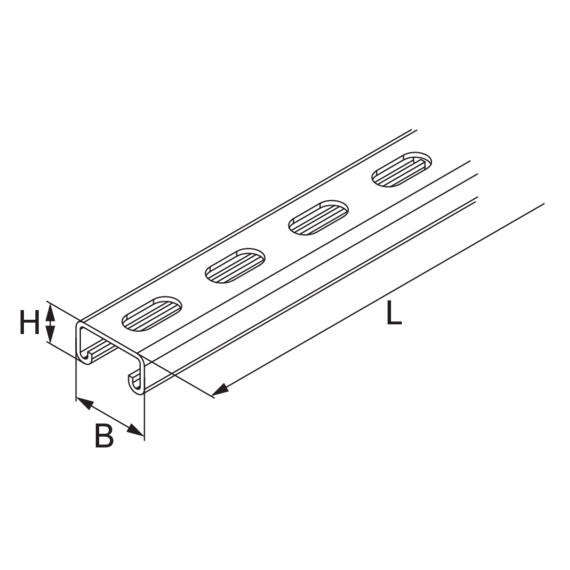

| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHA 21-30F | 3000 mm | 41 mm | 21 mm | 2,50 mm | 2,5 mm | 5,320 kg | |
| KHA 21-60F | 6000 mm | 41 mm | 21 mm | 2,50 mm | 2,5 mm | 10,639 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | L length | BP profile width | HP profile height | t material thickness | t Material strength | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KHA 21-30E4 | 3000 mm | 41 mm | 21 mm | 2,50 mm | 2,5 mm | 4,970 kg | |
| KHA 21-60E4 | 6000 mm | 41 mm | 21 mm | 2,50 mm | 2,5 mm | 9,943 kg |
