G 50

Mesh cable tray, U-shaped, height = 53 mm

The U-shaped mesh cable tray G 50 has sides 53 or 54 mm high and is available in tray widths from 76 to 618 mm. The standard length is 3004 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

The magnetic shielding attenuation is 10 dB without the cover and 18 dB with the cover.

No stepping
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • G 50-06S
    Wire-mesh cable tray
    height
    53 mm
    width
    76 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.04 kN/m
    cross section area
    25 cm2
    Weight per storage unit
    2.200 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-10S
    Wire-mesh cable tray G 50-10S
    height
    53 mm
    width
    116 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.07 kN/m
    cross section area
    45 cm2
    Weight per storage unit
    2.370 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-15S
    Wire-mesh cable tray G 50-15S
    height
    53 mm
    width
    166 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.10 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    2.520 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-20S
    Wire-mesh cable tray G 50-20S
    height
    53 mm
    width
    216 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.14 kN/m
    cross section area
    90 cm2
    Weight per storage unit
    3.270 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-30S
    Wire-mesh cable tray G 50-30S
    height
    53 mm
    width
    316 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.2 kN/m
    cross section area
    135 cm2
    Weight per storage unit
    4.170 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-40S
    Wire-mesh cable tray G 50-40S
    height
    54 mm
    width
    418 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    176 cm2
    Weight per storage unit
    6.410 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-50S
    Wire-mesh cable tray G 50-50S
    height
    54 mm
    width
    518 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    220 cm2
    Weight per storage unit
    7.540 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-60S
    Wire-mesh cable tray G 50-60S
    height
    54 mm
    width
    618 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.4 kN/m
    cross section area
    264 cm2
    Weight per storage unit
    8.680 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • G 50-06F
    Wire-mesh cable tray G 50-06F
    height
    53 mm
    width
    76 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.04 kN/m
    cross section area
    25 cm2
    Weight per storage unit
    2.400 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-10F
    Wire-mesh cable tray G 50-10F
    height
    53 mm
    width
    116 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.07 kN/m
    cross section area
    45 cm2
    Weight per storage unit
    2.530 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-15F
    Wire-mesh cable tray
    height
    53 mm
    width
    166 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.10 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    2.700 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-20F
    Wire-mesh cable tray G 50-20F
    height
    53 mm
    width
    216 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.14 kN/m
    cross section area
    90 cm2
    Weight per storage unit
    3.500 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-30F
    Wire-mesh cable tray G 50-30F
    height
    53 mm
    width
    316 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.2 kN/m
    cross section area
    135 cm2
    Weight per storage unit
    4.460 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-40F
    Wire-mesh cable tray G 50-40F
    height
    54 mm
    width
    418 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    176 cm2
    Weight per storage unit
    6.850 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-50F
    Wire-mesh cable tray G 50-50F
    height
    54 mm
    width
    518 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    220 cm2
    Weight per storage unit
    8.070 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-60F
    Wire-mesh cable tray G 50-60F
    height
    54 mm
    width
    618 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.4 kN/m
    cross section area
    264 cm2
    Weight per storage unit
    9.290 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • G 50-06E
    Wire-mesh cable tray
    height
    53 mm
    width
    76 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.04 kN/m
    cross section area
    25 cm2
    Weight per storage unit
    2.240 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-10E
    Wire-mesh cable tray G 50-10E
    height
    53 mm
    width
    116 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.07 kN/m
    cross section area
    45 cm2
    Weight per storage unit
    2.370 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-15E
    Wire-mesh cable tray
    height
    53 mm
    width
    166 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.10 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    2.520 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-20E
    Wire-mesh cable tray G 50-20E
    height
    53 mm
    width
    216 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.14 kN/m
    cross section area
    90 cm2
    Weight per storage unit
    3.270 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-30E
    Wire-mesh cable tray G 50-30E
    height
    53 mm
    width
    316 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.2 kN/m
    cross section area
    135 cm2
    Weight per storage unit
    4.170 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-40E
    Wire-mesh cable tray G 50-40E
    height
    54 mm
    width
    418 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    176 cm2
    Weight per storage unit
    6.460 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-50E
    Wire-mesh cable tray G 50-50E
    height
    54 mm
    width
    518 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    220 cm2
    Weight per storage unit
    7.600 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-60E
    Wire-mesh cable tray G 50-60E
    height
    54 mm
    width
    618 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.4 kN/m
    cross section area
    264 cm2
    Weight per storage unit
    8.750 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • G 50-06E4
    Wire-mesh cable tray
    height
    53 mm
    width
    76 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.04 kN/m
    cross section area
    25 cm2
    Weight per storage unit
    2.200 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-10E4
    Wire-mesh cable tray G 50-10E
    height
    53 mm
    width
    116 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.07 kN/m
    cross section area
    45 cm2
    Weight per storage unit
    2.420 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-15E4
    wire mesh tray
    height
    53 mm
    width
    166 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    2.570 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-20E4
    Wire-mesh cable tray G 50-20E
    height
    53 mm
    width
    216 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.14 kN/m
    cross section area
    90 cm2
    Weight per storage unit
    3.340 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-30E4
    Wire-mesh cable tray G 50-30E
    height
    53 mm
    width
    316 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.2 kN/m
    cross section area
    135 cm2
    Weight per storage unit
    4.260 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-40E4
    Wire-mesh cable tray G 50-40E
    height
    54 mm
    width
    418 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    176 cm2
    Weight per storage unit
    6.510 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-50E4
    Wire-mesh cable tray G 50-50E
    height
    54 mm
    width
    518 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    220 cm2
    Weight per storage unit
    7.660 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-60E4
    Wire-mesh cable tray G 50-60E
    height
    54 mm
    width
    618 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.4 kN/m
    cross section area
    264 cm2
    Weight per storage unit
    8.820 kg
    Geeignet für Funktionserhalt
    Nein
    More information

steel, galvanic zinc plated

Article

H

height

B

width

L

length

t

material thickness

QSK

distributed load control cable

A

cross section area

G

Weight per storage unit

Geeignet für Funktionserhalt

  • G 50-06GV
    Wire-mesh cable tray
    height
    53 mm
    width
    76 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.04 kN/m
    cross section area
    25 cm2
    Weight per storage unit
    2.240 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-10GV
    Wire-mesh cable tray G 50-10S
    height
    53 mm
    width
    116 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.07 kN/m
    cross section area
    45 cm2
    Weight per storage unit
    2.370 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-15GV
    wire mesh tray
    height
    53 mm
    width
    166 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.1 kN/m
    cross section area
    67 cm2
    Weight per storage unit
    2.520 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-20GV
    Wire-mesh cable tray G 50-20S
    height
    53 mm
    width
    216 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.14 kN/m
    cross section area
    90 cm2
    Weight per storage unit
    3.270 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-30GV
    Wire-mesh cable tray G 50-30S
    height
    53 mm
    width
    316 mm
    length
    3004 mm
    material thickness
    4.00 mm
    distributed load control cable
    0.2 kN/m
    cross section area
    135 cm2
    Weight per storage unit
    4.170 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-40GV
    Wire-mesh cable tray G 50-40S
    height
    54 mm
    width
    418 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.26 kN/m
    cross section area
    176 cm2
    Weight per storage unit
    6.410 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-50GV
    Wire-mesh cable tray G 50-50S
    height
    54 mm
    width
    518 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.33 kN/m
    cross section area
    220 cm2
    Weight per storage unit
    7.540 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • G 50-60GV
    Wire-mesh cable tray G 50-60S
    height
    54 mm
    width
    618 mm
    length
    3004 mm
    material thickness
    4.50 mm
    distributed load control cable
    0.4 kN/m
    cross section area
    264 cm2
    Weight per storage unit
    8.680 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Details

  • No stepping
  • Electr. conductivity checked according to DIN EN 61537

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Accessories

Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable trays - Assembly instructions

    Assembly Instructions

    • de

    • en

    Mesh cable trays - Technical information

    Technical Information

    • de

    • en

    Mesh cable trays G - Compact overview

    Compact overview of mesh cable trays and accessories: G 50, G 100, GDR, GD, GKAB, DB, DKSL, KDU, KDAG, KHUSS, GBAG, HB, KWF, KHA, KW, KA, connectors, dividers, spacer brackets

    PDF, 532.66 KB

    • de

    Download

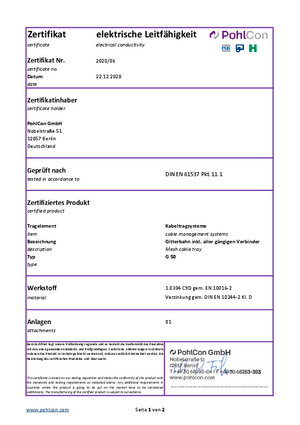

    Electrical conductivity (G 50)

    Certificate, according to DIN EN 61537 Pkt. 11.1

    • de

    • en

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    VDE Certificate 329860-TL7-1 Cable management systems

    Certificate for Grid track G 50-30, G 50-40; Cable tray RG 60-30, RGS 60-30, R 60-30; Cable ladder LGG 60-30; Wide-span cable trays WPR 120-30; Wide-span cable ladders WLR 200-30, WPL 150-30

    • de

    • en

Load diagram

Included accessories

    Our finishing services

    Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.

    Consulting, planning, design

    Installation services

    Individualised solutions
