AKB

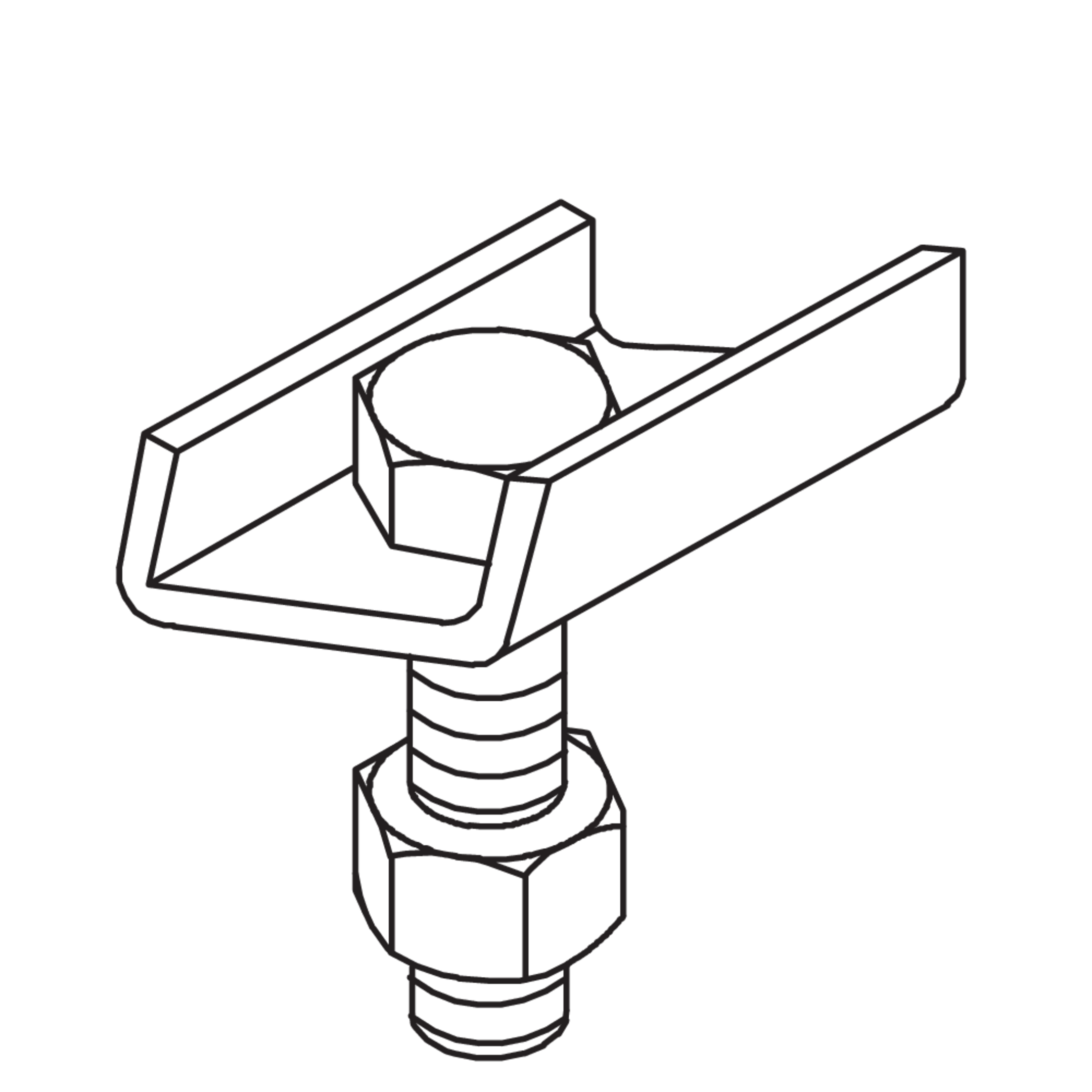

Anchor bolt, A 7/A 8/A 9

Anchor bolts AKB can be used with profile rails A 7, A 8 and A9 and are used to fasten companion structures. They are made of galvanised steel with lengths from 25 to 45 mm and threads M6, M8, M10 and M12.

Get in touch Download datasheet

Variants

steel, galvanic zinc plated

Article

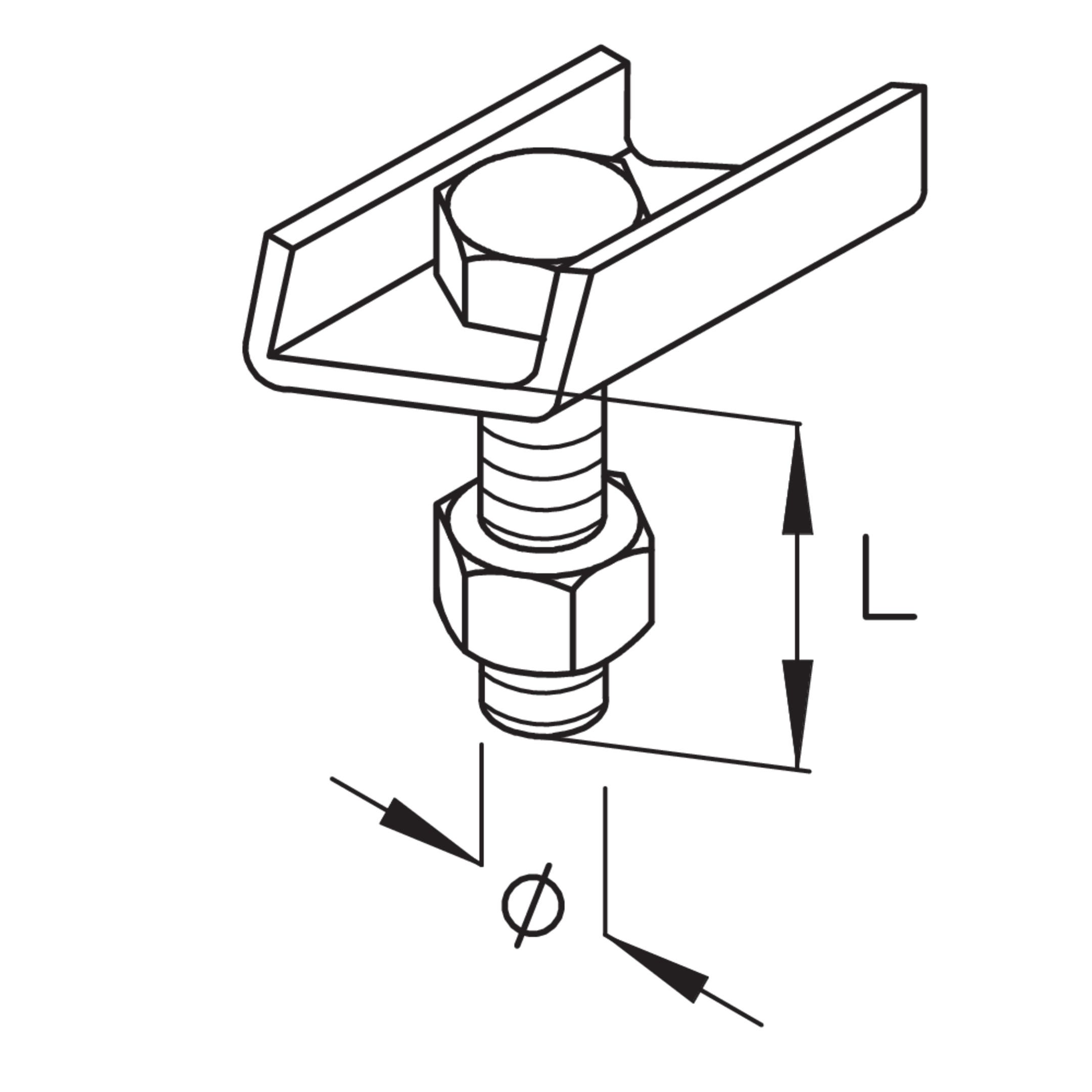

L

length

Ø

thread diameter

G

Weight per storage unit
  • AKB 10X35
    Channel bolt AKB 10X35
    length
    35 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.044 kg
    More information
  • AKB 10X45
    Channel bolt AKB 10X45
    length
    45 mm
    thread diameter
    10 mm
    Weight per storage unit
    0.049 kg
    More information
  • AKB 12X35
    Channel bolt AKB 12X35
    length
    35 mm
    thread diameter
    12 mm
    Weight per storage unit
    0.052 kg
    More information
  • AKB 12X45
    Channel bolt AKB 12X45
    length
    45 mm
    thread diameter
    12 mm
    Weight per storage unit
    0.062 kg
    More information
  • AKB 6X25
    Channel bolt AKB 6X25
    length
    25 mm
    thread diameter
    6 mm
    Weight per storage unit
    0.026 kg
    More information
  • AKB 8X25
    Channel bolt AKB 8X25
    length
    25 mm
    thread diameter
    8 mm
    Weight per storage unit
    0.031 kg
    More information
  • AKB 8X35
    Channel bolt AKB 8X35
    length
    35 mm
    thread diameter
    8 mm
    Weight per storage unit
    0.034 kg
    More information
  • AKB 8X45
    Channel bolt AKB 8X45
    length
    45 mm
    thread diameter
    8 mm
    Weight per storage unit
    0.038 kg
    More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

BIM- and CAD-Data

  • BIM Data Cablele Support System Fastening Accessories (Revit)

    BIM Data Cablele Support System Fastening Accessories (Revit)

    BIM Data

    ZIP, 39 MB

    de en
