The perforated cable trays RG 60 have sides 60 mm high and are available in widths from 50 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Approvals and Certificates
Approvals and Certificates

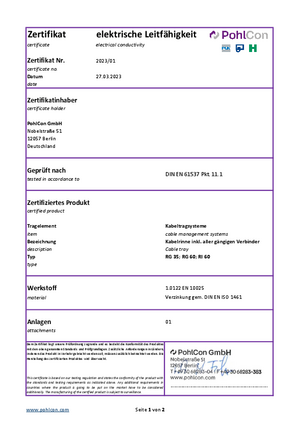

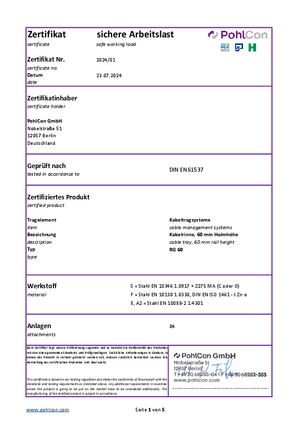

- Electr. conductivity checked according to DIN EN 61537
Products
steel, continously hot galvanized/Sendzimir process
| Products | L length | B width | H height | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 60-05S | 3000 mm | 50 mm | 60 mm | 0,75 mm | 0,04 kN/m | 27 cm² | 3,400 kg | |
| RG 60-10S | 3000 mm | 100 mm | 60 mm | 0,75 mm | 0,09 kN/m | 57 cm² | 4,300 kg | |
| RG 60-15S | 3000 mm | 150 mm | 60 mm | 0,75 mm | 0,13 kN/m | 87 cm² | 5,200 kg | |
| RG 60-20S | 3000 mm | 200 mm | 60 mm | 0,75 mm | 0,18 kN/m | 117 cm² | 5,800 kg | |
| RG 60-30S | 3000 mm | 300 mm | 60 mm | 0,75 mm | 0,27 kN/m | 177 cm² | 7,400 kg | |
| RG 60-40S | 3000 mm | 400 mm | 60 mm | 0,88 mm | 0,36 kN/m | 237 cm² | 10,600 kg | |
| RG 60-50S | 3000 mm | 500 mm | 60 mm | 1,00 mm | 0,45 kN/m | 297 cm² | 14,200 kg | |
| RG 60-60S | 3000 mm | 600 mm | 60 mm | 1,00 mm | 0,54 kN/m | 357 cm² | 16,400 kg |
steel, batch/hot-dip galvanized
| Products | L length | B width | H height | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 60-05F | 3000 mm | 50 mm | 60 mm | 0,75 mm | 0,04 kN/m | 27 cm² | 3,800 kg | |
| RG 60-10F | 3000 mm | 100 mm | 60 mm | 0,75 mm | 0,09 kN/m | 57 cm² | 4,800 kg | |
| RG 60-15F | 3000 mm | 150 mm | 60 mm | 0,75 mm | 0,13 kN/m | 87 cm² | 5,611 kg | |
| RG 60-20F | 3000 mm | 200 mm | 60 mm | 0,75 mm | 0,18 kN/m | 117 cm² | 6,500 kg | |
| RG 60-30F | 3000 mm | 300 mm | 60 mm | 0,75 mm | 0,27 kN/m | 177 cm² | 8,300 kg | |
| RG 60-40F | 3000 mm | 400 mm | 60 mm | 0,88 mm | 0,36 kN/m | 237 cm² | 11,700 kg | |
| RG 60-50F | 3000 mm | 500 mm | 60 mm | 1,00 mm | 0,45 kN/m | 297 cm² | 15,700 kg | |
| RG 60-60F | 3000 mm | 600 mm | 60 mm | 1,00 mm | 0,54 kN/m | 357 cm² | 18,100 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | L length | B width | H height | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 60-05E | 3000 mm | 50 mm | 60 mm | 0,80 mm | 0,04 kN/m | 27 cm² | 3,619 kg | |
| RG 60-10E | 3000 mm | 100 mm | 60 mm | 0,80 mm | 0,09 kN/m | 57 cm² | 4,600 kg | |
| RG 60-20E | 3000 mm | 200 mm | 60 mm | 0,80 mm | 0,18 kN/m | 117 cm² | 6,200 kg | |
| RG 60-30E | 3000 mm | 300 mm | 60 mm | 0,80 mm | 0,27 kN/m | 177 cm² | 8,000 kg | |
| RG 60-40E | 3000 mm | 400 mm | 60 mm | 0,80 mm | 0,36 kN/m | 237 cm² | 9,900 kg | |
| RG 60-50E | 3000 mm | 500 mm | 60 mm | 1,00 mm | 0,45 kN/m | 297 cm² | 14,300 kg | |
| RG 60-60E | 3000 mm | 600 mm | 60 mm | 1,00 mm | 0,54 kN/m | 357 cm² | 16,600 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | L length | B width | H height | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 60-10E4 | 3000 mm | 100 mm | 60 mm | 0,80 mm | 0,09 kN/m | 57 cm² | 4,567 kg | |
| RG 60-20E4 | 3000 mm | 200 mm | 60 mm | 0,80 mm | 0,18 kN/m | 117 cm² | 6,400 kg | |
| RG 60-30E4 | 3000 mm | 300 mm | 60 mm | 0,80 mm | 0,27 kN/m | 177 cm² | 7,837 kg | |
| RG 60-40E4 | 3000 mm | 400 mm | 60 mm | 0,80 mm | 0,36 kN/m | 237 cm² | 9,075 kg | |
| RG 60-50E4 | 3000 mm | 500 mm | 60 mm | 1,00 mm | 0,45 kN/m | 297 cm² | 14,800 kg | |
| RG 60-60E4 | 3000 mm | 600 mm | 60 mm | 1,00 mm | 0,54 kN/m | 357 cm² | 16,000 kg |
