The RG 110 perforated cable trays have sides 110 mm high and are available in widths from 100 to 600 mm. The standard length is 3000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Approvals and Certificates
Approvals and Certificates

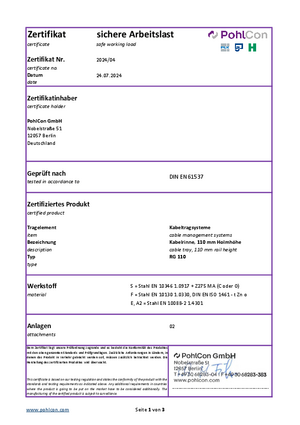

- Electr. conductivity checked according to DIN EN 61537
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 110-10S | 110 mm | 100 mm | 3000 mm | 0,75 mm | 0,16 kN/m | 107 cm<sup>2</sup> | 5,820 kg | |
| RG 110-20S | 110 mm | 200 mm | 3000 mm | 0,75 mm | 0,33 kN/m | 217 cm<sup>2</sup> | 7,700 kg | |
| RG 110-30S | 110 mm | 300 mm | 3000 mm | 0,88 mm | 0,49 kN/m | 327 cm<sup>2</sup> | 10,440 kg | |
| RG 110-40S | 110 mm | 400 mm | 3000 mm | 1,00 mm | 0,66 kN/m | 437 cm<sup>2</sup> | 13,900 kg | |
| RG 110-50S | 110 mm | 500 mm | 3000 mm | 1,00 mm | 0,82 kN/m | 547 cm<sup>2</sup> | 16,250 kg | |
| RG 110-60S | 110 mm | 600 mm | 3000 mm | 1,00 mm | 0,99 kN/m | 657 cm<sup>2</sup> | 18,450 kg |
steel, batch/hot-dip galvanized
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 110-10F | 110 mm | 100 mm | 3000 mm | 0,75 mm | 0,16 kN/m | 107 cm<sup>2</sup> | 6,380 kg | |
| RG 110-20F | 110 mm | 200 mm | 3000 mm | 0,75 mm | 0,33 kN/m | 217 cm<sup>2</sup> | 8,250 kg | |
| RG 110-30F | 110 mm | 300 mm | 3000 mm | 0,88 mm | 0,49 kN/m | 327 cm<sup>2</sup> | 11,220 kg | |
| RG 110-40F | 110 mm | 400 mm | 3000 mm | 1,00 mm | 0,66 kN/m | 437 cm<sup>2</sup> | 14,650 kg | |
| RG 110-50F | 110 mm | 500 mm | 3000 mm | 1,00 mm | 0,82 kN/m | 547 cm<sup>2</sup> | 17,100 kg | |
| RG 110-60F | 110 mm | 600 mm | 3000 mm | 1,00 mm | 0,99 kN/m | 657 cm<sup>2</sup> | 19,400 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 110-10E | 110 mm | 100 mm | 3000 mm | 0,80 mm | 0,16 kN/m | 107 cm<sup>2</sup> | 6,200 kg | |
| RG 110-20E | 110 mm | 200 mm | 3000 mm | 0,80 mm | 0,33 kN/m | 217 cm<sup>2</sup> | 7,680 kg | |
| RG 110-30E | 110 mm | 300 mm | 3000 mm | 0,80 mm | 0,49 kN/m | 327 cm<sup>2</sup> | 9,250 kg | |
| RG 110-40E | 110 mm | 400 mm | 3000 mm | 1,00 mm | 0,66 kN/m | 437 cm<sup>2</sup> | 13,600 kg | |
| RG 110-50E | 110 mm | 500 mm | 3000 mm | 1,00 mm | 0,82 kN/m | 547 cm<sup>2</sup> | 16,100 kg | |
| RG 110-60E | 110 mm | 600 mm | 3000 mm | 1,00 mm | 0,99 kN/m | 657 cm<sup>2</sup> | 18,570 kg |
Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11
| Products | H height | B width | L length | t material thickness | QSK distributed load control cable | A cross section area | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|---|
| RG 110-10E4 | 110 mm | 100 mm | 3000 mm | 0,80 mm | 0,16 kN/m | 107 cm<sup>2</sup> | 6,181 kg | |
| RG 110-20E4 | 110 mm | 200 mm | 3000 mm | 0,80 mm | 0,33 kN/m | 217 cm<sup>2</sup> | 7,889 kg | |
| RG 110-30E4 | 110 mm | 300 mm | 3000 mm | 0,80 mm | 0,49 kN/m | 327 cm<sup>2</sup> | 9,688 kg | |
| RG 110-40E4 | 110 mm | 400 mm | 3000 mm | 1,00 mm | 0,66 kN/m | 437 cm<sup>2</sup> | 14,130 kg | |
| RG 110-50E4 | 110 mm | 500 mm | 3000 mm | 1,00 mm | 0,82 kN/m | 547 cm<sup>2</sup> | 16,557 kg | |
| RG 110-60E4 | 110 mm | 600 mm | 3000 mm | 1,00 mm | 0,99 kN/m | 657 cm<sup>2</sup> | 18,570 kg |
