Passing of Several cables

Passing of Several cables

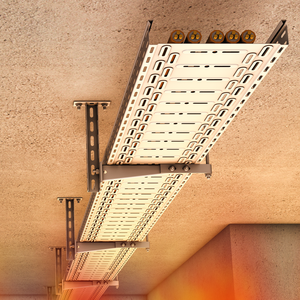

Cable laying on conductors (expert opinion MPA 3335/772/11-1)

  • Support distance: UA ≤ 1.20 m
  • Cable load: 20 kg/m
  • Max. width: 400 mm
  • Side height (upright): 60 mm
  • Material thickness of channel: 1.5 mm
  • Bracket tip: intercepted

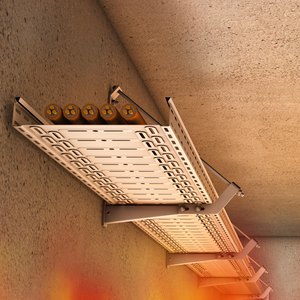

Cable routing on channels (expert opinion MPA 3335/772/11-2)

  • Support distance: UA ≤ 1.20 m
  • Cable load: 10 kg/m
  • Max. width: 300 mm
  • Side height (upright): 60 mm
  • Material thickness of channel: 1.5 mm
  • Bracket tip: intercepted
