LGG 60 Vertical ladder, L profile

The LGG 60 vertical ladders consist of perforated side rails with L profiles and rungs made of 30x15 mm profile rails. They are designed for a maximum load of up to 1.5 kN, are 200 to 600 mm wide and are available in standard lengths of 3000 and 6000 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.

data sheet

Request a callback now

Approvals and Certificates

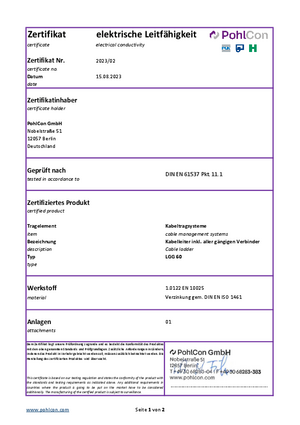

Electr. conductivity checked according to DIN EN 61537

Products

steel, continously hot galvanized/Sendzimir process

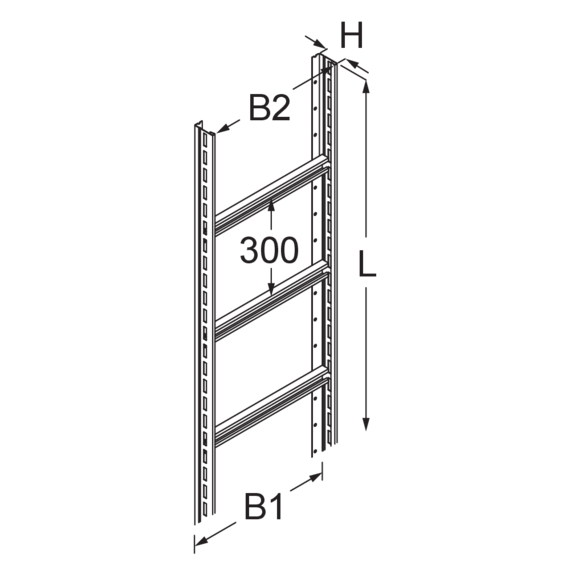

Products	H height	B width	L length	P_max maximum load	A cross section area	Q_LK	weight
LGG 60-20-3S	60 mm	200 mm	3000 mm	1,50 kN	81 cm²	0,23 kN/m	7,920 kg
LGG 60-30-3S	60 mm	300 mm	3000 mm	1,50 kN	122 cm²	0,34 kN/m	8,610 kg
LGG 60-40-3S	60 mm	400 mm	3000 mm	1,50 kN	162 cm²	0,45 kN/m	9,300 kg
LGG 60-50-3S	60 mm	500 mm	3000 mm	1,50 kN	203 cm²	0,57 kN/m	9,980 kg
LGG 60-60-3S	60 mm	600 mm	3000 mm	1,50 kN	243 cm²	0,68 kN/m	10,670 kg
LGG 60-20S	60 mm	200 mm	6000 mm	1,50 kN	81 cm²	0,23 kN/m	15,840 kg
LGG 60-30S	60 mm	300 mm	6000 mm	1,50 kN	122 cm²	0,34 kN/m	17,200 kg
LGG 60-40S	60 mm	400 mm	6000 mm	1,50 kN	162 cm²	0,45 kN/m	18,570 kg
LGG 60-50S	60 mm	500 mm	6000 mm	1,50 kN	203 cm²	0,57 kN/m	19,940 kg
LGG 60-60S	60 mm	600 mm	6000 mm	1,50 kN	243 cm²	0,68 kN/m	21,310 kg

steel, batch/hot-dip galvanized

Products	H height	B width	L length	P_max maximum load	A cross section area	Q_LK	weight
LGG 60-20-3F	60 mm	200 mm	3000 mm	1,50 kN	81 cm²	0,23 kN/m	8,480 kg
LGG 60-30-3F	60 mm	300 mm	3000 mm	1,50 kN	122 cm²	0,34 kN/m	9,210 kg
LGG 60-40-3F	60 mm	400 mm	3000 mm	1,50 kN	162 cm²	0,45 kN/m	9,950 kg
LGG 60-50-3F	60 mm	500 mm	3000 mm	1,50 kN	203 cm²	0,57 kN/m	10,680 kg
LGG 60-60-3F	60 mm	600 mm	3000 mm	1,50 kN	243 cm²	0,68 kN/m	11,420 kg
LGG 60-20F	60 mm	200 mm	6000 mm	1,50 kN	81 cm²	0,23 kN/m	16,950 kg
LGG 60-30F	60 mm	300 mm	6000 mm	1,50 kN	122 cm²	0,34 kN/m	18,420 kg
LGG 60-40F	60 mm	400 mm	6000 mm	1,50 kN	162 cm²	0,45 kN/m	19,890 kg
LGG 60-50F	60 mm	500 mm	6000 mm	1,50 kN	203 cm²	0,57 kN/m	21,340 kg
LGG 60-60F	60 mm	600 mm	6000 mm	1,50 kN	243 cm²	0,68 kN/m	22,800 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	H height	B width	L length	P_max maximum load	A cross section area	Q_LK	weight
LGG 60-20-3E	60 mm	200 mm	3000 mm	1,50 kN	81 cm²	0,23 kN/m	7,897 kg
LGG 60-30-3E	60 mm	300 mm	3000 mm	1,50 kN	122 cm²	0,34 kN/m	8,592 kg
LGG 60-40-3E	60 mm	400 mm	3000 mm	1,50 kN	162 cm²	0,45 kN/m	9,277 kg
LGG 60-50-3E	60 mm	500 mm	3000 mm	1,50 kN	203 cm²	0,57 kN/m	9,977 kg
LGG 60-60-3E	60 mm	600 mm	3000 mm	1,50 kN	243 cm²	0,68 kN/m	10,632 kg
LGG 60-20E	60 mm	200 mm	6000 mm	1,50 kN	81 cm²	0,23 kN/m	15,950 kg
LGG 60-30E	60 mm	300 mm	6000 mm	1,50 kN	122 cm²	0,34 kN/m	17,330 kg
LGG 60-40E	60 mm	400 mm	6000 mm	1,50 kN	162 cm²	0,45 kN/m	18,710 kg
LGG 60-50E	60 mm	500 mm	6000 mm	1,50 kN	203 cm²	0,57 kN/m	20,090 kg
LGG 60-60E	60 mm	600 mm	6000 mm	1,50 kN	243 cm²	0,68 kN/m	21,470 kg

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Products	H height	B width	L length	P_max maximum load	A cross section area	Q_LK	weight
LGG 60-20-3E4	60 mm	200 mm	3000 mm	1,50 kN	81 cm²	0,23 kN/m	7,970 kg
LGG 60-30-3E4	60 mm	300 mm	3000 mm	1,50 kN	122 cm²	0,34 kN/m	8,660 kg
LGG 60-40-3E4	60 mm	400 mm	3000 mm	1,50 kN	162 cm²	0,45 kN/m	9,340 kg
LGG 60-50-3E4	60 mm	500 mm	3000 mm	1,50 kN	203 cm²	0,57 kN/m	10,030 kg
LGG 60-60-3E4	60 mm	600 mm	3000 mm	1,50 kN	243 cm²	0,68 kN/m	10,720 kg
LGG 60-20E4	60 mm	200 mm	6000 mm	1,50 kN	81 cm²	0,23 kN/m	15,950 kg
LGG 60-30E4	60 mm	300 mm	6000 mm	1,50 kN	122 cm²	0,34 kN/m	17,330 kg
LGG 60-40E4	60 mm	400 mm	6000 mm	1,50 kN	162 cm²	0,45 kN/m	18,710 kg
LGG 60-50E4	60 mm	500 mm	6000 mm	1,50 kN	203 cm²	0,57 kN/m	20,090 kg
LGG 60-60E4	60 mm	600 mm	6000 mm	1,50 kN	243 cm²	0,68 kN/m	21,470 kg

Detail and application images

Hover to zoom

Accessories

Cable clamp for fastening to C profile rails

LGV 60

Cable ladder connector, height = 60 mm

LGVH 60

Cable ladder connector, horizontal, height = 60 mm

LGVV 60

Cable ladder connector, vertical, height = 60 mm

LGTR 60

Cable ladder separating strip, height = 33 mm

Downloads

DOK_PRO_TI_ST

Technical information
