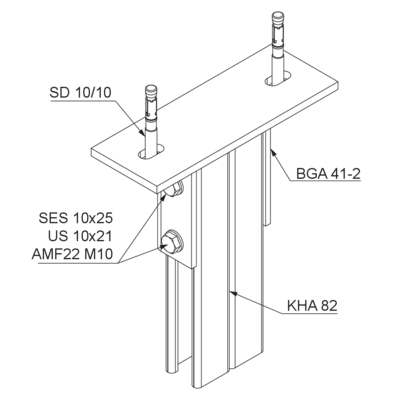

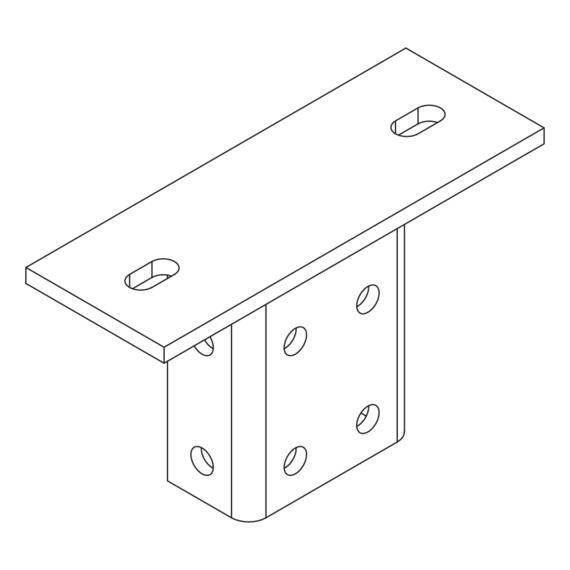

The head plate BGA 41/2 is used for mounting two bracket holders KHA 41 / KHAL 41 or the profile rail KHA 82 on ceilings. It is bolted to the profile rails and dowelled to the ceiling. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

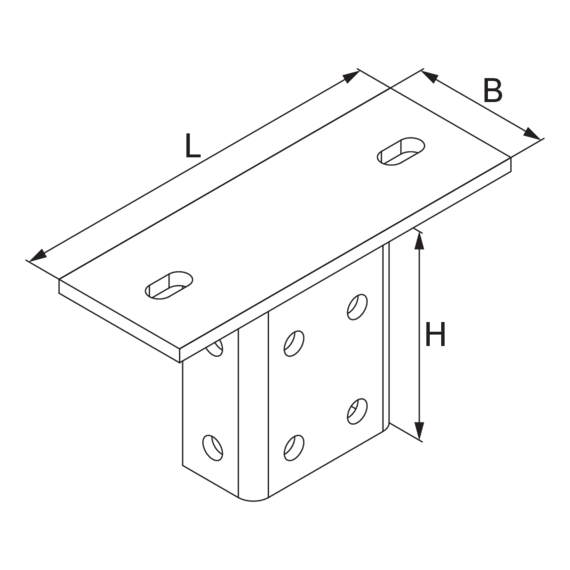

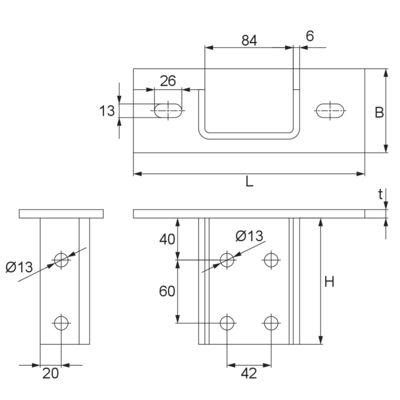

| Products | L length | B width | H height | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|
| BGA 41/2F | 220 mm | 80 mm | 120 mm | 8 mm | 2,150 kg |
steel, galvanic zinc plated
| Products | L length | B width | H height | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|
| BGA 41/2GV | 220 mm | 80 mm | 120 mm | 8 mm | 1,991 kg |
