WLHS

Wide-span cable ladder rail support

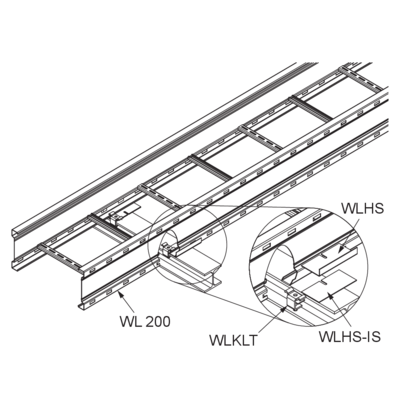

The wide-span side rail supports WLHS are used to attach WL and WLR 200 wide-span trays to brackets, profile rails or steel beams. Specific fixing accessories (WLKL, WLKLA or WLKLT) must be used depending on the application. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

WLHS S
Wide-span beam reinforcement WLHS S

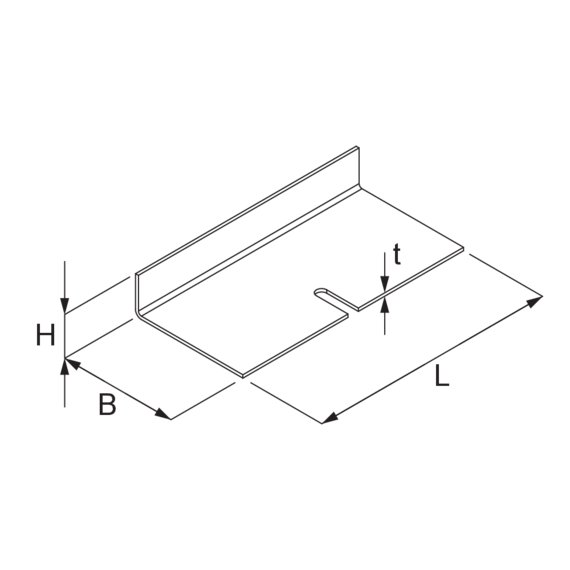

25 mm

73 mm

150 mm

2.00 mm

0.442 kg

More information

steel, batch/hot-dip galvanized

WLHS F
Wide-span beam reinforcement WLHS F

25 mm

73 mm

150 mm

2.00 mm

0.448 kg

More information

Tender texts

Ausschreiben.de

Tender text for this product

Open Link

Heinze.de

Tender text for this product

Open Link
