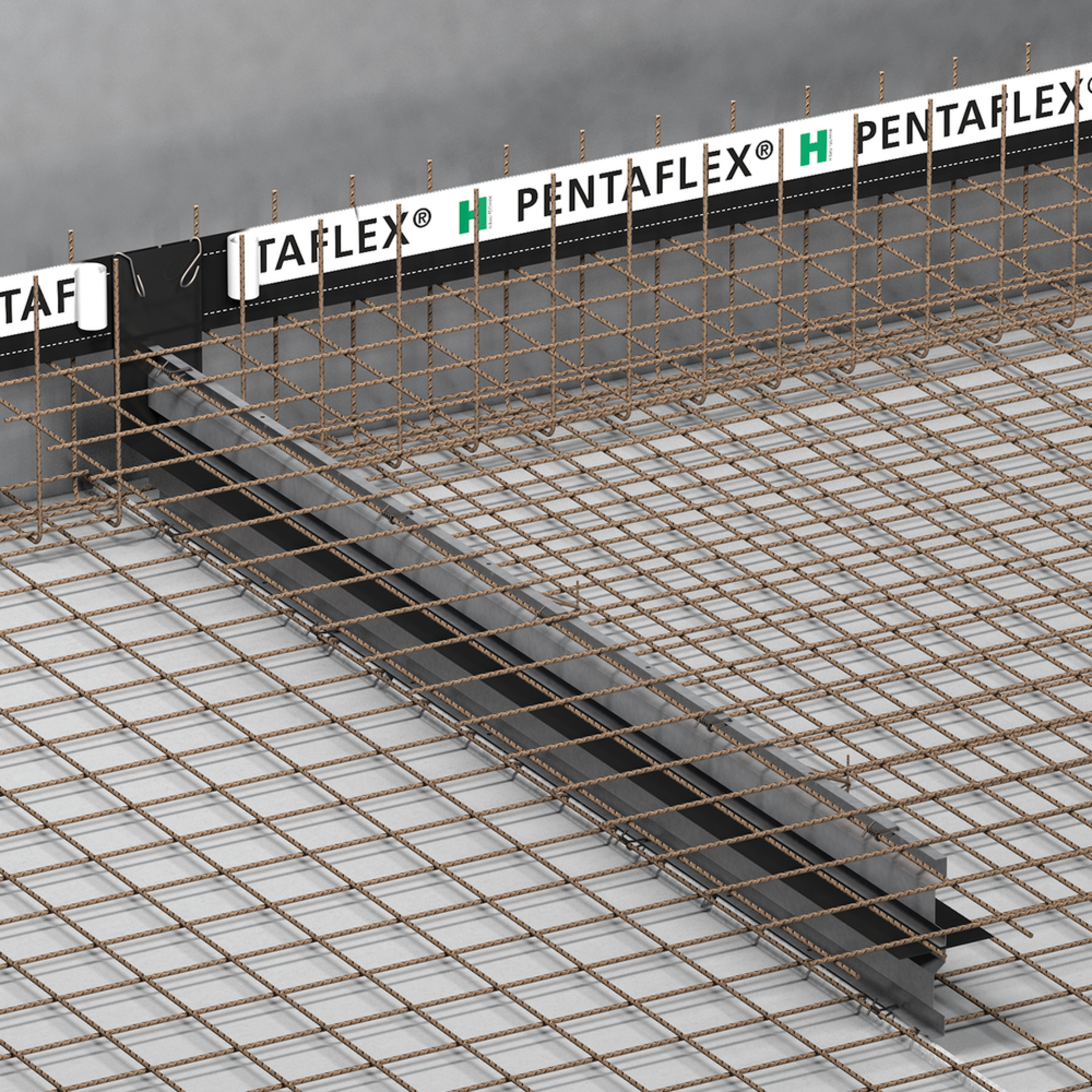

PENTAFLEX® OBS V-S Floor floor panel elements for interlocked joints consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2500 mm as standard. The standard installation dimension is 140 - 1000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
: ETA-15/0003
: P-5120/231/09 MPA-BS
Approvals and Certificates
Approvals and Certificates
- Approved throughout Europe by ETA-15/0003
- German building code test certificate (abP) P-5120/231/09 MPA-BS
Products
| Products | Type | H installation height | L length | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| 110700019963 | Penta OBS-V B 260 300 | 260-300 mm | 2500 mm | 2,960 kg | |
| 110700019961 | Penta OBS V B 140 200 | 140-200 mm | 2500 mm | 2,610 kg | |
| 110700019962 | Penta OBS V B 210 250 | 210-250 mm | 2500 mm | 2,740 kg | |
| 110700019964 | Penta OBS V B 310 350 | 310-350 mm | 2500 mm | 3,340 kg | |
| 110700019965 | Penta OBS V B 360 400 | 360-400 mm | 2500 mm | 3,590 kg | |
| 110700020319 | Penta OBS XV BD 410 500 | 410-500 mm | 2500 mm | 4,080 kg | |
| 110700020331 | Penta OBS XV BD 510 600 | 510-600 mm | 2500 mm | 5,460 kg | |
| 110700020322 | Penta OBS XV BD 610 700 | 610-700 mm | 2500 mm | 5,950 kg | |
| 110700020321 | Penta OBS XV BD 710 800 | 710-800 mm | 2500 mm | 8,900 kg | |
| 110700020323 | Penta OBS XV BD 810 900 | 810-900 mm | 2500 mm | 9,390 kg | |
| 110700020324 | Penta OBS XV BD 910 1000 | 910-1000 mm | 2500 mm | 9,880 kg |
