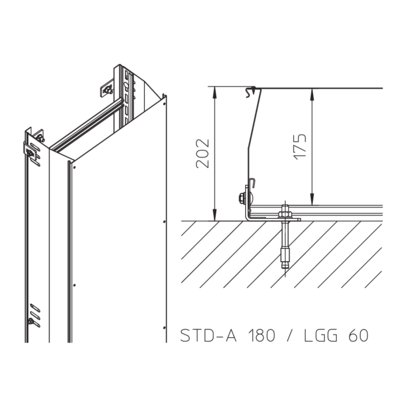

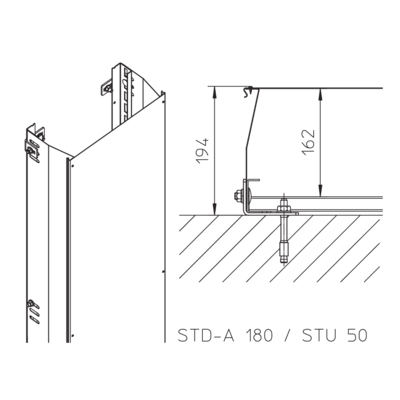

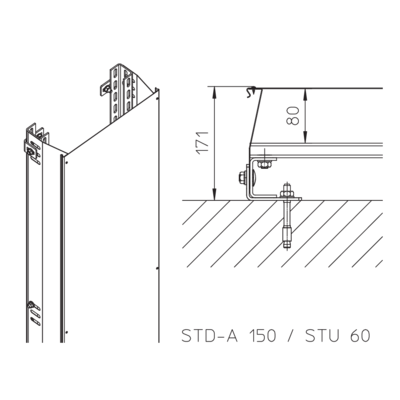

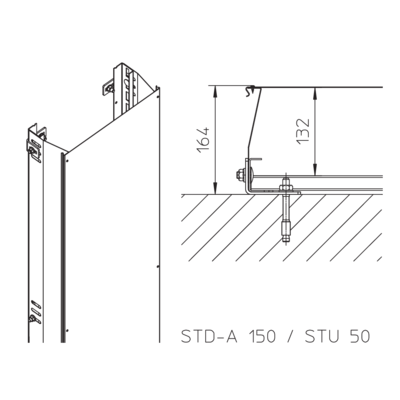

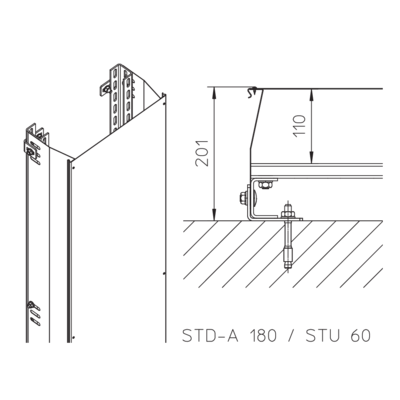

The RD cover is placed on top of cover elevator STD-A. Three KLS 8x16 clamps are required to bolt the STD-A to the LGG 60. Three KLS 10x20 are required to bolt the STD-A to the STU 50 and STU 60. If the cover is sendzimir galvanised, three BS 4.2x13GV drilling bolts must be used to attach the cover to the STD-A. Three BLS 3.9x13E tapping bolts are required in combination with the hot-dip galvanised or stainless steel versions. You will need four STD-A for an RD cover 3000 mm long. Please pay careful attention to the number of fastenings required for each particular case. The fastening accessories are not included in the scope of delivery.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
| Products | H height | L length | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| STD-A 150S | 150 mm | 1500 mm | 1,00 mm | 1,980 kg | |
| STD-A 180S | 180 mm | 1500 mm | 1,00 mm | 2,330 kg |
steel, batch/hot-dip galvanized
| Products | H height | L length | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| STD-A 150F | 150 mm | 1500 mm | 1,00 mm | 2,120 kg | |
| STD-A 180F | 180 mm | 1500 mm | 1,00 mm | 2,500 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
| Products | H height | L length | t material thickness | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| STD-A 150E | 150 mm | 1500 mm | 1,00 mm | 2,010 kg | |
| STD-A 180E | 180 mm | 1500 mm | 1,00 mm | 2,370 kg |
