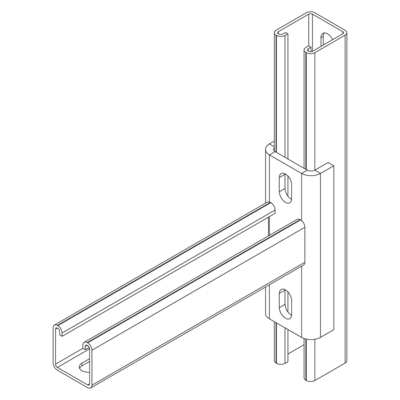

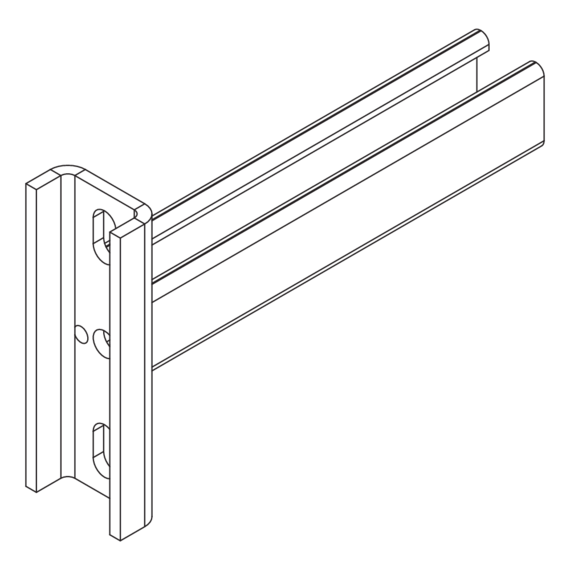

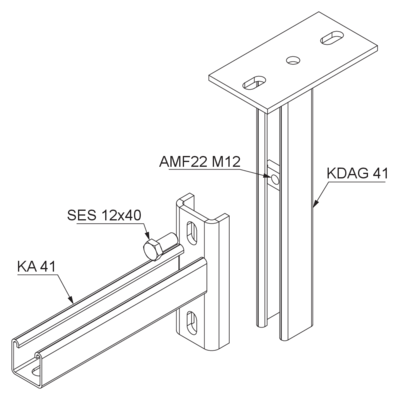

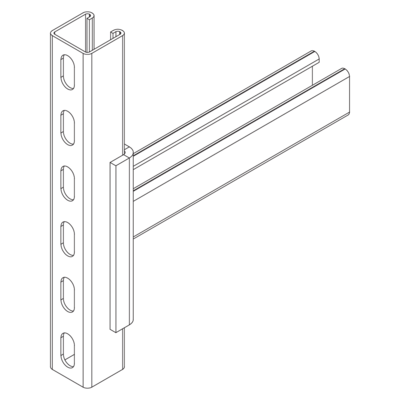

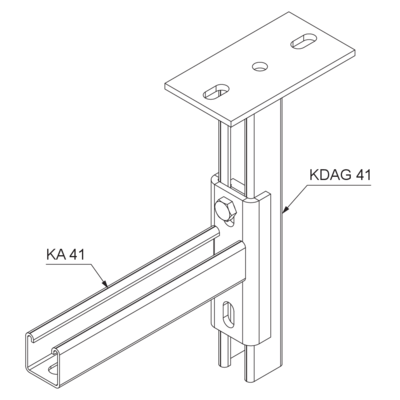

The strut bracket KA 41 is attached to bracket holder KDAG 41 or KHA 41/KHAL 41 and is intended for loads up to 4.3 kN. The system is ideal for suspending mesh cable trays, cable trays and ladders up to 600 mm wide. The bracket is made of hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, batch/hot-dip galvanized

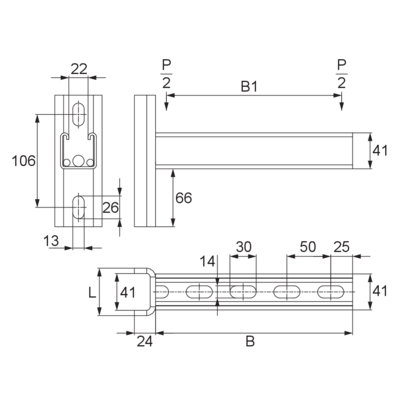

| Products | H height | B width | B1 width 1 | L length | Pmax maximum load | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|---|---|
| KA 41-010F | 150 mm | 125 mm | 100 mm | 54 mm | 4,30 kN | 0,890 kg | |
| KA 41-015F | 150 mm | 175 mm | 150 mm | 54 mm | 4,30 kN | 1,020 kg | |
| KA 41-020F | 150 mm | 225 mm | 200 mm | 54 mm | 4,30 kN | 1,150 kg | |
| KA 41-025F | 150 mm | 275 mm | 250 mm | 54 mm | 4,30 kN | 1,280 kg | |
| KA 41-030F | 150 mm | 325 mm | 300 mm | 54 mm | 4,30 kN | 1,410 kg | |
| KA 41-040F | 150 mm | 425 mm | 400 mm | 54 mm | 4,30 kN | 1,670 kg | |
| KA 41-050F | 150 mm | 525 mm | 500 mm | 54 mm | 4,30 kN | 1,930 kg | |
| KA 41-060F | 150 mm | 625 mm | 600 mm | 54 mm | 4,30 kN | 2,200 kg |
