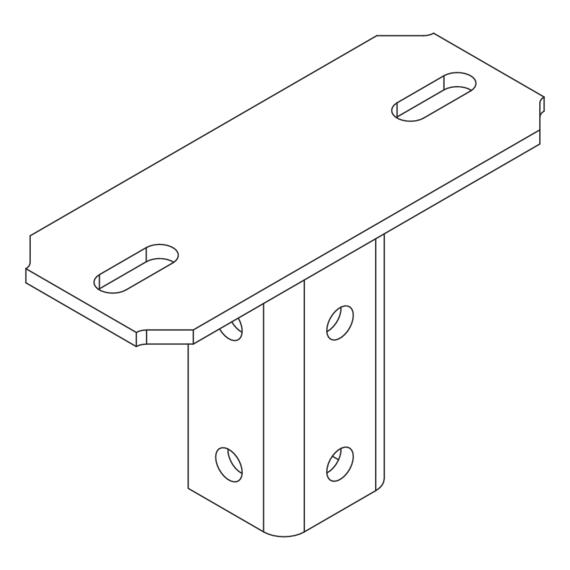

Screw-on head plate, KHA 41

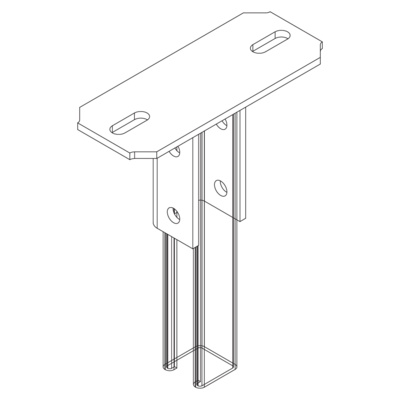

The head plate BGA 41 is used for mounting bracket holder KHA 41 or KHAL 41 on ceilings. It is bolted to the bracket holder and dowelled to the ceiling. It is made of hot-dip galvanised steel.

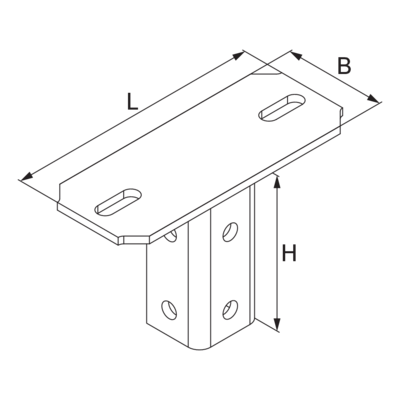

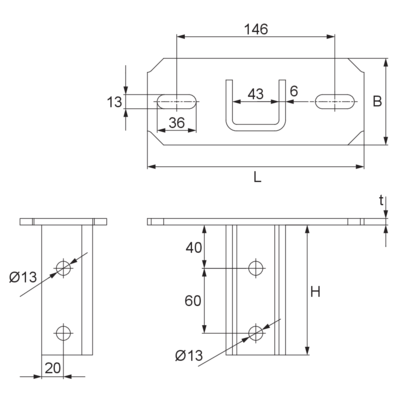

H
height
B
width
L
length
t
material thickness
G
Weight per storage unit
