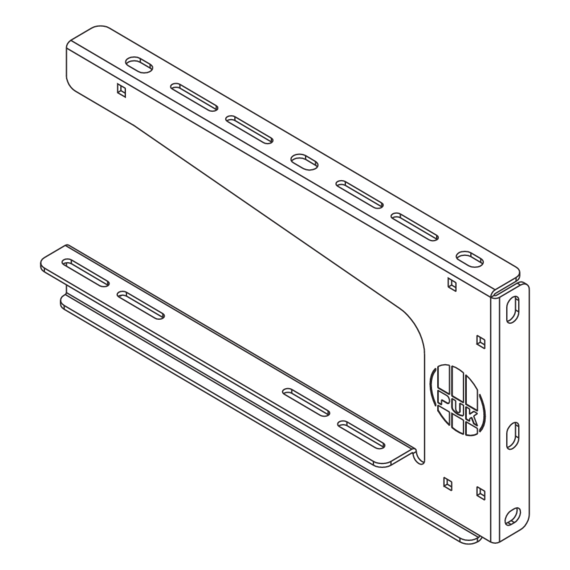

KC Support bracket, C-profile

The support bracket KC with C-profile is used to suspend cable trays and mesh cable trays in widths from 100 to 400 mm or for direct mounting on walls or ceilings. This article is available in sendzimir or hot-dip galvanised steel or stainless steel with material no. 1.4571/1.4404 (V4A).

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, continously hot galvanized/Sendzimir process

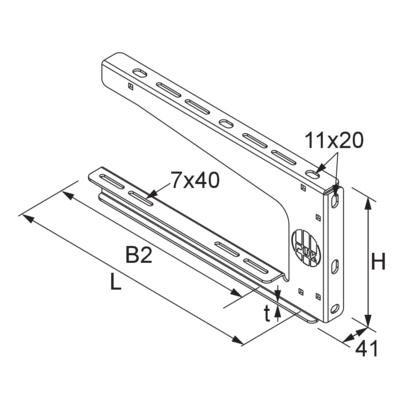

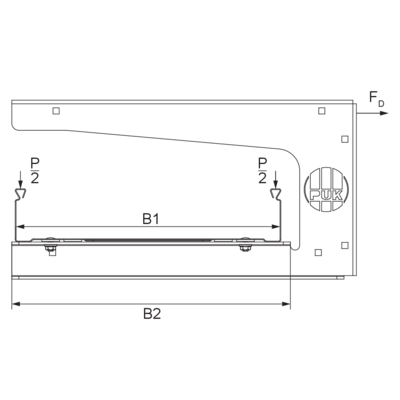

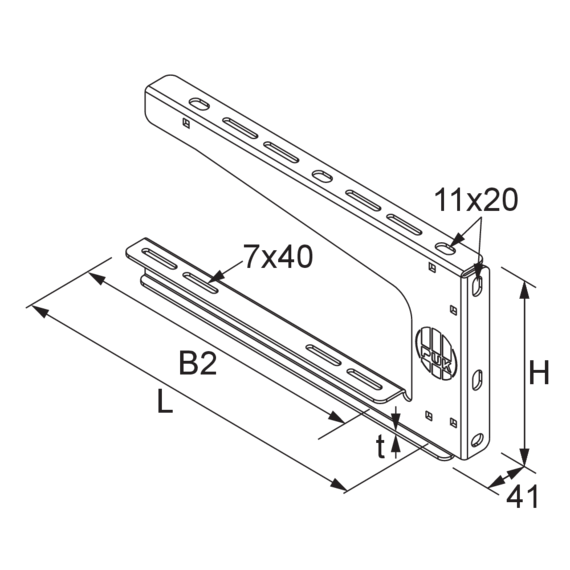

Products	L length	B width	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KC 010S	188 mm	58 mm	100 mm	115 mm	200 mm	1,05 kN	1,25	0,557 kg
KC 020S	288 mm	58 mm	200 mm	215 mm	200 mm	1,05 kN	1,45	0,766 kg
KC 030S	388 mm	58 mm	300 mm	315 mm	200 mm	1,05 kN	1,67	1,512 kg
KC 040S	488 mm	58 mm	400 mm	415 mm	200 mm	1,05 kN	1,9	1,855 kg

steel, batch/hot-dip galvanized

Products	L length	B width	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KC 010F	188 mm	58 mm	100 mm	115 mm	200 mm	1,05 kN	1,25	0,596 kg
KC 020F	288 mm	58 mm	200 mm	215 mm	200 mm	1,05 kN	1,45	0,820 kg
KC 030F	388 mm	58 mm	300 mm	315 mm	200 mm	1,05 kN	1,67	1,618 kg
KC 040F	488 mm	58 mm	400 mm	415 mm	200 mm	1,05 kN	1,90	1,985 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

Products	L length	B width	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KC 010E	188 mm	58 mm	100 mm	115 mm	200 mm	1,05 kN	1,25	0,563 kg
KC 020E	288 mm	58 mm	200 mm	215 mm	200 mm	1,05 kN	1,45	0,774 kg
KC 030E	388 mm	58 mm	300 mm	315 mm	200 mm	1,05 kN	1,67	1,527 kg
KC 040E	488 mm	58 mm	400 mm	415 mm	200 mm	1,05 kN	1,90	1,874 kg

Stainless steel, according to ASTM 316 Ti / AISI 316 L, BS 320S17 / BS 316S11

Products	L length	B width	B1 width 1	B2 width 2	H height	P_max maximum load	F_D/P dowel-to-anchor load	W Weight per storage unit
KC 010E4	188 mm	58 mm	100 mm	115 mm	200 mm	1,05 kN	1,25	0,568 kg
KC 020E4	288 mm	58 mm	200 mm	215 mm	200 mm	1,05 kN	1,45	0,781 kg
KC 030E4	388 mm	58 mm	300 mm	315 mm	200 mm	1,05 kN	1,67	1,542 kg
KC 040E4	488 mm	58 mm	400 mm	415 mm	200 mm	1,05 kN	1,90	1,892 kg
