UGET CEE

Device carrier, CEE socket

UGET CEE components are device carriers from the underfloor system range. They contain a CEE socket and, instead of a mounting box, can be inserted into the corresponding snap-in ladders using the integrated fastening clamps and then snapped into the centre of the installation units. The device carriers are made of sendzimir hot-dip galvanised sheet steel, with the socket housing in light grey and the cover in red. It is advisable to use an angled plug for assembly.

Load requirements according to: DIN EN 50085
Get in touch Download datasheet

Variants

steel, continously hot galvanized/Sendzimir process

Article

H

height

Hmin

minimum installation height

B

width

L

length

Ausführung

G

Weight per storage unit
  • UGET-CEE16 226
    device carrier, made of galvanized
    122 mm
    185 mm
    75 mm
    236 mm
    16 A (3-polig + N + PE)
    0.850 kg
    More information
  • UGET-CEE32 226
    device carrier, made of galvanized
    122 mm
    210 mm
    75 mm
    236 mm
    32 A (3-polig + N + PE)
    0.931 kg
    More information

Details

  • Load requirements according to: DIN EN 50085

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Erklärung

    PDF, 106 KB

    de
    Download

  • EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF, 59 KB

    de en

  • Underfloor Systems - Catalogue

    Catalogue

    PDF, 34 MB

    de en

  • Assembly instruction for device installation cups and installation devices

    Montageanleitung

    PDF, 562 KB

    de en

  • Technical Information Device Sockets and Installation Devices

    Technische Information

    PDF, 14 MB

    de en

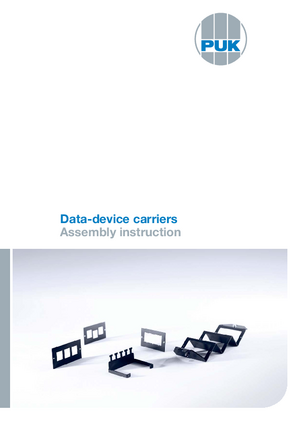

  • Installation Instructions Data-device carriers

    Data-device carriers UFS UGET

    PDF, 290 KB

    de en

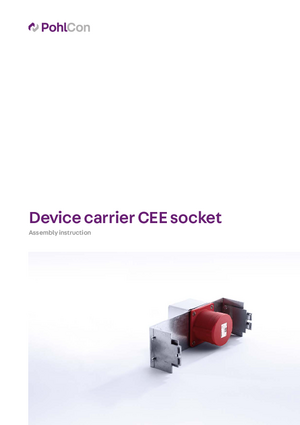

  • Assembly instruction for Device carrier for CEE sockets

    Montageanleitung

    PDF, 221 KB

    de en
