The rungs STUS 50 can also be attached to the vertical ladder afterwards. They can be bolted to the side rails from the inside using BL 6 corner angles. They are suitable for STU 50-3E vertical ladders and are 200 to 1200 mm wide corresponding to the vertical ladder width. They are made of stainless steel. It is not possible to install additional STUS rungs for the vertical ladder variant with SNA nail anchors.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
Stainless steel, according to ASTM 304 / BS 304 S 3

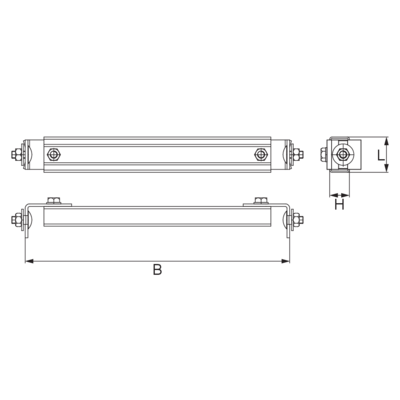

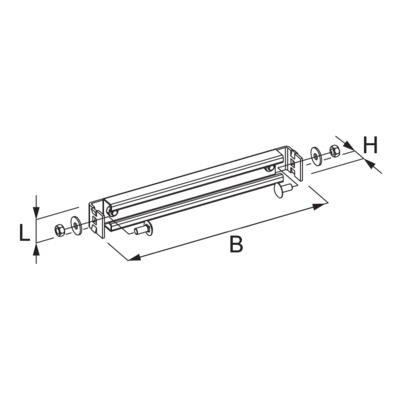

| Products | H height | B width | L length | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| STUS 50-02E | 22 mm | 200 mm | 40 mm | 0,383 kg | ||
| STUS 50-03E | 22 mm | 300 mm | 40 mm | 0,489 kg | ||
| STUS 50-04E | 22 mm | 400 mm | 40 mm | 0,606 kg | ||
| STUS 50-05E | 22 mm | 500 mm | 40 mm | 0,724 kg | ||
| STUS 50-06E | 22 mm | 600 mm | 40 mm | 0,841 kg | ||
| STUS 50-07E | 22 mm | 700 mm | 40 mm | 0,958 kg | ||
| STUS 50-08E | 22 mm | 800 mm | 40 mm | 1,076 kg | ||
| STUS 50-09E | 22 mm | 900 mm | 40 mm | 1,193 kg | ||
| STUS 50-10E | 22 mm | 1000 mm | 40 mm | 1,310 kg | ||
| STUS 50-11E | 22 mm | 1100 mm | 40 mm | 1,428 kg | ||
| STUS 50-12E | 22 mm | 1200 mm | 40 mm | 1,545 kg |
