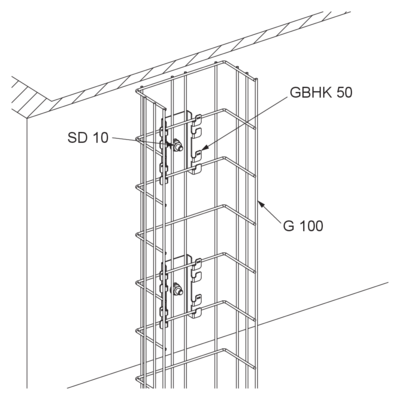

Mesh cable trays G and GI can be mounted vertically on the longitudinal wires of the mesh cable tray base at a short distance from the wall using the spacer bracket GBHK 50. For larger mesh cable tray widths, two spacer brackets are required, arranged next to each other. The spacer bracket GBHK 50 is suitable for a mesh cable tray grid size (wire spacing) of 50/75/100 mm and support spacings of up to 1500 mm. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process
Products | H height | B width | L length | a Mesh cable tray spacing | W Weight per storage unit | bookmark |
---|---|---|---|---|---|---|
GBHK 50S | 125 mm | 94 mm | 21 mm | 50/75/100 mm | 0,150 kg |
steel, batch/hot-dip galvanized
Products | H height | B width | L length | a Mesh cable tray spacing | W Weight per storage unit | bookmark |
---|---|---|---|---|---|---|
GBHK 50F | 125 mm | 94 mm | 21 mm | 50/75/100 mm | 0,161 kg |
Stainless steel, according to ASTM 304 / BS 304 S 3
Products | H height | B width | L length | a Mesh cable tray spacing | W Weight per storage unit | bookmark |
---|---|---|---|---|---|---|
GBHK 50E | 125 mm | 94 mm | 21 mm | 50/75/100 mm | 0,156 kg |
