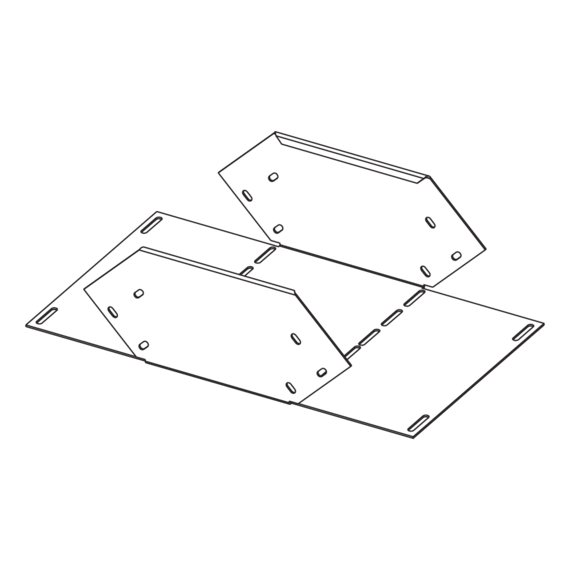

BKS 100

Floor duct riser, height = 100 mm

The floor duct riser BKS 100 with integrated connectors allows the direction of cable routing to be changed vertically by 90° upwards and downwards. It is 100 mm high and 100 to 600 mm wide. It is made of sendzimir hot-dip galvanised steel. The floor duct riser is fitted to the floor duct to be connected using the supplied connectors and clamping screws. The floor bracket must be bent according to its function as a drop section or as a rising bend.

Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

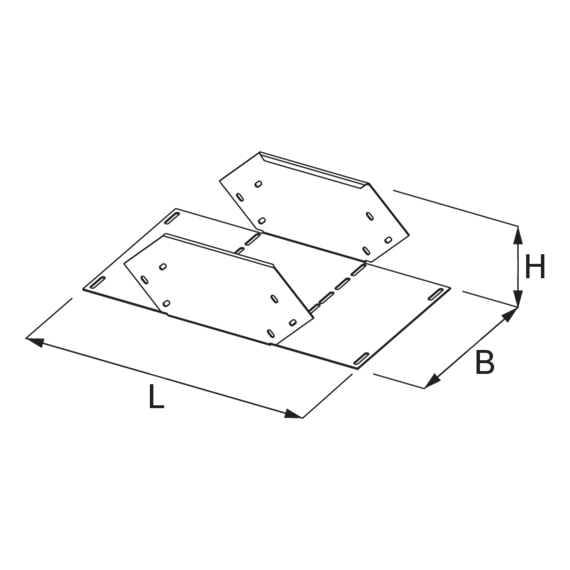

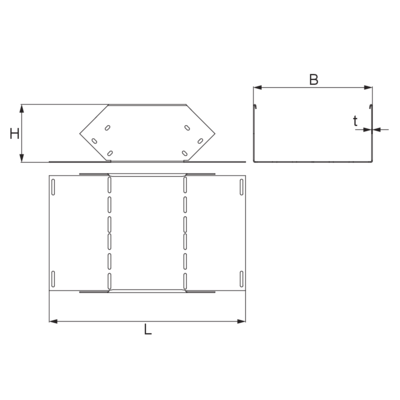

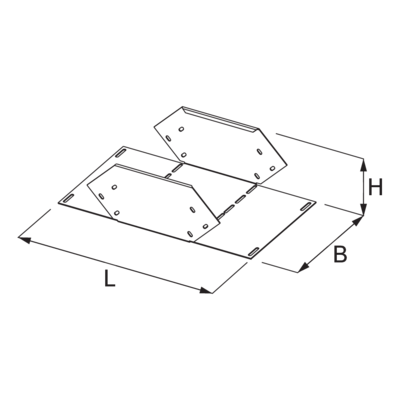

H

Höhe

B

Breite

L

Länge

t

Materialstärke

Richtung

Richtungsänderung

W

Winkel

G

Gewicht je Lagermengeneinheit
  • BKS 100-10S
    Bodenkanal-Steigbogen,
    100 mm
    100 mm
    495 mm
    2.00 mm
    Steigend/Fallend
    90°
    3.623 kg
