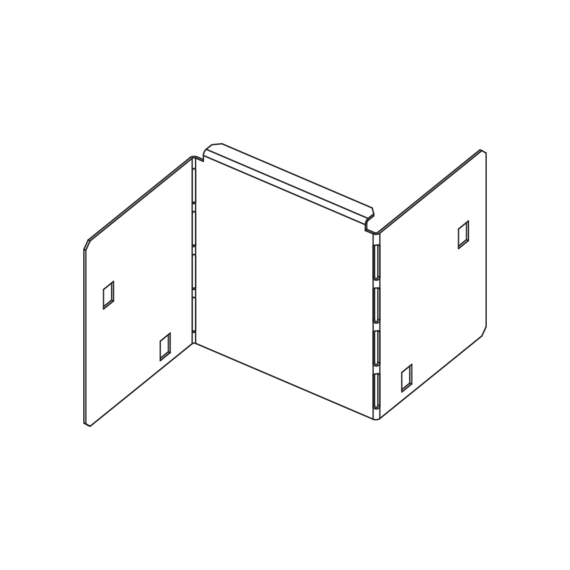

The floor duct end plate BKEB 110 is pushed into the floor duct and bolted to the two connection straps. It forms the flush end of a floor duct and serves as a stop edge for covers. It can also be used for mounting a reducer. The BKEB 110 floor duct end plate is 100 to 600 mm wide corresponding to the floor duct, 110 mm high and is made of sendzimir hot-dip galvanised steel.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
steel, continously hot galvanized/Sendzimir process

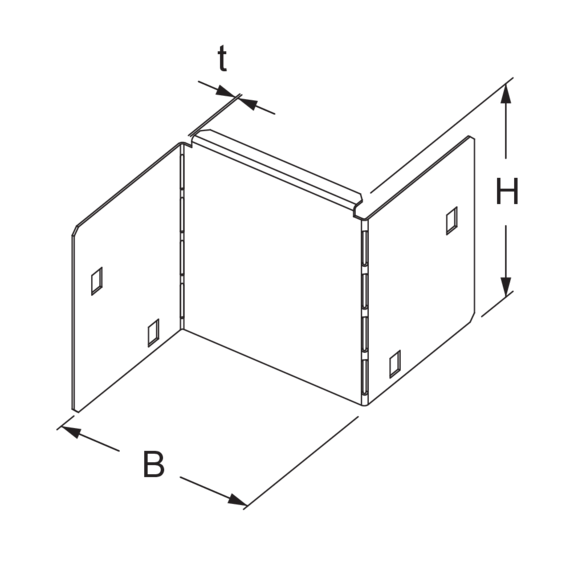

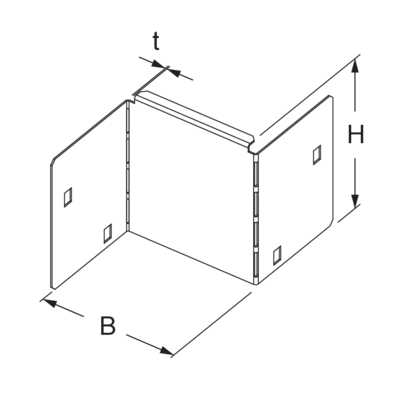

| Products | H height | B width | t material thickness | W Weight per storage unit | incl. show all inclusive accessoires | bookmark |
|---|---|---|---|---|---|---|
| BKEB 110-10S | 105 mm | 100 mm | 1,00 mm | 0,238 kg | ||
| BKEB 110-15S | 105 mm | 150 mm | 1,00 mm | 0,278 kg | ||
| BKEB 110-20S | 105 mm | 200 mm | 1,00 mm | 0,328 kg | ||
| BKEB 110-30S | 105 mm | 300 mm | 1,00 mm | 0,418 kg | ||
| BKEB 110-40S | 105 mm | 400 mm | 1,00 mm | 0,508 kg | ||
| BKEB 110-50S | 105 mm | 500 mm | 1,00 mm | 0,598 kg | ||
| BKEB 110-60S | 105 mm | 600 mm | 1,00 mm | 0,698 kg |
