The cable tray reducer covers RRDR with turning bolts are suitable for RR cable tray reducers and protect them from dirt and moisture. They snap into place and interlock with the side rails. Just like the formed parts, the covers RRDR are also available in three designs: centre, left and right. Specify the desired design and width when ordering. If the covers are to be used outdoors, additional securing brackets to protect against wind are required. In this case, the twist lock alone is not sufficient as a retaining element. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Advantages
Advantages
- Protects the cable tray reducer RR from external influences
- Easy assembly: snap the cover into place on the cable tray reducer
- Secured additionally by twist lock
Products

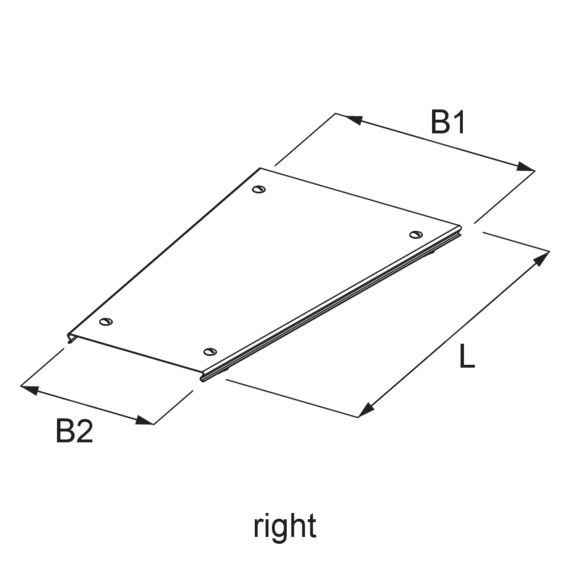

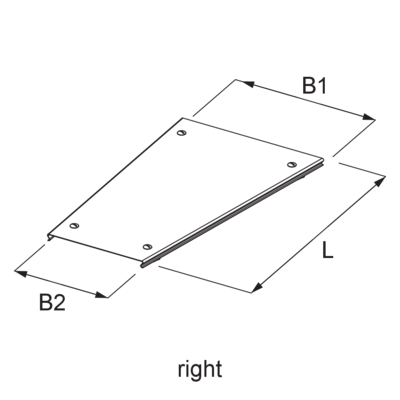

| Products | L length | B1 width 1 | B2 width 2 | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| RRDR 20S | 500 mm | 206 mm | 106 mm | 0,620 kg | |
| RRDR 30S | 500 mm | 306 mm | 206 mm | 1,190 kg | |
| RRDR 40S | 500 mm | 406 mm | 306 mm | 1,580 kg | |
| RRDR 50S | 500 mm | 506 mm | 406 mm | 2,450 kg | |
| RRDR 60S | 500 mm | 606 mm | 506 mm | 2,930 kg |
| Products | L length | B1 width 1 | B2 width 2 | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| RRDR 20F | 500 mm | 206 mm | 106 mm | 0,680 kg | |
| RRDR 30F | 500 mm | 306 mm | 206 mm | 1,310 kg | |
| RRDR 40F | 500 mm | 406 mm | 306 mm | 1,740 kg | |
| RRDR 50F | 500 mm | 506 mm | 406 mm | 2,700 kg | |
| RRDR 60F | 500 mm | 606 mm | 506 mm | 3,240 kg |
| Products | L length | B1 width 1 | B2 width 2 | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| RRDR 20E | 500 mm | 206 mm | 106 mm | 0,620 kg | |
| RRDR 30E | 500 mm | 306 mm | 206 mm | 1,190 kg | |
| RRDR 40E | 500 mm | 406 mm | 306 mm | 1,580 kg | |
| RRDR 50E | 500 mm | 506 mm | 406 mm | 2,450 kg | |
| RRDR 60E | 500 mm | 606 mm | 506 mm | 2,930 kg |
