STU-BS 50 Vertical ladder, isosceles U profile, maintenance of function

The requirements of the General Building Code Test Certificate (AbP) and the Expert Report apply.

data sheet

Tender text

You can find the appropriate tender text for this product on these portals:

Request a callback now

Products

steel, batch/hot-dip galvanized

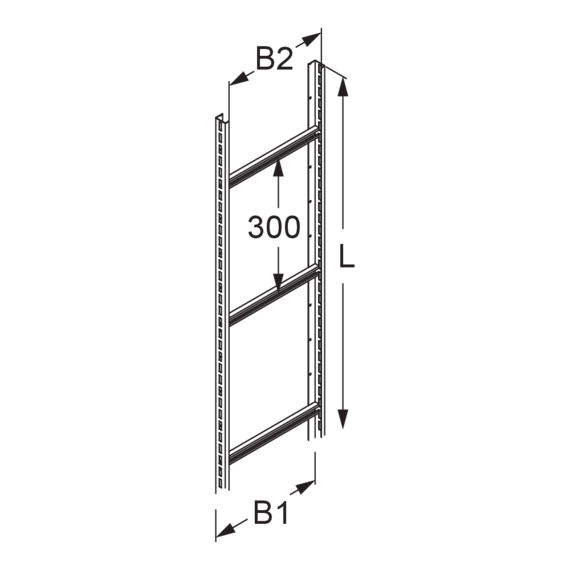

Products	L length	B1 width 1	B2 width 2	H height	W Weight per storage unit
STU-BS 50-02-3F	3000 mm	210 mm	172 mm	50 mm	11,820 kg
STU-BS 50-03-3F	3000 mm	300 mm	262 mm	50 mm	12,910 kg
STU-BS 50-04-3F	3000 mm	400 mm	362 mm	50 mm	14,210 kg
STU-BS 50-05-3F	3000 mm	500 mm	462 mm	50 mm	15,680 kg
STU-BS 50-06-3F	3000 mm	600 mm	562 mm	50 mm	16,660 kg

steel, continously hot galvanized/Sendzimir process

Products	L length	B1 width 1	B2 width 2	H height	W Weight per storage unit
STU-BS 50-02-3S	3000 mm	210 mm	172 mm	50 mm	10,400 kg
STU-BS 50-03-3S	3000 mm	300 mm	262 mm	50 mm	11,880 kg
STU-BS 50-04-3S	3000 mm	400 mm	362 mm	50 mm	13,010 kg
STU-BS 50-05-3S	3000 mm	500 mm	462 mm	50 mm	14,100 kg
STU-BS 50-06-3S	3000 mm	600 mm	562 mm	50 mm	15,370 kg

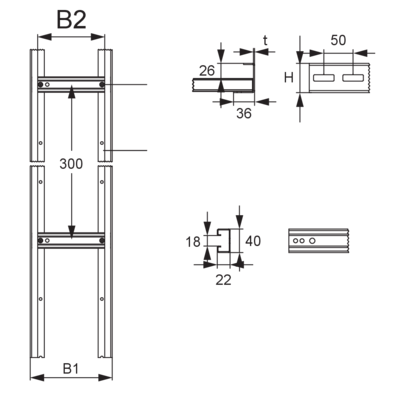

Detail and application images

Accessories

LGV 50

Cable ladder connector, height = 50 mm

BL 4

Corner angle, LGG 60/STU-BS 50. maintenance of function

Cable clamp for fastening to C profile rails, maintenance of function

BGUQ 50

Bolted head plate turned 90°, STU 50

BGUQ-BS 50

Head/base plate, STU 50, maintenance of function
