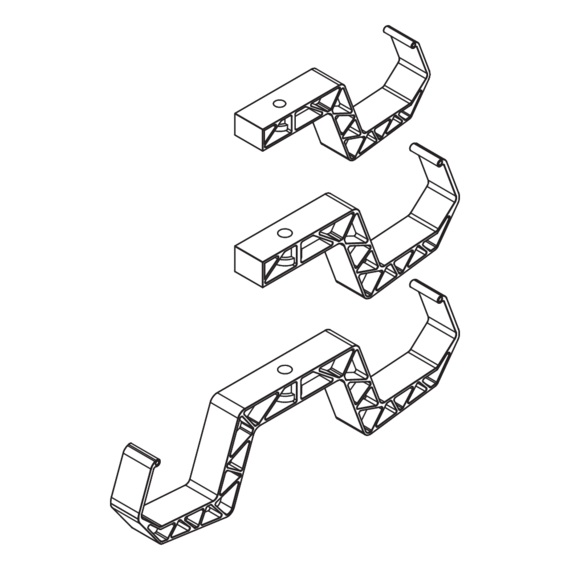

The multiple cable holder SHK K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on ceilings. It is 45 to 58 mm high making it suitable for applications with limited installation height. SHK 10 and 20 are one-sided multiple cable holders. SHK 40 is a two-sided multiple cable holder. The fastening element is made of halogen-free and silicone-free polyamide and is flame-retardant up to 750°C according to glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The multiple cable holder holds 10 to 40 cables. This information relates to NYM cable (3x1.5 mm²).
data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
polyamide

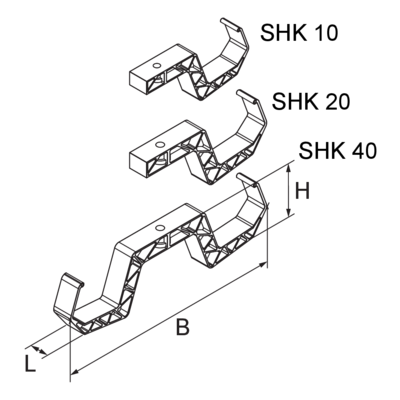

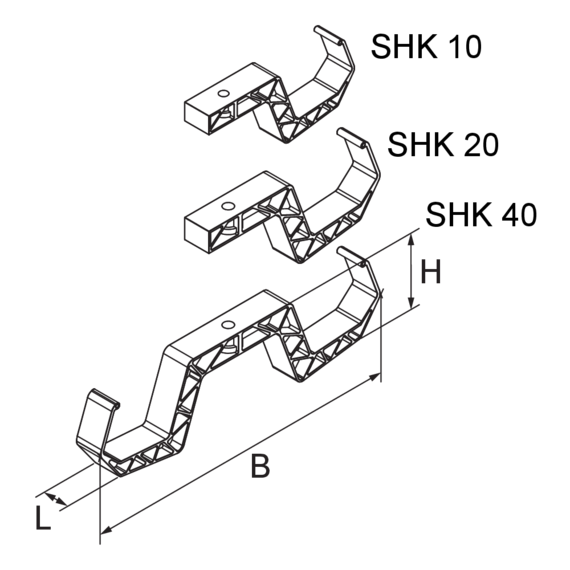

| Products | H height | B width | L length | cables max. number of cables | Tmax Test temperature | W Weight per storage unit | bookmark | |
|---|---|---|---|---|---|---|---|---|
| SHK 10 K | 45 mm | 112 mm | 19 mm | RAL 7035 | 10 | 750 °C | 0,023 kg | |
| SHK 20 K | 58 mm | 128 mm | 19 mm | RAL 7035 | 20 | 750 °C | 0,027 kg | |
| SHK 40 K | 58 mm | 216 mm | 19 mm | RAL 7035 | 40 | 750 °C | 0,049 kg |
