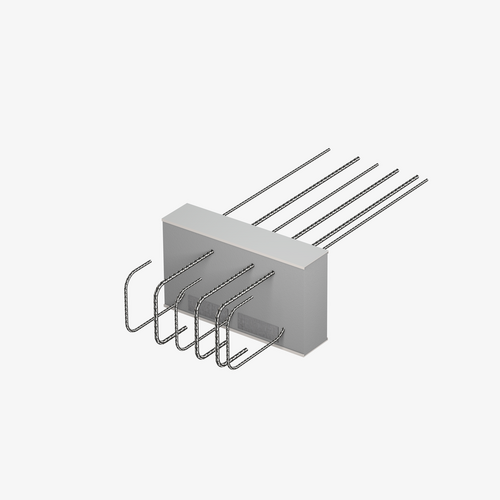

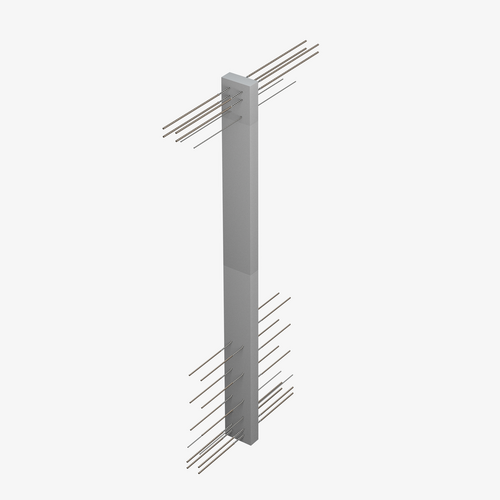

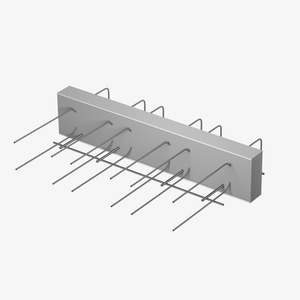

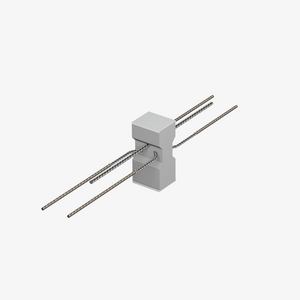

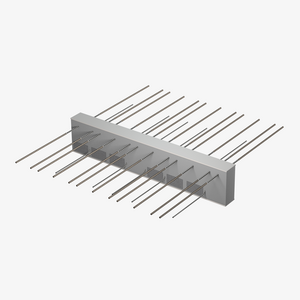

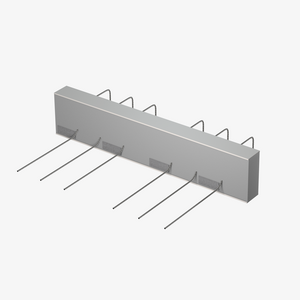

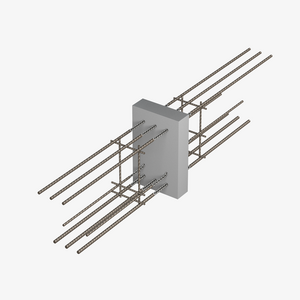

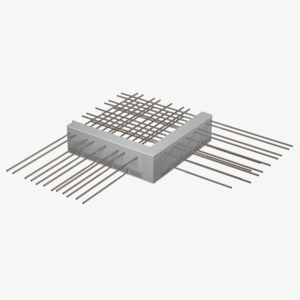

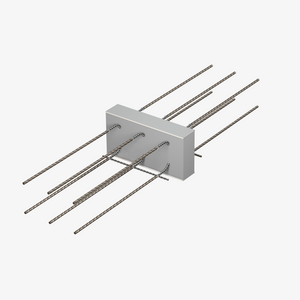

The thermally insulating H-BAU Technik ISOPRO® concrete-to-concrete connection elements reliably create a frictional connection between external concrete components and internal concrete components. The load is transferred across the joint by tie bars, shear bars and a compression component. Depending on the ISOPRO® type, the latter is designed as a thrust bearing made of special concrete (IP elements) or as a steel thrust rod (IPT elements). The ISOPRO® insulation is 80 mm thick to guarantee reliable thermal separation of the reinforced concrete components. The usability of the elements is verified by ETA-17/0466 in connection with the general type approval no. Z-15.7-354 and the general technical approval no. Z-15.7-243.
Advantages
- Simple, fast, cost-effective
- Versatile product range with types for any requirement
- Special solutions for unusual projects
- Prevents thermal bridges and consequently mould and moisture damage
- Reduces heating costs
- Reduces heat flow through reinforcing bar framework to a minimum
Technical Details
- National technical approval and type-tested in line with EC2

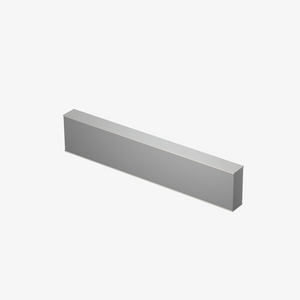

- 80 mm insulating body: made of NEOPOR® with λ = 0.031 W/mK
- Reinforcement bars: made of B500B and B500NR
- Thrust bearing: made of high-strength special concrete
