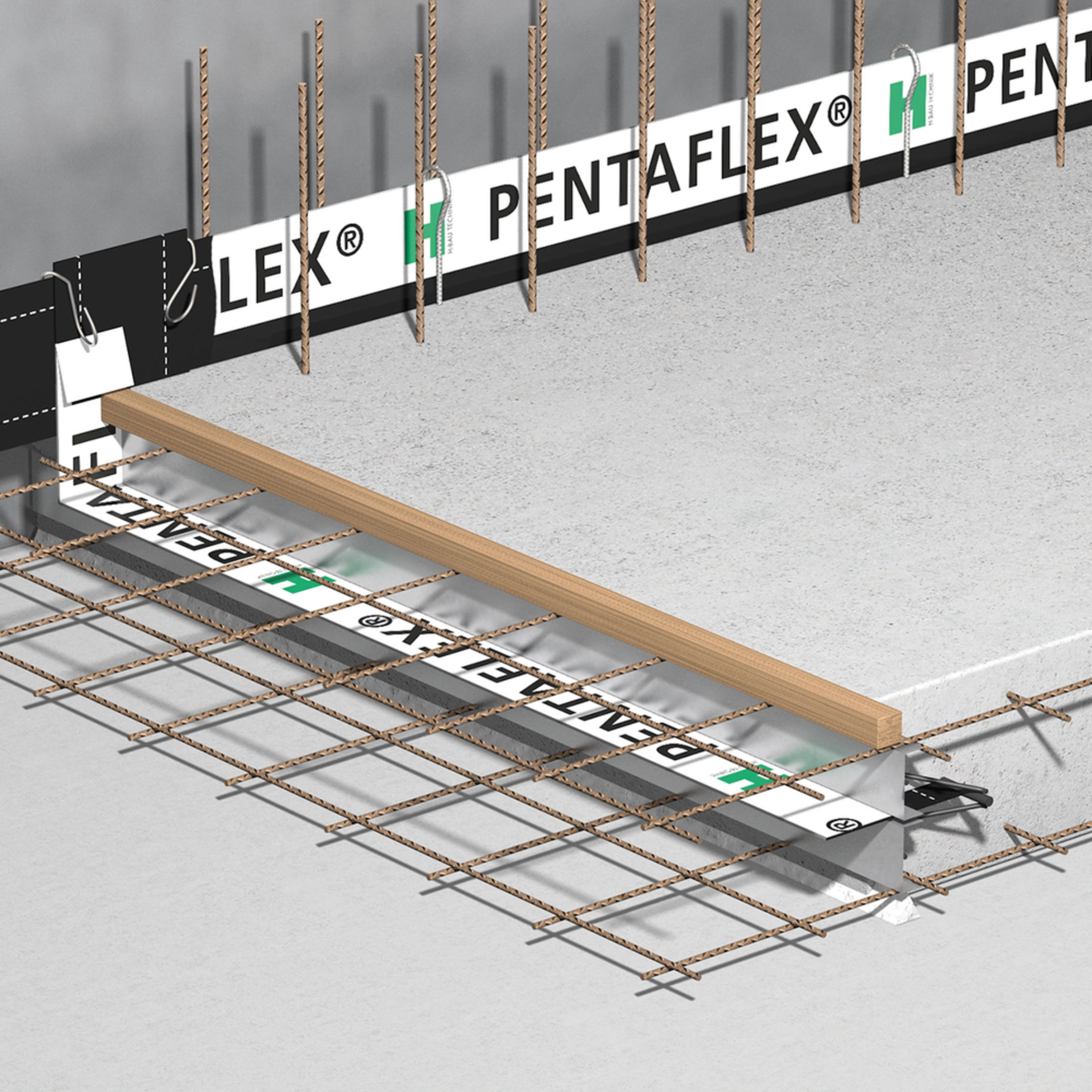

PENTAFLEX® OBS G-S Floor floor panel elements for smooth joints (according to EC 2) consist of PENTAFLEX KB® joint sheets with wings made of galvanised sheet steel. They come in lengths of 2500 mm as standard. The standard installation dimension is 80 - 1000 mm.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
: ETA-15/0003
: P-5120/231/09 MPA-BS
Approvals and Certificates
Approvals and Certificates
- Approved throughout Europe by ETA-15/0003
- German building code test certificate (abP) P-5120/231/09 MPA-BS
Products
| Products | Type | H installation height | L length | W Weight per storage unit | bookmark |
|---|---|---|---|---|---|
| 110700020328 | Penta OBS X BD 80 200 | 80-200 mm | 2500 mm | 2,380 kg | |
| 110700020330 | Penta OBS X BD 210 250 | 210-250 mm | 2500 mm | 2,600 kg | |
| 110700020325 | Penta OBS X BD 260 300 | 260-300 mm | 2500 mm | 2,820 kg | |
| 110700020326 | Penta OBS X BD 310 350 | 310-350 mm | 2500 mm | 3,260 kg | |
| 110700020327 | Penta OBS X BD 360 400 | 360-400 mm | 2500 mm | 3,500 kg | |
| 110700020332 | Penta OBS X BD 410 500 | 410-500 mm | 2500 mm | 3,990 kg | |
| 110700020329 | Penta OBS X BD 510 600 | 510-600 mm | 2500 mm | 4,920 kg | |
| 110700020316 | Penta OBS X BD 610 700 | 610-700 mm | 2500 mm | 5,410 kg | |
| 110700020320 | Penta OBS X BD 710 800 | 710-800 mm | 2500 mm | 9,870 kg | |
| 110700020317 | Penta OBS X BD 810 900 | 810-900 mm | 2500 mm | 10,390 kg | |
| 110700020318 | Penta OBS X BD 910 1000 | 910-1000 mm | 2500 mm | 10,920 kg |
