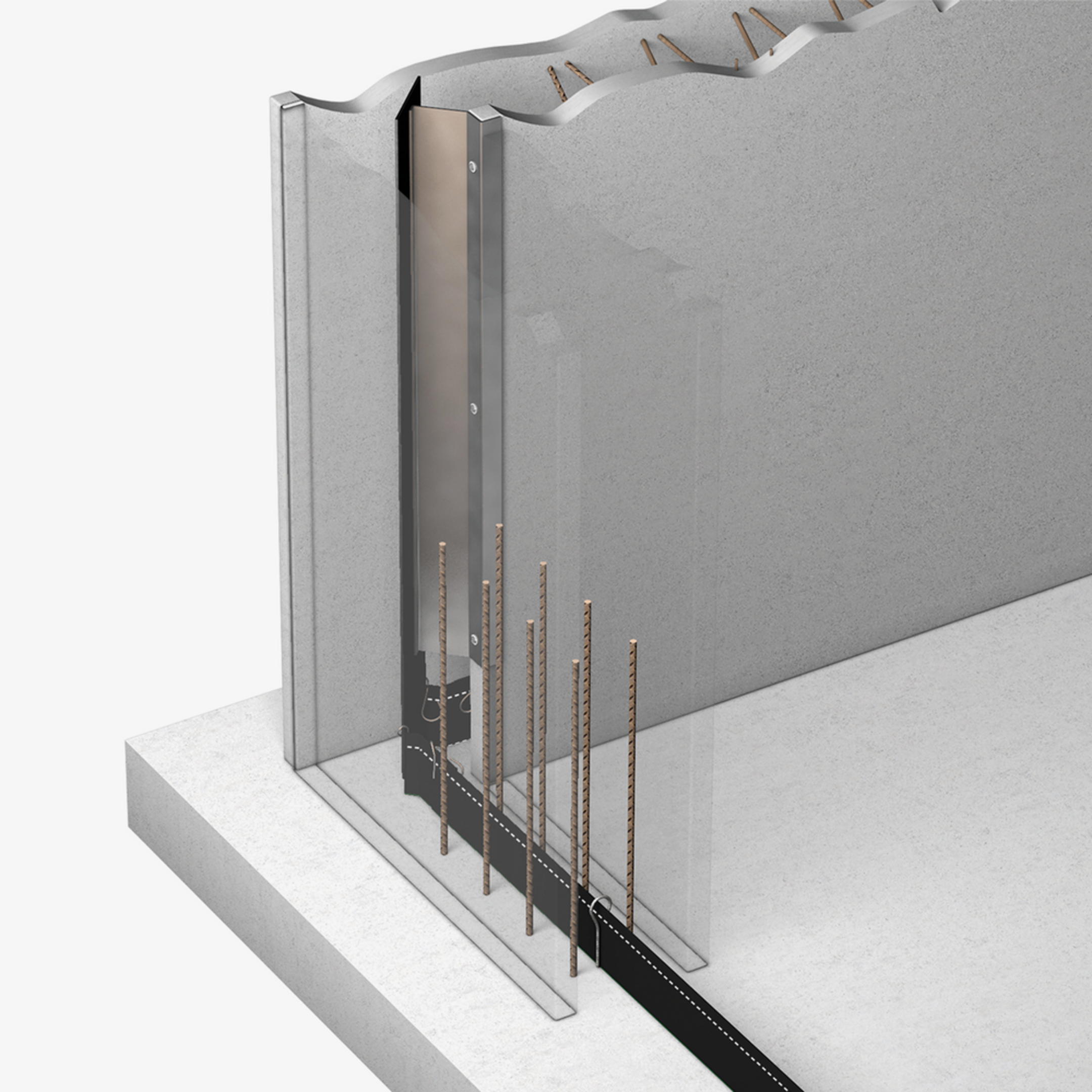

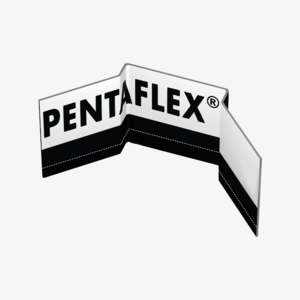

PENTAFLEX® FTS-Corner crack control elements for corner joints consist of PENTAFLEX KB® joint sheets with a wing made of galvanised sheet steel. They come in lengths of 2.50, 2.75 and 3.00 m as standard. The PENTAFLEX® FTS joint element is available for walls of any thickness. Standard elements for 240 - 250 or 300 mm thick walls are kept in stock. The elements are supplied ready for installation. When using PENTAFLEX® FTS-Corner elements, PENTAFLEX KB® corner elements must be installed in the floor slab.
data sheetTender text
You can find the appropriate tender text for this product on these portals:
: ETA-15/0003
: P-5120/231/09 MPA-BS
Approvals and Certificates
Approvals and Certificates
- Approved throughout Europe by ETA-15/0003
- German building code test certificate (abP) P-5120/231/09 MPA-BS
Products
| Products | Type | L length | W Weight per storage unit | bookmark | |
|---|---|---|---|---|---|
| 110600004396 | Penta FTS Eck 240 280 2.5 | 2500 mm | 240-280 mm | 2,000 kg | |
| 110600004397 | Penta FTS Eck 240 280 2.75 | 2750 mm | 240-280 mm | 2,000 kg | |
| 110600004398 | Penta FTS Eck 240 280 3.0 | 3000 mm | 240-280 mm | 2,000 kg | |
| 110600004399 | Penta FTS Eck 290 340 2.5 | 2500 mm | 290-340 mm | 2,150 kg | |
| 110600004400 | Penta FTS Eck 290 340 2.75 | 2750 mm | 290-340 mm | 2,150 kg | |
| 110600004401 | Penta FTS Eck 290 340 3.0 | 3000 mm | 290-340 mm | 2,150 kg | |
| 110600004402 | Penta FTS Eck 350 400 2.5 | 2500 mm | 350-400 mm | 2,300 kg | |
| 110600004403 | Penta FTS Eck 350 400 2.75 | 2750 mm | 350-400 mm | 2,300 kg | |
| 110600004404 | Penta FTS Eck 350 400 3.0 | 3000 mm | 350-400 mm | 2,300 kg |
