The connection straps JVB-V are designed for connections that transmit transverse loads, e.g. for frontal column/wall connections. They are available in three different lengths and are made of either galvanised steel or stainless steel.

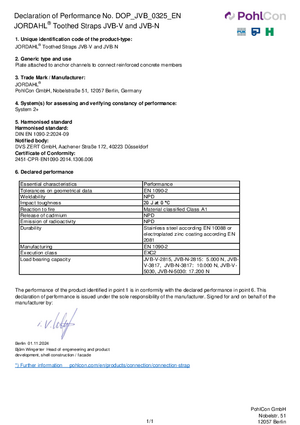

data sheetTender text
You can find the appropriate tender text for this product on these portals:
Products
| Products | H height | B width | L length | L1 length 1 | L2 length 2 | weight | bookmark |
|---|---|---|---|---|---|---|---|
| JVB-V-5030-152-GV | 6 mm | 100 mm | 415 mm | 22 mm | 392 mm | 1,770 kg | |
| JVB-V-5030-152-L4 | 6 mm | 100 mm | 415 mm | 22 mm | 392 mm | 1,768 kg | |
| JVB-V-2815-108-GV | 6 mm | 50 mm | 283 mm | 10 mm | 273 mm | 0,616 kg | |
| JVB-V-2815-108-L4 | 6 mm | 50 mm | 283 mm | 10 mm | 273 mm | 0,608 kg | |
| JVB-V-3817-122-L4 | 6 mm | 75 mm | 340 mm | 12 mm | 327 mm | 1,095 kg | |
| JVB-V-3817-122-GV | 6 mm | 75 mm | 340 mm | 12 mm | 327 mm | 1,069 kg |
