BKVAADR

Floor duct add-on tee cover, variable with turnbuckles

The BKVAADR variable floor duct attachment branch cover is placed on top of the BKVAA floor duct attachment branch and protects cables and supply lines from flying sparks and other mechanical effects. It is 100 to 600 mm wide corresponding to the attachment branch. The floor duct attachment branch cover is made of sendzimir hot-dip galvanised steel and is not embossed. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. They come with pre-assembled turning bolts.

Load requirements according to: EN 50085-2-2
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

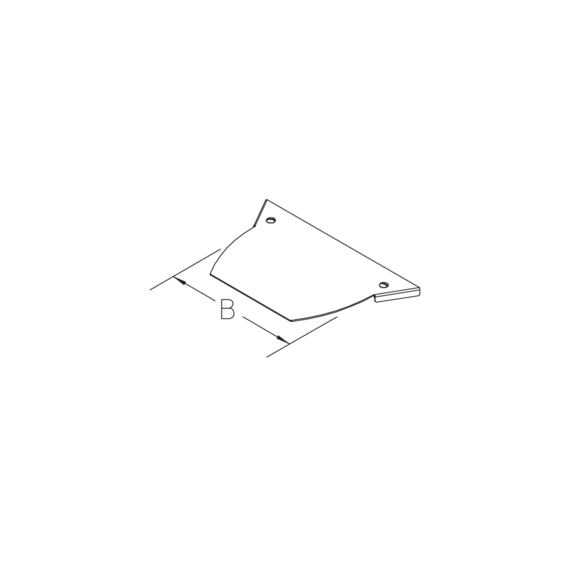

B

width

t

material thickness

Pmax

maximum load

G

Weight per storage unit

  • BKVAADR 10S
    Floor duct attachment branch cover, variable,
    width
    100 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    0.350 kg
    More information
  • BKVAADR 15S
    Floor duct attachment branch cover, variable,
    width
    150 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    0.490 kg
    More information
  • BKVAADR 20S
    Floor duct attachment branch cover, variable,
    width
    200 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    0.740 kg
    More information
  • BKVAADR 30S
    Floor duct attachment branch cover, variable,
    width
    300 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    1.220 kg
    More information
  • BKVAADR 40S
    Floor duct attachment branch cover, variable,
    width
    400 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    1.930 kg
    More information
  • BKVAADR 50S
    Floor duct attachment branch cover, variable,
    width
    500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    2.820 kg
    More information
  • BKVAADR 60S
    Floor duct attachment branch cover, variable,
    width
    600 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Weight per storage unit
    3.890 kg
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Loadable up to 5 kN
  • Easy assembly

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link
