BKSDR-RHP

Floor duct riser cover with anti-slip embossing

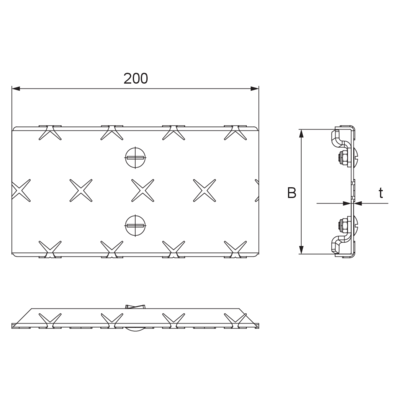

The BKSDR-RHP floor duct riser cover is placed on top of the BKS floor duct riser and protects cables and supply lines from flying sparks and other mechanical effects. It is 100 to 600 mm wide corresponding to the riser. The floor duct riser cover is made of sendzimir hot-dip galvanised steel with slip resistance class R12. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. They come with pre-assembled turning bolts.

Load requirements according to: EN 50085-2-2
Get in touch Download datasheet

Variants

Stahl, band-/sendzimirverzinkt

Article

B

t

Pmax

Richtung

W

G

  • BKSDR-RHP 10S
    Bodenkanal-Steigbogen-Deckel,
    100 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    0.417 kg
    More information
  • BKSDR-RHP 15S
    Bodenkanal-Steigbogen-Deckel,
    150 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    0.596 kg
    More information
  • BKSDR-RHP 20S
    Bodenkanal-Steigbogen-Deckel,
    200 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    0.753 kg
    More information
  • BKSDR-RHP 30S
    Bodenkanal-Steigbogen-Deckel,
    300 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    1.067 kg
    More information
  • BKSDR-RHP 40S
    Bodenkanal-Steigbogen-Deckel,
    400 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    1.381 kg
    More information
  • BKSDR-RHP 50S
    Bodenkanal-Steigbogen-Deckel,
    500 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    1.695 kg
    More information
  • BKSDR-RHP 60S
    Bodenkanal-Steigbogen-Deckel,
    600 mm
    2.00 mm
    5.00 kN
    Steigend/Fallend
    90°
    2.009 kg
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Loadable up to 5 kN
  • Non-slip embossing R12
  • Easy assembly

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

  • Price list Building extension 2025

    Valid from February 1st, 2025, updated version from 27/01/2025.

    PDF, 46 MB

    de en

  • BK Floor Duct - Technical Information

    Technische Information

    PDF, 6 MB

    de en

  • Floor ducts - Assembly instructions

    Montageanleitung

    PDF, 2 MB

    de en

BIM- and CAD-Data

  • BIM for BK floor ducts

    BIM for BK floor ducts

    BIM data

    ZIP, 6 MB

    de en

Included accessories
